9 Best Professional OBD2 Scanners in 2026: Full Reviews

Professional OBD2 scanners are a different category from consumer code readers. The tools in this range perform bidirectional component testing, access proprietary manufacturer protocols, and in many cases program or recode ECUs. The gap between a $30 code reader and a $700 professional scanner is not a price difference. It is a fundamental difference in diagnostic depth that determines whether a problem gets diagnosed or guessed at.

Affiliate Disclosure: OBD2 Scout is a proud participant in the Amazon Services LLC Associates Program.

I evaluated 9 professional OBD2 scanners covering entry-level shop tablets in the $700 to $900 range, mid-range professional platforms up to $1,700, and top-tier diagnostic systems reaching $3,000 or more. Each was assessed on bidirectional capability, ECU coding depth, J2534 pass-thru support, DoIP readiness, service function count, and real-world shop usability.

Two distinctions are worth understanding before buying in this category. First, bidirectional control and ECU coding are not the same thing. Bidirectional lets you command components to test them. ECU coding lets you read and write control unit parameters, which is a different and higher-risk operation requiring proper software and vehicle data. Second, J2534 pass-thru is needed for OEM-level ECU flashing. Not every scanner that claims J2534 support handles all J2534 protocols fully. For vehicles from 2020 onward, DoIP and CAN-FD support determines whether you can access certain modules at all. The Ford Maverick is one example of a platform where this matters: my Maverick scanner picks show which professional tools provide full CAN-FD module access on the compact hybrid truck.

My Recommended Top 3 Best-Buys

9 Best Professional OBD2 Scanners in 2026

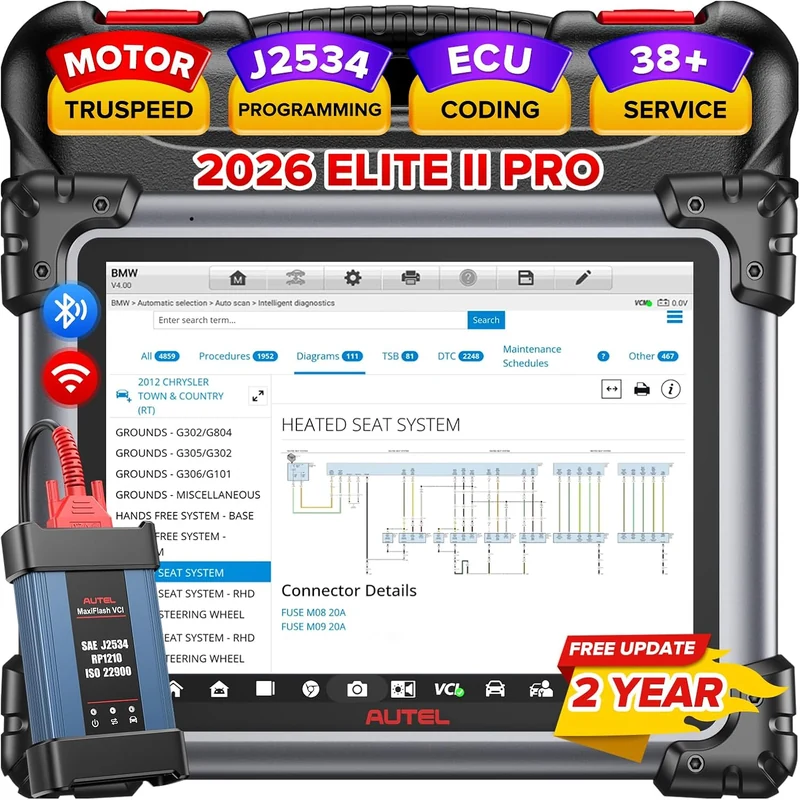

1. Autel MaxiSys Elite II Pro: Best Overall Professional OBD2 Scanner

• Full J2534 ECU pass-thru programming with DoIP and CAN-FD support
• Bidirectional component testing across 200,000+ vehicle combinations
• 36+ service functions and Autel’s MaxiFlash diagnostic link connector

Overview

The Autel MaxiSys Elite II Pro is the most capable professional OBD2 scanner in Autel’s lineup that stays below the $3,000 threshold. It covers every level of diagnostic work a busy independent shop or dealership-adjacent technician needs: full-system bidirectional control, ECU coding across supported makes, complete J2534 pass-thru ECU programming, and native DoIP and CAN-FD support for vehicles from 2020 onward. The 12.9-inch octa-core Android 10 tablet screen is large enough to work with comfortably without a separate monitor. Among professional scanners at this price point, nothing else offers this combination of depth and breadth.

Diagnostic Features and Capabilities

The Elite II Pro delivers full-system bidirectional control, which means you can command individual components to activate and verify response without disassembly. ECU coding covers BMW, Mercedes-Benz, Volkswagen Group, and other supported makes, allowing parameter adjustments like variant coding and adaptations. J2534 pass-thru programming is a full implementation that works with OEM software for reflashing ECUs, ADAS module calibration via third-party tools, and other applications that require a J2534-compliant interface. DoIP support via the MaxiFlash VCI unit covers Ethernet-based diagnostics on 2020 and newer vehicles. The service function library includes over 36 procedures covering oil reset, EPB, BMS, DPF, injector coding, SAS, throttle reset, ABS bleeding, TPMS relearn, gearbox adaptation, and more.

Vehicle Compatibility

The Elite II Pro covers over 80 vehicle brands across Asian, European, and American makes. The vehicle count exceeds 200,000 combinations. DoIP coverage applies to VW Group vehicles from 2018 onward, BMW from 2014 onward, and other manufacturers that have adopted the Ethernet-based diagnostic protocol on newer models. CAN-FD coverage handles the faster data buses found on 2020 and newer GM, Ford, and European platforms.

Specifications

Specification	Details
Display	12.9-inch touchscreen, 2048×1536
Processor	2.4GHz + 1.8GHz octa-core
OS	Android 10
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes, 10,000+ active tests
ECU Coding	Yes (make-dependent)
J2534 Pass-Thru	Full implementation, DoIP, CAN-FD
Service Functions	36+ procedures
Vehicle Coverage	80+ brands, 200,000+ combinations
Wireless	Wi-Fi, Bluetooth 4.2
Updates	First year free, subscription after

What’s Included

MaxiSys Elite II Pro tablet, MaxiFlash VCI unit, OBD2 main cable, USB-C cable, USB OTG cable, power adapter, quick start guide, carrying case.

Pros and Cons

Pros	Cons
Full J2534 ECU programming with complete DoIP and CAN-FD support	Subscription required after the first year to maintain vehicle database access
Bidirectional control on 10,000+ active test functions
36+ service functions covering nearly all maintenance procedures
ECU coding across BMW, Mercedes, VAG, and other supported makes
12.9-inch tablet screen, comfortable for all-day shop use
DoIP support for 2020+ vehicles without adapters
MaxiFlash VCI works independently for wireless vehicle access
200,000+ vehicle combinations covered

My Final Verdict

The Autel MaxiSys Elite II Pro is the professional scanner I would put in a shop that services a mixed fleet of European and domestic vehicles and needs genuine J2534 programming capability alongside day-to-day diagnostics. The combination of DoIP support, full ECU coding, and a complete service function library is not matched at this price. The annual update subscription is a real ongoing cost, but the diagnostic hardware justifies it if the tool is used regularly on billable work.

2. Autel MaxiSys MS906 Pro: Best Value Professional OBD2 Scanner

• Bidirectional control across all systems on supported vehicles
• 28 service reset functions and ECU coding on compatible makes
• Android 10 tablet with 7-inch screen and one year of free updates

Overview

The Autel MaxiSys MS906 Pro occupies the most practical position in the professional scanner market. At roughly $899, it gives shops the diagnostic depth they actually use on a daily basis: full-system bidirectional control, ECU coding on a broad set of makes, and a solid service function library. It is not a J2534 programmer and it does not have DoIP. For shops where daily work is diagnosing faults, running active tests, and resetting service items rather than flashing ECUs, the MS906 Pro delivers the capability that matters at a price that makes sense for a tool used by multiple technicians.

Diagnostic Features and Capabilities

Full-system diagnostics cover all modules including ABS, SRS, transmission, TPMS, body, and chassis. Bidirectional active tests allow component commands on over 10,000 functions depending on vehicle. ECU coding is available for supported makes including VAG, BMW, Mercedes, and others, allowing variant coding and adaptations without OEM software. The 28 service reset functions include oil life, EPB, BMS, DPF regeneration, injector coding, throttle reset, SAS, ABS bleeding, TPMS relearn, gearbox adaptation, and more. Live data with graphing and freeze frame are standard. The MS906 Pro does not include J2534 pass-thru or built-in DoIP support.

Vehicle Compatibility

The MS906 Pro covers over 80 vehicle brands across domestic, Asian, and European makes. Coverage is comprehensive for vehicles through 2026 model years. For 2020 and newer vehicles using DoIP, standard OBD2 functions remain accessible but deeper Ethernet-based module access requires upgrading to the Elite II Pro or higher. The tool handles standard CAN and medium-speed CAN protocols fully.

Specifications

Specification	Details
Display	7-inch touchscreen, 1024×600
Processor	Octa-core 1.8GHz
OS	Android 10
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes, 10,000+ active tests
ECU Coding	Yes (make-dependent)
J2534 Pass-Thru	No
Service Functions	28 procedures
Vehicle Coverage	80+ brands
Wireless	Wi-Fi, Bluetooth 4.0
Updates	First year free, subscription after

What’s Included

MS906 Pro tablet, MaxiVCI Mini V2.0 BT adapter, OBD2 to DB15 cable, USB-C cable, power adapter, quick start guide, carrying case.

Pros and Cons

Pros	Cons
Full bidirectional control across all vehicle systems on supported makes	No J2534 pass-thru; ECU reflashing requires a separate programmer
28 service reset functions covering virtually all common maintenance procedures
ECU coding available for VAG, BMW, Mercedes, and other supported makes
One year of free software and vehicle database updates included
Compact 7-inch form factor, easy to carry between bays
Wireless VCI mini adapter for hands-free use in the vehicle
Practical price point for multi-tech shops

My Final Verdict

The MS906 Pro is the scanner I would recommend for any shop that needs real professional diagnostic capability without paying for ECU programming hardware they will rarely use. Bidirectional control, ECU coding, and 28 service functions cover the work that generates revenue on a daily basis. If J2534 programming is a regular part of your workflow, move up to the Elite II Pro. For everyone else, this is the practical professional choice.

3. Launch X431 PRO5: Best Professional OBD2 Scanner for European Makes

• Deep BMW, Mercedes-Benz, and Volkswagen Group protocol coverage
• ECU coding, 40+ service functions, and remote diagnostics capability
• Android tablet with Bluetooth OBD2 VCI and OTA software updates

Overview

The Launch X431 PRO5 is the right choice for shops that specialize in or regularly service European vehicles. Launch’s coverage for BMW, Mercedes-Benz, and Volkswagen Group platforms is deeper than Autel’s in certain specific areas, particularly for older BMW E-series and classic Mercedes W-body access and coding parameters. The tool connects to the vehicle via a Bluetooth VCI dongle rather than a cable, and the remote diagnostics feature via the Launch app lets experienced technicians assist remotely, which is useful for shop owners managing multiple locations. The 40+ service function count is comprehensive.

Diagnostic Features and Capabilities

Full-system diagnostics cover all modules for supported makes. Bidirectional active tests are available across engine, ABS, SRS, transmission, body, and chassis systems. ECU coding is a core strength, with broad coverage for BMW coding parameters, Mercedes adaptations, and VAG variant coding. The service function library covers oil reset, EPB, BMS, DPF, injector coding, SAS, TPMS, ABS bleeding, gearbox adaptation, throttle reset, and over 40 procedures total. Remote diagnostics via the Launch Pad X app allows real-time collaboration with another technician using the same platform. OTA updates deliver new vehicle coverage and software improvements without connecting to a computer.

Vehicle Compatibility

The X431 PRO5 covers over 100 vehicle brands. European coverage is a particular strength for BMW (including pre-OBD2 models via optional cables), Mercedes-Benz, Audi, Volkswagen, Porsche, Volvo, Peugeot, Renault, Citroen, and Fiat. Asian coverage is solid for Toyota, Honda, Nissan, Hyundai, Kia, Mazda, Subaru, and Mitsubishi. US domestic coverage is complete for Ford, GM, Chrysler, and Ram.

Hyundai and Kia owners who want this level of professional multi-system access at a lower price tier will find the right tools in my guide to the best OBD2 scanner for Hyundai.

Tucson owners who need professional-tier CANFD module access, CVVT active tests, and AWD diagnostics will find the purpose-built picks in my OBD2 scanner picks for Hyundai Tucson.

Nissan owners comparing professional-tier multi-system scanner options, including Xtronic CVT diagnostic depth and ADAS module access, will find the tools that cover all of it in my top Nissan OBD2 scanner picks.

Specifications

Specification	Details
Display	10.1-inch touchscreen, 1920×1200
Processor	Octa-core 1.8GHz
OS	Android 9.0
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes
ECU Coding	Yes (broad European coverage)
J2534 Pass-Thru	No
Service Functions	40+ procedures
Vehicle Coverage	100+ brands
Wireless	Wi-Fi, Bluetooth VCI
Updates	OTA, first year included

What’s Included

X431 PRO5 tablet, X431 DBSCAR VCI connector, OBD2 extension cable, AC adapter, USB cable, quick start guide, carrying case.

Pros and Cons

Pros	Cons
Exceptional European vehicle coverage for BMW, Mercedes, and VAG platforms	Android OS version lags behind newer Autel equivalents
ECU coding depth is a specific strength for older BMW and Mercedes models
40+ service functions covering virtually all maintenance procedures
Remote diagnostics capability for multi-location shop support
100+ vehicle brands covered
OTA updates without a computer connection
Wireless Bluetooth VCI for hands-free use in the vehicle

My Final Verdict

For shops that service European vehicles regularly and care about coding depth on BMW, Mercedes, and VAG platforms specifically, the Launch X431 PRO5 earns its place over the Autel MS906 Pro. The remote diagnostics capability is a practical differentiator for multi-tech operations. If your vehicle mix is primarily domestic or Asian, the Autel MS906 Pro is the stronger general-purpose choice at a lower price.

4. Autel MaxiCOM MK908 Pro II: Best Professional OBD2 Scanner for ECU Programming

• Full J2534 pass-thru with DoIP for OEM-level ECU programming
• Bidirectional control and ECU coding across all supported modules
• 10-inch Android 11 tablet with integrated MaxiFlash JVCI

Overview

The Autel MaxiCOM MK908 Pro II sits between the MS906 Pro and the Elite II Pro in Autel’s lineup, and its main differentiator is the full J2534 pass-thru implementation with integrated MaxiFlash JVCI hardware. If J2534 programming is a regular part of your shop’s workflow but you want a more compact form factor than the Elite II Pro, the MK908 Pro II makes sense. It runs Android 11, which gives it a more responsive UI than older Android-based scanners, and the DoIP integration covers newer-vehicle module access without adapters.

Diagnostic Features and Capabilities

Full J2534 pass-thru programming is the headline capability here. The MaxiFlash JVCI handles both standard J2534 and DoIP-based ECU programming, which means you can run OEM reprogramming software directly through the scanner. Beyond programming, the tool delivers full-system bidirectional control, ECU coding across supported makes, and a service function library covering 36+ procedures. Active test functions cover ABS, SRS, transmission, fuel system, and other modules. Live data with graphing and freeze frame are included. ADAS calibration is supported via third-party software through the J2534 interface.

Vehicle Compatibility

Coverage matches the Elite II Pro in breadth: 80+ brands and 200,000+ vehicle combinations. DoIP coverage applies to VW Group from 2018, BMW from 2014, and other manufacturers adopting Ethernet-based diagnostics. The tool handles CAN, CAN-FD, ISO, and DoIP protocols for full modern vehicle coverage.

Specifications

Specification	Details
Display	10.1-inch touchscreen, 1920×1200
Processor	2.0GHz octa-core
OS	Android 11
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes
ECU Coding	Yes (make-dependent)
J2534 Pass-Thru	Full, with DoIP and CAN-FD
Service Functions	36+ procedures
Vehicle Coverage	80+ brands, 200,000+ combinations
Wireless	Wi-Fi, Bluetooth 5.0
Updates	First year free, subscription after

What’s Included

MK908 Pro II tablet, MaxiFlash JVCI, OBD2 main cable, USB-C cable, power adapter, quick start guide, carrying case.

Pros and Cons

Pros	Cons
Full J2534 pass-thru with DoIP and CAN-FD for complete ECU programming capability	At $1,699 it competes closely with the Elite II Pro at $2,499, which adds a larger screen and more features
Android 11 delivers a faster, more responsive interface than older Android versions
MaxiFlash JVCI handles both J2534 and DoIP protocols in one integrated unit
Bidirectional control across all system modules
ECU coding for all supported makes and modules
36+ service reset functions for comprehensive maintenance coverage
200,000+ vehicle combinations covered

My Final Verdict

The MK908 Pro II is the right pick for shops that need J2534 programming regularly but prefer the smaller 10-inch form factor over the Elite II Pro’s 12.9-inch tablet. At $1,699, it is a meaningful step up from the MS906 Pro, and the J2534 and DoIP capabilities justify that step if programming is part of your daily workload. If you are on the fence between this and the Elite II Pro, the $800 gap buys a larger screen and minor spec improvements. For most shops, the MK908 Pro II is the more practical programming-capable choice.

5. Foxwell GT90 Plus: Best Entry-Level Professional OBD2 Scanner

• Full-system bidirectional control at the lowest professional entry price
• 40+ service functions, 8-inch Android tablet with physical button controls
• Coverage for 80+ vehicle brands with lifetime free updates

Overview

The Foxwell GT90 Plus is where the professional scanner market starts. At roughly $699, it provides the two capabilities that separate a professional tool from a consumer scanner: full-system bidirectional control and a meaningful service reset library. It does not do ECU coding or J2534 programming. But for shops looking to add real active testing capability without committing to a $900 or higher investment, the GT90 Plus delivers the diagnostic core. Foxwell’s lifetime free update model is also a practical advantage for a tool that may be deployed by multiple technicians over several years.

Diagnostic Features and Capabilities

Full-system diagnostics access engine, ABS, SRS, transmission, TPMS, body, chassis, and all other available modules. Bidirectional active tests cover fuel injector tests, cooling fan commands, EGR valve tests, throttle body actuations, ABS pump tests, and other component-level verifications depending on vehicle. The service function count exceeds 40 procedures, including oil reset, EPB, BMS, DPF, SAS, ABS bleeding, TPMS, injector coding, gearbox adaptation, and more. ECU coding is not available. J2534 pass-thru is not available. The 8-inch touchscreen includes physical side buttons for navigating menus with gloved hands in shop environments.

Vehicle Compatibility

The GT90 Plus covers 80+ vehicle brands. Domestic coverage handles Ford, GM, Chrysler, Ram, and Jeep fully through current model years. Asian coverage is comprehensive for Toyota, Honda, Nissan, Hyundai, Kia, Mazda, Subaru, and others. European coverage is solid for BMW, Mercedes, VAG group, Volvo, and Peugeot, though ECU coding for these makes is not available on this model.

Hyundai owners who need MDPS, IVT, and SRS access without the full professional tier price will find the purpose-built tools in my Hyundai OBD2 scanner picks.

Elantra owners who need MDPS, IVT, and CVVT active test access at the professional tier will find the compatible tools in my Elantra OBD2 scanner guide.

Santa Fe owners who need HTRAC AWD module access, 8DCT diagnostics, or professional-tier bidirectional coverage will find the compatible tools in my Santa Fe OBD2 scanner guide.

Volvo owners on SPA-platform models who need professional-tier EPB service, ADAS module access, and full multi-system coverage will find the tools that match in my best OBD2 scanner for Volvo.

Specifications

Specification	Details
Display	8-inch touchscreen, 1280×800
Processor	Quad-core 1.8GHz
OS	Android 9.0
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes
ECU Coding	No
J2534 Pass-Thru	No
Service Functions	40+ procedures
Vehicle Coverage	80+ brands
Wireless	Wi-Fi, Bluetooth
Updates	Lifetime free

What’s Included

GT90 Plus tablet, OBD2 cable, USB-C cable, power adapter, quick start guide, carrying case.

Pros and Cons

Pros	Cons
Lowest entry point for a genuine professional bidirectional scanner	No ECU coding capability for any make
40+ service functions covering all common maintenance reset procedures
Lifetime free updates, no annual subscription required
Physical side buttons for gloved-hand use in the shop
80+ vehicle brands with solid domestic and Asian coverage
Full-system access to ABS, SRS, transmission, and all other modules
Active component testing for injectors, fans, EGR, and other actuators

My Final Verdict

The Foxwell GT90 Plus is the right choice for a shop stepping up from a basic scanner for the first time and needing genuine bidirectional capability without spending $900 or more. The lifetime free update model removes the ongoing subscription cost that comes with Autel tools. The lack of ECU coding is the ceiling here. If coding is part of your workflow, budget for the MS906 Pro instead. For pure diagnostic and service reset work, the GT90 Plus handles it at the lowest professional price.

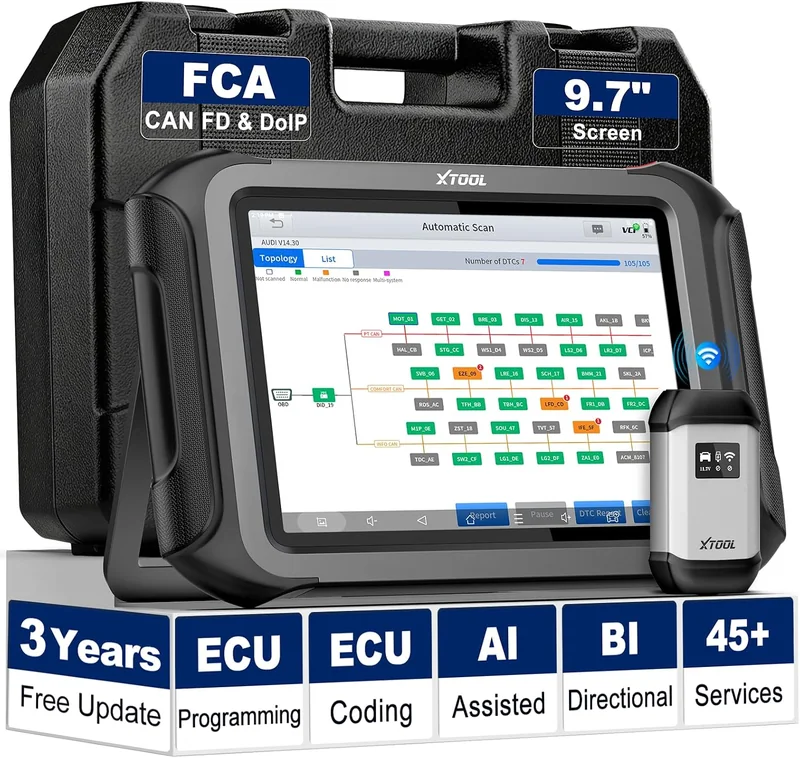

6. XTOOL D9 Pro: Best Value Professional OBD2 Scanner with Oscilloscope

• Built-in 2-channel oscilloscope for electrical and sensor signal testing
• Bidirectional control, ECU coding, and 40+ service functions
• DoIP support for 2020 and newer vehicles

Overview

The XTOOL D9 Pro is the only scanner in this list that bundles a built-in oscilloscope at under $900. The two-channel scope lets you test electrical signals directly through the scanner without connecting a separate meter, which is a meaningful workflow improvement for diagnosing sensor faults, injector waveforms, and actuator response issues. On top of the scope, the D9 Pro delivers full-system bidirectional control, ECU coding, DoIP support for newer vehicles, and a 40+ service function library. For a shop that handles electrical diagnostics and wants to avoid buying separate oscilloscope hardware, the value here is difficult to argue against.

Diagnostic Features and Capabilities

The built-in 2-channel oscilloscope displays signal waveforms for sensors, actuators, and electrical circuits directly on the scanner screen. This covers injector pulse testing, O2 sensor waveforms, MAF signal verification, CKP and CMP correlation, and other signal-level diagnostics. Beyond the scope, full-system diagnostics access all available modules. Bidirectional active tests cover engine components, ABS, SRS, and other systems. ECU coding is available for supported makes. DoIP support handles Ethernet-based diagnostics on 2020 and newer vehicles. Service functions exceed 40 procedures covering all standard maintenance reset operations.

Vehicle Compatibility

The D9 Pro covers 80+ vehicle brands. DoIP coverage handles newer VW Group, BMW, and other Ethernet-based vehicles. CAN-FD support is included for newer domestic platforms. European, Asian, and domestic coverage is comprehensive for vehicles through 2026 model years.

Specifications

Specification	Details
Display	10.1-inch touchscreen, 1280×800
OS	Android 9.0
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes
ECU Coding	Yes (make-dependent)
Oscilloscope	2-channel built-in
J2534 Pass-Thru	No
DoIP Support	Yes
Service Functions	40+ procedures
Vehicle Coverage	80+ brands
Updates	First year free, subscription after

What’s Included

XTOOL D9 Pro tablet, VCI mini connector, OBD2 extension cable, oscilloscope probes, USB-C cable, power adapter, carrying case.

Pros and Cons

Pros	Cons
Built-in 2-channel oscilloscope at a price where competitors offer none	The oscilloscope depth is introductory compared to dedicated lab scopes
DoIP support for 2020 and newer vehicles without additional hardware
ECU coding across supported makes
Full bidirectional control on all system modules
40+ service reset functions
Strong value for the combined diagnostic and electrical testing capability

My Final Verdict

For a technician who handles electrical diagnostics and wants to carry one device that covers both code-level diagnostics and signal-level waveform testing, the D9 Pro is the most practical answer at under $900. The oscilloscope is a two-channel introductory unit, not a replacement for a Pico or Snap-on lab scope. But for verifying sensor signals and injector waveforms in daily shop work, it handles the cases that come up most often. Add DoIP support and ECU coding, and the D9 Pro earns its position in any shop’s tool list.

7. Launch X431 PAD VII: Best Professional OBD2 Scanner for ADAS Calibration

• Integrated ADAS calibration software for camera, radar, and sensor systems
• Full bidirectional control, ECU coding, and J2534 programming support
• 13-inch Android tablet with cloud connectivity and remote diagnostics

Overview

The Launch X431 PAD VII targets shops that need ADAS calibration capability alongside standard diagnostic functions. As vehicles with active safety systems become a larger part of any shop’s service volume, calibrating forward-facing cameras, blind-spot radar, and adaptive cruise sensors after windshield replacements or suspension repairs is increasingly part of the job. The PAD VII integrates this calibration software into the scanner platform rather than requiring a separate device. At $3,500, it is a significant investment, but for shops already handling ADAS work with separate equipment, consolidation into one platform has real value.

Diagnostic Features and Capabilities

ADAS calibration software covers static and dynamic calibration procedures for forward-facing cameras, blind-spot monitoring, lane departure warning, adaptive cruise control radar, and other active safety sensors on supported vehicles. Full-system diagnostics and bidirectional control match the standard professional capability of the PRO5. ECU coding is available for all supported makes. J2534 pass-thru programming is included for ECU reflashing via OEM software. Service functions exceed 40 procedures. Remote diagnostics and cloud-connected data sharing are built into the Launch app integration.

Vehicle Compatibility

Diagnostic coverage extends to 100+ vehicle brands across all regions. ADAS calibration coverage spans most common makes and models with active safety systems, including domestic, Asian, and European vehicles. Coverage for calibration-specific procedures is make and model year dependent; the Launch database documents which procedures are supported for each vehicle.

Specifications

Specification	Details
Display	13-inch touchscreen, 2560×1600
OS	Android 10
Supported Systems	Full-system plus ADAS modules
Bidirectional Control	Yes
ECU Coding	Yes
J2534 Pass-Thru	Yes
ADAS Calibration	Yes (integrated software)
Service Functions	40+ procedures
Vehicle Coverage	100+ brands
Updates	OTA, first year included

What’s Included

X431 PAD VII tablet, VCI X connector, OBD2 cable, power adapter, USB cable, ADAS calibration targets (varies by configuration), carrying case.

Pros and Cons

Pros	Cons
Integrated ADAS calibration eliminates the need for a separate calibration device	Price is $3,500 and up depending on ADAS target kit configuration
J2534 pass-thru for full ECU programming
ECU coding across all supported makes
13-inch screen comfortable for detailed calibration procedures
Remote diagnostics for multi-tech or multi-location operations
100+ vehicle brands with broad coverage
Cloud-connected vehicle history and data storage

My Final Verdict

The PAD VII makes sense for shops already investing in ADAS calibration work that want to consolidate into a single platform instead of maintaining separate diagnostic and calibration tools. The price demands that ADAS calibration is an active revenue stream, not an occasional service. For shops not yet doing calibration work, the MS906 Pro or Elite II Pro deliver better diagnostic value per dollar.

8. Autel MaxiSys Ultra Lite: Best Professional OBD2 Scanner with Built-In Lab Scope

• Integrated 5-channel oscilloscope with professional-grade waveform analysis
• Full J2534 pass-thru, DoIP, and MaxiFlash JVCI for ECU programming
• 13-inch Android tablet, 36+ service functions, and thermal camera optional add-on

Overview

The Autel MaxiSys Ultra Lite is the closest thing to a standalone diagnostic workstation in a tablet form factor. The integrated 5-channel oscilloscope is a substantial step above the 2-channel scope on the XTOOL D9 Pro. It handles the signal-level testing that professional technicians previously needed a dedicated lab scope to perform, including injector return flow analysis, pressure sensor verification, alternator output waveforms, and communication bus signal integrity testing. Combined with full J2534 programming, DoIP support, and Autel’s comprehensive vehicle database, the Ultra Lite is the tool for a master technician who wants one platform to cover every diagnostic scenario.

Diagnostic Features and Capabilities

The 5-channel oscilloscope supports voltage, current, and frequency measurements with adjustable time bases and trigger functions appropriate for automotive signal testing. Beyond the scope, full J2534 ECU programming with DoIP handles all ECU reflash and calibration tasks. Bidirectional control covers all available system modules. ECU coding applies to all supported makes. Service functions cover 36+ procedures. MaxiFlash JVCI provides both wired and wireless vehicle communication. The tool also supports topology mapping, which visualizes the communication network of a vehicle’s modules to identify offline or malfunctioning units quickly.

Vehicle Compatibility

Coverage matches the Elite II Pro: 80+ brands, 200,000+ vehicle combinations, DoIP for applicable manufacturers, and full CAN-FD support. Autel’s vehicle database is updated via subscription and is one of the most comprehensive available outside of OEM-specific dealership software.

Specifications

Specification	Details
Display	13-inch touchscreen, 2048×1536
Processor	2.4GHz + 1.8GHz octa-core
OS	Android 10
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes
ECU Coding	Yes (make-dependent)
Oscilloscope	5-channel professional scope
J2534 Pass-Thru	Full, with DoIP and CAN-FD
Service Functions	36+ procedures
Vehicle Coverage	80+ brands, 200,000+ combinations
Updates	First year free, subscription after

What’s Included

MaxiSys Ultra Lite tablet, MaxiFlash JVCI, oscilloscope module, test leads and probes, OBD2 main cable, USB-C cable, power adapter, carrying case.

Pros and Cons

Pros	Cons
5-channel oscilloscope replaces a separate lab scope for most automotive signal testing	Price is near $3,200; meaningful investment for a single technician
Full J2534 programming with DoIP for complete ECU reprogramming capability
Topology mapping identifies offline modules faster than module-by-module scanning
13-inch screen for comfortable multi-window diagnostic sessions
MaxiFlash JVCI handles wireless vehicle access with a stable connection
ECU coding across all supported makes
200,000+ vehicle combinations covered

My Final Verdict

The MaxiSys Ultra Lite is the right scanner for a master technician whose daily work includes complex electrical diagnostics alongside ECU programming and full-system diagnostic work. The 5-channel scope eliminates the need to carry a separate oscilloscope, which is a practical benefit for a technician who handles signal-level diagnostics regularly. If oscilloscope work is only occasional, the Elite II Pro at $700 less is the better investment.

9. Snap-on ZEUS+: Best Professional OBD2 Scanner for US Domestic Shops

• Guided component tests with SureTrack verified real-fix data for US domestic vehicles
• Intelligent diagnostics that suggests probable causes ranked by frequency
• Cloud-connected platform with integrated scope, lab scope, and multimeter functions

Overview

The Snap-on ZEUS+ occupies a different market position than every other scanner in this list. At over $8,000 and sold exclusively through the Snap-on dealer network, it is not a scanner you buy to add capability. It is a complete diagnostic platform built around guided workflows and real-fix probability data from SureTrack, Snap-on’s network of repair technicians across thousands of US shops. The intelligence layer, which ranks probable causes for a specific fault code on a specific vehicle by repair frequency, is the capability that no other scanner in this guide provides. For a shop that diagnoses a high volume of difficult-to-diagnose US domestic vehicles and values speed-to-diagnosis over raw feature count, this is in a class of its own.

Diagnostic Features and Capabilities

Guided component tests walk technicians through structured diagnostic trees for specific symptoms and codes, reducing diagnostic time on unfamiliar faults. SureTrack integrates verified real-fix data showing which components were most commonly replaced for specific code and vehicle combinations across the Snap-on network. The built-in lab scope, graphing multimeter, and battery tester remove the need for separate test equipment. Full-system bidirectional control is standard. Intelligent diagnostics provide code-specific component probability rankings. Cloud connectivity delivers continuous database updates. Coverage for GM, Ford, Chrysler, Ram, and Jeep is exceptional. European and Asian coverage is present but secondary to the domestic-first focus.

Vehicle Compatibility

The ZEUS+ covers all OBD2-compliant vehicles. Its primary strength is US domestic platforms where the SureTrack repair data is deepest: Ford, GM, Chrysler, Ram, and Jeep. European and Asian coverage is available but the SureTrack real-fix intelligence is most developed for domestic makes with the highest repair volume in the US market.

Jeep Grand Cherokee owners who need the same FCA multi-system diagnostic depth at a consumer price point will find the dedicated tools in my guide to the best OBD2 scanner for Jeep Grand Cherokee.

Specifications

Specification	Details
Display	12-inch HD touchscreen
Supported Systems	Full-system (all modules)
Bidirectional Control	Yes
ECU Coding	Yes (US domestic primary)
Guided Tests	Yes, with SureTrack real-fix data
Lab Scope	Integrated (multi-channel)
Graphing Multimeter	Integrated
Battery Tester	Integrated
Wireless	Wi-Fi, Bluetooth
Updates	Cloud-connected, subscription

What’s Included

ZEUS+ tablet with integrated diagnostic hardware, full test lead kit, OBD2 cable, power supply, carrying case. Sold through Snap-on dealers with installation and training included.

Pros and Cons

Pros	Cons
SureTrack real-fix probability data is a capability no other scanner at any price provides	Over $8,000, sold only through Snap-on dealers with ongoing subscription costs
Guided component tests reduce diagnosis time on difficult faults
Integrated lab scope, multimeter, and battery tester in one platform
Exceptional US domestic vehicle coverage and code-specific repair intelligence
Cloud-connected with continuous database updates
Snap-on build quality and dealer support network

My Final Verdict

The Snap-on ZEUS+ is for shops where diagnostic accuracy and speed-to-correct-diagnosis on US domestic vehicles is the primary business constraint, and where the tool cost is justified by the number of diagnostic jobs performed each week. The SureTrack intelligence layer is not something you can buy from Autel or Launch at any price. If you service a high volume of Ford, GM, and Chrysler vehicles and expensive comebacks or long diagnostic times are a cost problem, the ZEUS+ addresses that in a way nothing else does. For shops with a mixed or European-heavy vehicle mix, the Autel Elite II Pro delivers better value.

Comparison Table: All 9 Professional OBD2 Scanners

Scanner	Award	Bidirectional	ECU Coding	J2534	DoIP	Updates
Autel MaxiSys Elite II Pro	Best Overall	Yes	Yes	Full	Yes	1 yr free + sub
Autel MaxiSys MS906 Pro	Best Value Shop Tool	Yes	Yes	No	No	1 yr free + sub
Launch X431 PRO5	Best for European Makes	Yes	Yes	No	No	1 yr free + sub
Autel MaxiCOM MK908 Pro II	Best for ECU Programming	Yes	Yes	Full	Yes	1 yr free + sub
Foxwell GT90 Plus	Best Entry-Level Professional	Yes	No	No	No	Lifetime free
XTOOL D9 Pro	Best Value with Oscilloscope	Yes	Yes	No	Yes	1 yr free + sub
Launch X431 PAD VII	Best for ADAS Calibration	Yes	Yes	Yes	Yes	1 yr free + sub
Autel MaxiSys Ultra Lite	Best with Built-In Lab Scope	Yes	Yes	Full	Yes	1 yr free + sub
Snap-on ZEUS+	Best for US Domestic Shops	Yes	Yes	Yes	Yes	Cloud sub

Buyer’s Guide: How to Choose the Right Professional OBD2 Scanner

Bidirectional Control vs. ECU Coding: Understanding the Difference

Bidirectional control means the scanner can send commands to vehicle components to test their function. Examples include commanding a cooling fan on or off, cycling an ABS pump, retracting an electric parking brake, or running a fuel injector test. Every scanner in this list supports this. ECU coding is a different and more advanced operation. It reads and modifies parameters stored in control units, such as enabling or disabling features, adjusting adaptations, or performing variant coding after a module replacement. Not all professional scanners support ECU coding. The Foxwell GT90 Plus, for example, provides full bidirectional control but no ECU coding capability. If coding is part of your work, this distinction determines which scanner tier you need. My roundup of the best bidirectional OBD2 scanners covers the tools that bring genuine active testing capability at lower price points, for shops that need bidirectional control without the ECU coding tier.

J2534 Pass-Thru: What It Is and When You Need It

J2534 is a SAE standard that defines an interface allowing a PC application to communicate with a vehicle’s ECU through a compliant hardware adapter. OEM reprogramming software from Ford, GM, BMW, Toyota, and others uses J2534 to flash updated firmware to ECUs, modules, and control units. If your shop reflashes ECUs from OEM portals such as Ford’s OASIS or GM’s TIS2Web, you need a scanner with full J2534 support. Of the nine scanners in this guide, three have full J2534: the Elite II Pro, MK908 Pro II, and MaxiSys Ultra Lite. The Launch X431 PAD VII also includes J2534. If ECU reflashing via OEM software is not part of your workflow, the non-J2534 tools deliver full diagnostic capability for substantially less money. If Toyota is a primary make in your shop, my guide to the best OBD2 scanners for Toyota covers the tools that handle Toyota-specific diagnostics and programming within the standard OBD2 tier.

DoIP and CAN-FD Coverage for Newer Vehicles

From roughly 2018 onward, vehicle manufacturers began adopting two newer communication protocols. DoIP (Diagnostics over Internet Protocol) uses an Ethernet physical layer for high-speed communication with modules that require faster data throughput, particularly on BMW, VW Group, and some other European platforms from those years. CAN-FD (Controller Area Network Flexible Data-Rate) increases data bandwidth on the existing CAN bus and is used on many 2020 and newer domestic and European vehicles. Scanners without DoIP can still access standard OBD2 functions on these vehicles, but certain module-level diagnostics may be limited. If your shop services newer vehicles regularly, DoIP support is an important criterion. The Elite II Pro, MK908 Pro II, XTOOL D9 Pro, MaxiSys Ultra Lite, and PAD VII all include DoIP. If BMW is the primary make in your shop, my guide to the best OBD2 scanners for BMW covers DoIP support and coding depth for that platform specifically.

Display Size and Android OS: Why It Matters in a Shop

Larger screens are more useful when reading live data across multiple parameters, navigating coding menus, or following guided diagnostic procedures. The 7-inch screen on the MS906 Pro is workable but small compared to the 10- and 13-inch options on higher-tier tools. In a busy shop environment, a larger screen reduces the time spent squinting at data and scrolling through menus. Android OS version matters for performance. Older Android versions on some Launch tools result in slower response and app stability compared to the Android 10 and 11 platforms on current Autel units. If the scanner will be used multiple hours daily, these usability differences compound over time.

Subscription Costs and Update Models

Every Autel scanner in this list includes one year of free vehicle database and software updates, after which a subscription is required to maintain current vehicle coverage and feature access. Launch follows the same model. Foxwell is the exception, offering lifetime free updates on the GT90 Plus. Snap-on’s ZEUS+ operates on an ongoing dealer-managed subscription model. When comparing professional scanner prices, factor in the annual update cost. For high-usage shop tools, keeping vehicle coverage current is not optional. Autel’s annual subscription for scanners in this range is typically $300 to $600 depending on the model.

The Cost Tiers: What Each Price Range Actually Gets You

At $699 to $799, the Foxwell GT90 Plus and XTOOL D9 Pro provide genuine professional bidirectional capability plus service functions, with the D9 Pro adding ECU coding and an oscilloscope. These are tools where the capability ceiling is not ECU coding but J2534 programming. From $899 to $1,299, the MS906 Pro and Launch PRO5 add ECU coding across a broad make list and a more refined software experience. From $1,699 to $2,499, the MK908 Pro II and Elite II Pro add full J2534 programming and DoIP. From $3,199 to $3,500, the Ultra Lite and PAD VII add a professional oscilloscope and ADAS calibration respectively. The Snap-on ZEUS+ above $8,000 adds guided diagnostics and real-fix intelligence that no other platform provides. For shops or technicians who need a personal code reader rather than a full shop tool, my roundup of top budget OBD2 scanners covers the consumer tier that handles fault reading and basic service functions without bidirectional or coding capability.

For Mercedes and VAG platforms specifically, my guide to the best OBD2 scanners for Mercedes covers the tools with the deepest access to proprietary functions and variant coding for those makes.

Chevy and GM shops looking for a dedicated GM diagnostic tool rather than a universal platform will find purpose-built alternatives in my Chevy-specific OBD2 scanner guide, covering GM-dedicated options with deep Silverado and Tahoe bidirectional support.

Common Professional OBD2 Scanner Buying Mistakes

Paying for J2534 capability you will never use. Full J2534 ECU programming adds $700 to $1,000 to the price of a professional scanner. If your shop does not use OEM reprogramming portals, that money buys a capability that sits unused. The MS906 Pro and Launch PRO5 deliver full professional diagnostic capability without it at a meaningfully lower price.

Not accounting for the annual update subscription. A scanner that costs $899 at purchase costs $1,199 to $1,499 after the first year of subscription renewal. Over three years, the total investment is substantially higher than the sticker price. Foxwell’s lifetime free update model is a real differentiator for budget-conscious shops.

Choosing based on bidirectional test count without verifying vehicle-specific coverage. A scanner that claims 10,000 bidirectional tests may support 800 of them for your specific vehicle. Verifying that the active tests you need exist for your most common vehicles before buying avoids this. Request a demo or trial period when possible.

Forester owners should verify that any professional scanner covers AVCS solenoid active tests and EyeSight DTC access; my Subaru Forester OBD2 scanner picks covers which tools pass that check.

Honda shops that regularly service the Accord alongside European vehicles should verify the scanner’s active test library includes the K20C7 injector balance test and CVT adaptation reset; my Honda Accord scanner picks lists which professional tools confirm that coverage.

Assuming the Snap-on ZEUS+ is the best scanner because it is the most expensive. The ZEUS+ is exceptional for US domestic vehicles where SureTrack data is deep. For shops with a European or mixed vehicle focus, the Autel Elite II Pro or Launch PRO5 provide better manufacturer-specific coverage and coding depth at a fraction of the price.

My Jeep Gladiator OBD2 scanner guide covers J2534-capable options for EcoDiesel ECM calibration and SKIM key programming on JT Gladiator builds.

Ignoring DoIP for a shop servicing 2020 and newer vehicles. A $700 professional scanner from 2021 that lacks DoIP support will have limited access to certain modules on newer European and domestic vehicles. If your shop regularly services recent model years, DoIP support is worth the additional investment today rather than requiring a tool upgrade in two years.

My Final Recommendations

For a shop that needs the most capable professional OBD2 scanner under $2,500, the Autel MaxiSys Elite II Pro is the right choice. Full J2534 programming, DoIP support, ECU coding, and 36+ service functions on a 12.9-inch tablet covers every diagnostic scenario except the guided SureTrack intelligence of the Snap-on.

My Jeep Wrangler OBD2 scanner guide covers the J2534-capable options for Wrangler owners who need ECM calibration updates and SKIM key programming via WiTech 2.0.

For shops that need professional diagnostics without J2534 programming, the Autel MaxiSys MS906 Pro is the practical choice at $899. Full bidirectional control, ECU coding, and 28 service functions handle the daily revenue-generating diagnostic work. The update subscription cost is real but the tool capability justifies it.

For shops specializing in European vehicles, particularly BMW, Mercedes, and VAG platforms, the Launch X431 PRO5 offers coding depth in those makes that competes with the MS906 Pro at a similar price point. The remote diagnostics capability is an additional differentiator for multi-tech operations.

For the best professional OBD2 scanner entry point with lifetime free updates, the Foxwell GT90 Plus at $699 is the choice. No ECU coding, but full bidirectional control and 40+ service functions without any ongoing subscription cost.

For technicians who need oscilloscope capability alongside diagnostics, the XTOOL D9 Pro at $799 is the only option under $3,000 with a built-in scope. The 2-channel unit handles most daily electrical diagnostics, and the ECU coding and DoIP support add to the value.

For shops doing high volume on US domestic vehicles where diagnostic accuracy is the primary constraint, the Snap-on ZEUS+ delivers SureTrack guided diagnostics that no other platform provides. The $8,000+ price requires the shop to generate enough revenue from faster, more accurate diagnostics to justify it.

FAQs

What is the best professional OBD2 scanner for a small independent shop?

The Autel MaxiSys MS906 Pro is the best professional OBD2 scanner for most small independent shops. It provides full-system bidirectional control, ECU coding across major brands, and 28 service reset functions at $899 with one year of free updates. Shops that do not need J2534 ECU programming get everything required for daily diagnostic work at a price that makes sense for a professional tool investment.

What is the difference between bidirectional control and ECU coding?

Bidirectional control sends commands to vehicle components to verify their function. You can turn a cooling fan on, cycle an ABS pump, or retract an electric parking brake through the scanner. ECU coding reads and writes parameters stored in a control unit, such as enabling or disabling features, performing variant coding after a module replacement, or adjusting adaptations. Bidirectional testing verifies components work. ECU coding changes how the control unit is configured. Not all professional scanners include coding; bidirectional control alone is available at a lower price point.

Do I need J2534 pass-thru capability in a professional OBD2 scanner?

Only if your shop uses OEM reprogramming portals such as Ford’s OASIS or GM’s TIS2Web to flash updated firmware to ECUs. J2534 is the interface standard that those OEM applications use to communicate with the vehicle. If ECU reflashing via OEM software is not part of your workflow, the non-J2534 tools in this guide deliver complete professional diagnostic capability for significantly less money. J2534 capability adds $700 to $1,000 to the scanner cost.

What does DoIP mean for professional OBD2 scanners?

DoIP stands for Diagnostics over Internet Protocol. It is a communication protocol used by certain vehicle manufacturers, particularly VW Group from 2018 onward and BMW from 2014 onward, for high-speed diagnostic communication via an Ethernet-based physical layer rather than the standard CAN bus. Scanners without DoIP support can still connect to these vehicles for standard OBD2 functions but may have limited access to certain modules that communicate exclusively via DoIP. If your shop services newer European vehicles regularly, DoIP support is an important feature to verify before buying.

Is the Snap-on ZEUS+ worth $8,000 compared to an Autel MaxiSys?

For shops that service a high volume of US domestic vehicles and where faster, more accurate diagnosis directly translates to higher revenue, the SureTrack real-fix probability data and guided component tests on the ZEUS+ provide a return that no other scanner offers. For shops with a European or mixed vehicle focus, the Autel MaxiSys Elite II Pro at $2,499 provides deeper manufacturer-specific coverage and better J2534 programming hardware for European platforms. The ZEUS+ is not better in every way. It is specifically better for US domestic diagnostic intelligence and guided workflows on Ford, GM, and Chrysler vehicles.

How often do professional OBD2 scanners need to be updated?

Annual updates are standard practice for professional scanners used in a shop environment. Vehicle coverage databases, software improvements, and new service procedure support are released on a continuous basis. Most Autel and Launch scanners include one year of free updates, after which an annual subscription applies. Foxwell’s GT90 Plus offers lifetime free updates. Snap-on’s ZEUS+ is updated via cloud subscription through the dealer. Skipping updates on a professional scanner means losing coverage for new model years and missing software improvements that affect diagnostic accuracy.

Can a professional OBD2 scanner replace a dedicated oscilloscope?

For most daily shop diagnostics, the XTOOL D9 Pro’s 2-channel scope handles the common electrical tests: sensor signal verification, injector waveforms, O2 sensor response, and basic bus signal checks. The Autel MaxiSys Ultra Lite’s 5-channel scope handles a broader range of advanced electrical testing. Neither replaces a dedicated high-bandwidth oscilloscope like a Pico or Snap-on lab scope for the most complex signal work, but for the diagnostic scenarios that make up the majority of shop electrical jobs, the integrated scopes eliminate the need to carry a separate unit.
