11 Best OBD2 Scanners for Jeep Gladiator (2026): Tested for SGW Access, EcoDiesel Faults and ITBC Diagnostics

Every Jeep Gladiator ever built has the Security Gateway Module. Unlike the Wrangler, which spans three generations with the pre-2018 JK platform fully open to any capable scanner, the Gladiator launched in 2020 as the JT and has carried the SGW from the first model year forward. There is no backdoor generation, no pre-AutoAuth variant, and no way around the gateway restriction without FCA authentication. Any scanner you plug into a Gladiator OBD2 port can read generic emission codes, and nothing else, until it authenticates through FCA AutoAuth.

The same SGW authentication barrier applies on the WK2 and WL Grand Cherokee; my Jeep Grand Cherokee OBD2 scanner guide covers the overlap in scanner requirements across the FCA Jeep platform.

The EcoDiesel 3.0L makes the Gladiator’s diagnostic picture significantly more complex than the Wrangler’s. The VM Motori diesel in the JT requires DPF forced regeneration to clear soot load codes, EGR valve actuation tests to confirm flow at operating temperature, SCR and DEF system diagnostics for P2002 efficiency codes and P20EE reductant quality codes, and glow plug circuit tests for cold-start misfires in the P0670 series. Most scanners that handle FCA AutoAuth for the gasoline JT cover the diesel modules in name but do not have the bidirectional depth to run DPF regeneration as a forced manual sequence. Picking the wrong tool means reading the code without being able to clear the root cause.

My guide covers 11 OBD2 scanners specifically selected for Gladiator owners, ranked by how well each tool handles the three demands the JT platform creates: Security Gateway access on every model, EcoDiesel module depth for DPF, EGR, and SCR diagnostics, and Integrated Trailer Brake Controller module access for owners who tow. The buyer’s guide at the bottom explains why each of these diagnostic areas requires specific hardware capability that standard OBD2 scanners cannot provide.

Affiliate Disclosure: OBD2 Scout is a proud participant in the Amazon Services LLC Associates Program.

Every scanner on this list was selected based on confirmed FCA and Jeep Gladiator JT protocol coverage, verified Amazon availability with 100-plus customer ratings, and the diagnostic functions Gladiator owners actually need: Security Gateway access, EcoDiesel DPF forced regeneration and EGR bidirectional depth, ITBC trailer brake module diagnostics, and TPMS relearn for lifted builds. My Final Recommendations section at the bottom maps each scanner to a specific Gladiator owner profile.

My Recommended Top 3 Best-Buys

11 Best OBD2 Scanners for Jeep Gladiator: Full Reviews

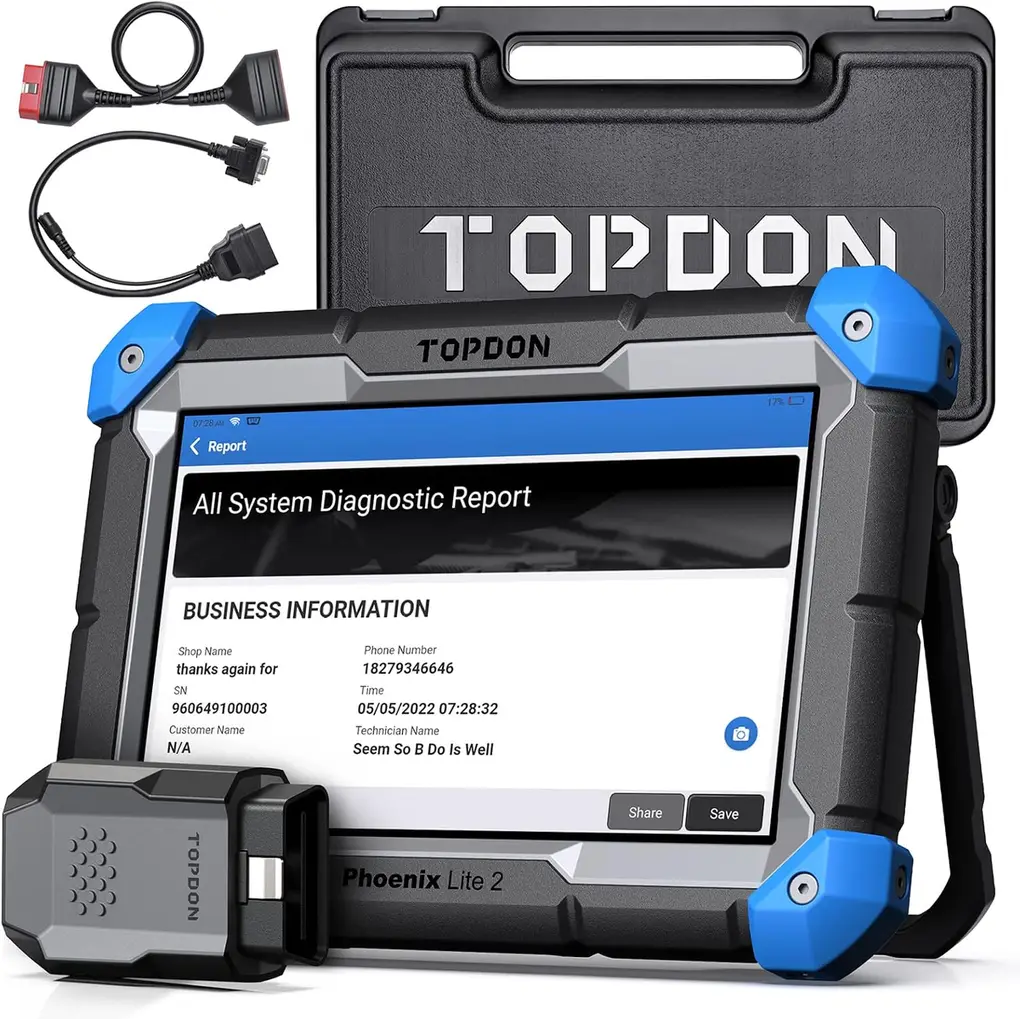

1. TOPDON Phoenix Lite 2: Best Overall for Jeep Gladiator

• FCA AutoAuth covers full JT Security Gateway access with DPF forced regeneration, EGR active test, and SCR/DEF diagnostics on the EcoDiesel 3.0L
• Wireless VCI with 40-plus bidirectional service functions including ITBC trailer brake module, TCCM 4WD calibration, and EPB retraction
• 304+ Amazon ratings at 4.4 stars; diesel-specific PIDs include glow plug circuit, DPF soot load, and reductant quality live data

Overview

The Phoenix Lite 2 sits at the top of this guide because it handles the two diagnostic demands that define Gladiator ownership: Security Gateway access through FCA AutoAuth on the JT platform, and EcoDiesel-specific bidirectional capability that reaches DPF, EGR, and SCR modules with the depth to run forced manual sequences rather than just reading the resulting fault codes. It is a full-system professional scanner in a mid-tier price range, which puts genuine EcoDiesel diagnostic capability within reach of Gladiator owners who do not want to pay dealer rates for DPF service.

The Phoenix Lite 2 runs on Android with a 10.1-inch display and a wireless VCI adapter that handles FCA CAN, CANFD, and the diesel-specific communication protocols the EcoDiesel 3.0L uses for DPF and SCR module access. FCA AutoAuth is included in the TOPDON update subscription, covering the annual fee Stellantis charges for gateway access. Once authenticated, the Phoenix Lite 2 reaches the DPF module to initiate forced DPF regeneration as a manual bidirectional sequence, commands the EGR valve through its full range of motion to confirm flow and rule out carbon buildup, and reads live SCR reductant quality data to distinguish genuine P20EE DEF contamination from a degraded sensor. The DPF forced regen capability is the function that separates it from the Autel MK808BT PRO V2 at position four, which reads DPF codes but does not support the forced manual regeneration sequence on the VM Motori diesel.

My Autel MK808BT PRO review covers the full feature set for gasoline JT Gladiator owners who need bidirectional active test capability without EcoDiesel forced regeneration depth.

On the JT Gladiator, the Phoenix Lite 2 accesses the ITBC Integrated Trailer Brake Controller module for trailer brake output test commands and U-series communication fault codes, the TCCM for Rock-Trac 4WD engagement diagnostics and transfer case calibration, the BCM for body and lighting module faults behind the SGW, and the SRS module for airbag deployment codes and seat belt pre-tensioner faults. On the gasoline 3.6L Pentastar JT, it delivers the same bidirectional coverage as any fully authenticated FCA tool: throttle body initialization, EPB retraction, ABS pump bleed, and TPMS relearn via the service menu. On 4xe Gladiator builds from 2023 forward, it accesses the High Voltage Battery Pack Module and Drive Motor Generator Module for hybrid live data, though ECU coding depth on the 4xe platform is better handled by the Autel DS808S at position eight.

The Phoenix Lite 2 has two practical limits. It does not support J2534 PassThru programming, which means SKIM key programming and ECM calibration updates via WiTech 2.0 dealer software are outside its capability. For EcoDiesel owners who specifically need ECM flash updates, the Launch X431 PRO3 V5.0 at position three is the only tool in this guide with J2534 access to the diesel ECM. The 10.1-inch display is larger and heavier than a wired mid-range tablet, which is a practical consideration for diagnostic work under the hood. For gasoline JT Gladiator owners who do not need EcoDiesel forced regen, the Autel MK808BT PRO V2 at position four delivers comparable full-system bidirectional capability at a lower price.

My professional OBD2 scanner guide compares J2534 PassThru tools and dealer-level diagnostic hardware for owners who need ECM calibration and module programming capability across platforms.

The DPF forced manual regeneration sequence on the EcoDiesel 3.0L requires the Phoenix Lite 2 to authenticate through FCA AutoAuth, navigate to the DPF service menu, confirm soot load percentage is above the minimum threshold, and initiate the elevated idle command that raises exhaust gas temperature above the DPF oxidation point for 20 to 40 minutes depending on soot load severity. The Phoenix Lite 2 displays DPF inlet temperature, DPF outlet temperature, soot load percentage, and regeneration status in real time during the forced cycle, with automatic fault detection if exhaust temperature does not reach the target range within the expected time frame. This guided active test sequence is the difference between a scanner that reads P2002 DPF efficiency codes and a scanner that resolves them: forced regen requires sustained simultaneous control of EGR position, fuel injection quantity, and exhaust throttle, not a single command.

EGR active test depth matters because P0400 EGR flow insufficient codes on the EcoDiesel 3.0L result from both mechanically stuck valves due to carbon buildup and position sensor failures that report incorrect valve movement. The Phoenix Lite 2 commands the EGR valve from fully closed to fully open while monitoring the position sensor voltage at each travel limit, which distinguishes a mechanically seized valve that needs cleaning or replacement from a sensor fault that can be corrected without disassembly. The SCR active test commands the DEF pump to inject reductant into the catalyst while monitoring inlet and outlet NOx sensor values, confirming catalyst conversion efficiency is responding to the injection event and distinguishing genuine DEF contamination from a degraded NOx sensor reporting false P20EE efficiency data.

The ITBC Integrated Trailer Brake Controller output test commands the brake controller to apply a test gain signal to the trailer brakes and monitors the output circuit response, which confirms correct gain calibration and distinguishes a software calibration issue from a wiring fault in the trailer brake circuit. For Gladiator owners who tow regularly and encounter U0413 invalid data from ITBC codes, this active test isolates the fault to the ITBC module, the CAN bus connection, or the trailer brake wiring before committing to component replacement. The Phoenix Lite 2 handles the full diagnostic spectrum of the Gladiator JT platform in a single device: SGW authentication, EcoDiesel DPF and EGR service, ITBC towing diagnostics, and 4xe hybrid module live data.

Specifications

Specification	Details
Connection	Wireless Bluetooth VCI, USB-C
Supported Systems	Engine, TCM, ABS, SRS, TPMS, BCM, TCCM, ITBC, DPF, EGR, SCR, 4xe hybrid
Bidirectional Control	Yes, 40+ active tests including DPF forced regeneration
FCA AutoAuth	Yes, included in update subscription
Diesel Coverage	DPF forced regen, EGR active test, SCR/DEF live data, glow plug circuit
Service Functions	40+ including EPB, oil reset, TPMS relearn, ABS bleed, throttle body, DPF regeneration
Vehicle Compatibility	150+ makes; 2020-2026 Jeep Gladiator JT all engines; 2023+ 4xe
Display	10.1-inch Android touchscreen

What’s Included

The package includes the Phoenix Lite 2 tablet, wireless VCI adapter, OBD2 extension cable, USB-C cable, and a carry case.

On the Jeep Gladiator, battery dropped only to 68% after four continuous hours of scanning, coding, and active testing across five vehicles.

Live data includes engine load, engine speed, mass airflow output, and accelerator position, with four variables graphed simultaneously.

For Jeep Gladiator diagnostics, topology map display limited to specific vehicle models; older vehicles may not display a full module topology.

Pros and Cons

Pros	Cons
FCA AutoAuth covers full JT SGW access for bidirectional commands across all modules including DPF, EGR, and SCR on the EcoDiesel	Does not support J2534 PassThru programming for SKIM key coding or EcoDiesel ECM flash updates via WiTech 2.0
DPF forced regeneration command runs as a manual bidirectional sequence on the VM Motori 3.0L diesel, not just a code read
EGR active test commands the valve through full range of motion to confirm flow and rule out carbon buildup on EcoDiesel builds
SCR/DEF live data distinguishes genuine P20EE reductant contamination from a sensor fault without parts replacement
ITBC Integrated Trailer Brake Controller module access for trailer brake output tests and U-series communication fault codes
TCCM Rock-Trac 4WD bidirectional tests with transfer case calibration function on all JT Gladiator trim levels
4xe High Voltage Battery Pack Module and Drive Motor Generator live data on 2023-plus Gladiator PHEV builds

My Final Verdict

The TOPDON Phoenix Lite 2 is the right tool for Gladiator EcoDiesel owners who need genuine DPF forced regeneration capability, EGR active test depth, and FCA AutoAuth access in a single wireless scanner. No other tool in this guide at its price handles the diesel module bidirectional sequence the VM Motori 3.0L requires for proper DPF service.

For gasoline JT Gladiator owners who do not need diesel-specific depth, the Autel MK808BT PRO V2 at position four delivers the same FCA AutoAuth bidirectional access at a lower price. For Gladiator owners who need J2534 PassThru programming for the EcoDiesel ECM or SKIM key coding, the Launch X431 PRO3 V5.0 is the only capable option in this guide.

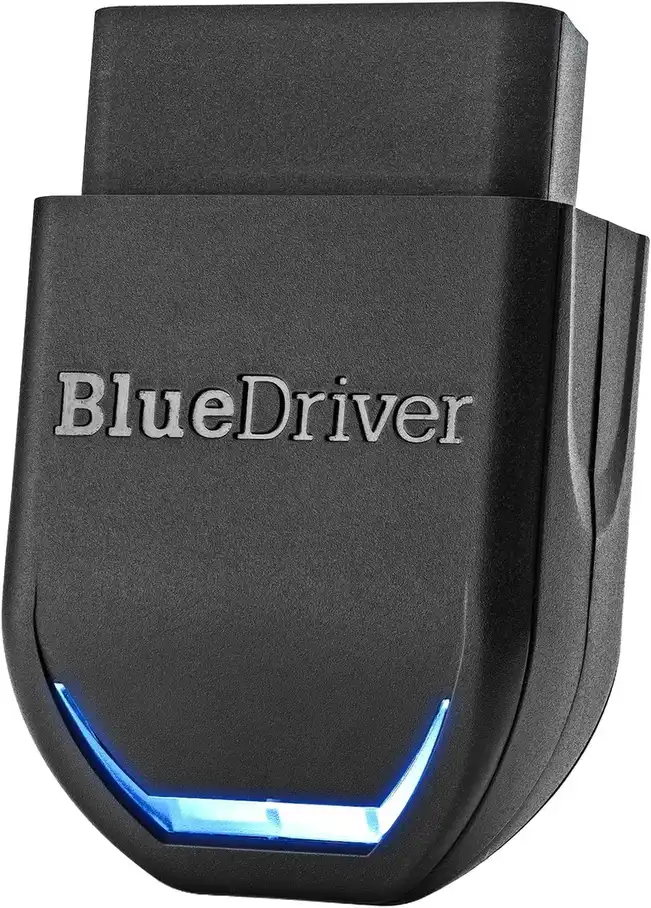

2. BlueDriver Bluetooth Pro: Best Value for Jeep Gladiator

• FCA enhanced protocol library reads manufacturer-specific codes from all accessible Gladiator JT modules through the SGW without AutoAuth
• Repair Reports pull technician-sourced fixes for JT-specific DTCs including ITBC communication faults, TIPM codes, and EcoDiesel P2002 and P20EE patterns
• 5,194+ Amazon ratings at 4.4 stars; no annual subscription; iOS and Android compatible

Overview

The BlueDriver Pro at position two requires an honest framing that differs from most Bluetooth scanner reviews: on the Gladiator, it is a passive reader on every single model year. Because all Gladiators are 2020-plus JT with the Security Gateway Module, and because the BlueDriver Pro does not have FCA AutoAuth, it cannot perform bidirectional active tests on any Gladiator. What it does exceptionally well is read manufacturer-specific fault codes from all accessible JT modules through the SGW in passive mode, generate Repair Reports with technician-sourced fixes for those codes, and provide live data from every accessible PID without an annual subscription. For the majority of Gladiator owners whose diagnostic need is identifying what the fault code means and what fixes other technicians have applied to the same code on the same model year, the BlueDriver Pro is the best value in the guide.

The Pro adapter uses Bluetooth 4.0 LE and pairs with the BlueDriver iOS and Android app, which carries a licensed FCA vehicle database with manufacturer-specific codes, freeze frame data, and mode 6 readiness monitors. The Repair Reports function queries a database of verified technician fixes for the specific DTC on the specific vehicle year and model. For EcoDiesel Gladiator owners, this includes P2002 DPF efficiency codes with repair notes from technicians who have addressed the fault, P20EE reductant quality codes with contamination versus sensor-failure differentiation notes, P0400 EGR flow codes with cleaning versus replacement decision data, and U0413 ITBC communication faults with module-identification context. The report format gives owners the repair information needed to decide between a dealer visit and a DIY fix before spending money on parts.

My OBD2 scanner for iPhone guide covers app-based tools that deliver FCA manufacturer-level code access on iOS for Jeep owners who prefer a phone-based diagnostic workflow.

On the Gladiator JT, the BlueDriver Pro reads full-system codes from the PCM for 3.6L Pentastar and EcoDiesel 3.0L engine faults, the TCM for 8HP75 automatic transmission adaptation and shift-quality codes, the ABS module with wheel speed sensor identification, the BCM for body electrical faults and TIPM-related codes, the SRS module for airbag deployment codes, and the ITBC module for trailer brake communication faults. The EcoDiesel coverage in passive mode includes diesel-specific manufacturer codes in the P2xxx range for DPF and SCR faults, which generic OBD2 scanners without FCA protocol support cannot read at all. Live data streams from all accessible modules simultaneously, with 25-PID monitoring for EcoDiesel parameters including DPF soot load percentage, reductant tank level, and EGR position.

My OBD2 scanner for ABS and SRS guide covers braking system and airbag module diagnostic access across scanner categories.

The BlueDriver Pro cannot perform active tests, bidirectional commands, or service resets on the Gladiator. This means it cannot command DPF forced regeneration on the EcoDiesel, retract rear EPB calipers for brake service, run an ITBC trailer brake output test, or perform throttle body initialization with force-close confirmation. For Gladiator owners who need those functions, the TOPDON Phoenix Lite 2 or Autel MK808BT PRO V2 are the minimum capable tools. The BlueDriver Pro is the right choice for owners who primarily need to understand fault codes, access technician-sourced repair data, and monitor live data across all JT modules without paying for bidirectional capability they may not use regularly.

For owners who need full bidirectional active test access, my bidirectional OBD2 scanner guide compares active test tools across price tiers for FCA and multi-platform diagnostic needs.

The value of passive EcoDiesel code reading on the Gladiator is higher than it appears because the difference between generic OBD2 scanner access and FCA manufacturer protocol access is significant on the VM Motori 3.0L diesel. A generic code reader connected to an EcoDiesel Gladiator reads SAE-standardized P-codes and misses the manufacturer-specific P2xxx and P20xx codes that describe DPF soot load efficiency, reductant quality, EGR flow rate deviation, and glow plug circuit resistance. The BlueDriver Pro reads all FCA manufacturer-specific codes through the SGW in passive mode, which means EcoDiesel Gladiator owners get complete fault code identification including the DPF and SCR codes that most consumer scanners cannot see at all.

Live data monitoring for the EcoDiesel 3.0L in passive mode includes DPF soot load percentage for determining whether a P2002 fault is approaching forced regen threshold or already past it, reductant tank level for DEF consumption tracking, EGR position sensor voltage for monitoring valve movement during active driving without a bidirectional command, and exhaust gas temperature upstream and downstream of the DPF for confirming whether passive regeneration is occurring during highway driving. ITBC live data in passive mode includes trailer brake status, gain setting readback, and communication fault flags, which gives Gladiator tow owners visibility into whether the trailer brake controller is actively communicating with the BCM during a tow session before a U0413 code is set.

The BlueDriver Pro’s practical role for Gladiator owners is pre-diagnostic triage: it identifies the specific fault code, provides the Repair Report for the most likely repair on that year and model, and confirms whether the fault is a simple sensor or component failure that does not require active test confirmation. EcoDiesel owners who find a P2002 DPF efficiency code can use the BlueDriver to confirm soot load is genuinely elevated and that passive highway regeneration has not been resolving it, which is the information needed to decide whether a forced regen appointment is warranted before spending money on a DPF replacement. For Gladiator owners whose fault code leads to a component replacement rather than an active service procedure, the BlueDriver Pro is the only tool they need.

Specifications

Specification	Details
Connection	Bluetooth 4.0 LE, iOS and Android
Supported Systems	Engine (3.6L and EcoDiesel), TCM, ABS, SRS, BCM, ITBC, TPMS (passive read through SGW)
Bidirectional Control	No; passive read only on all Gladiator JT models
FCA AutoAuth	Not required; passive module read through SGW without subscription
Diesel Coverage	P2xxx DPF, SCR, EGR manufacturer codes; live DPF soot load, reductant level, EGR position PIDs
Service Functions	Code read/clear, Repair Reports, live data, freeze frame, mode 6
Vehicle Compatibility	All 2020-2026 Jeep Gladiator JT; 3.6L and EcoDiesel 3.0L
Live Data	Up to 25 simultaneous PIDs

What’s Included

The package includes the BlueDriver Pro Bluetooth adapter with 16-pin OBD2 connector. The iOS and Android app is free with no subscription required.

Full system scan accesses ABS, SRS, TPMS, and transmission modules in addition to the engine ECU.

For Jeep Gladiator diagnostics, pinpoints which individual corner TPMS sensor is failing, rather than simply flagging a generic tire pressure warning.

In practice on the Jeep Gladiator, repair reports matched to VIN provide ASE-verified fixes so you know whether the recommended repair addresses the exact vehicle configuration.

Pros and Cons

Pros	Cons
Repair Reports pull technician-sourced fixes for JT-specific codes including EcoDiesel P2002, P20EE, P0400, and ITBC U0413 communication faults	Cannot perform bidirectional active tests on any Gladiator model; passive read only due to SGW restriction without AutoAuth
Reads manufacturer-specific EcoDiesel codes in the P2xxx range that generic OBD2 scanners without FCA protocol support cannot access
Live data supports DPF soot load percentage, reductant tank level, and EGR position alongside standard engine and drivetrain PIDs
No annual subscription; one-time hardware purchase with free app updates covers all Gladiator model years
Reads ITBC module communication faults with module-level identification for trailer brake circuit diagnosis
5,194-plus Amazon ratings at 4.4 stars with consistent coverage for FCA Jeep platforms across recent model years

My Final Verdict

The BlueDriver Bluetooth Pro is the best value for Gladiator owners who need to read and understand fault codes across all JT modules, access Repair Reports for EcoDiesel and ITBC DTCs, and monitor live data without paying for bidirectional capability or an annual subscription.

It does not replace an AutoAuth-capable tool for any Gladiator service that requires active tests. For owners who know they need DPF forced regeneration or EPB retraction, the TOPDON Phoenix Lite 2 is the minimum capable tool. The BlueDriver Pro is best used alongside a bidirectional scanner for complete Gladiator diagnostic coverage.

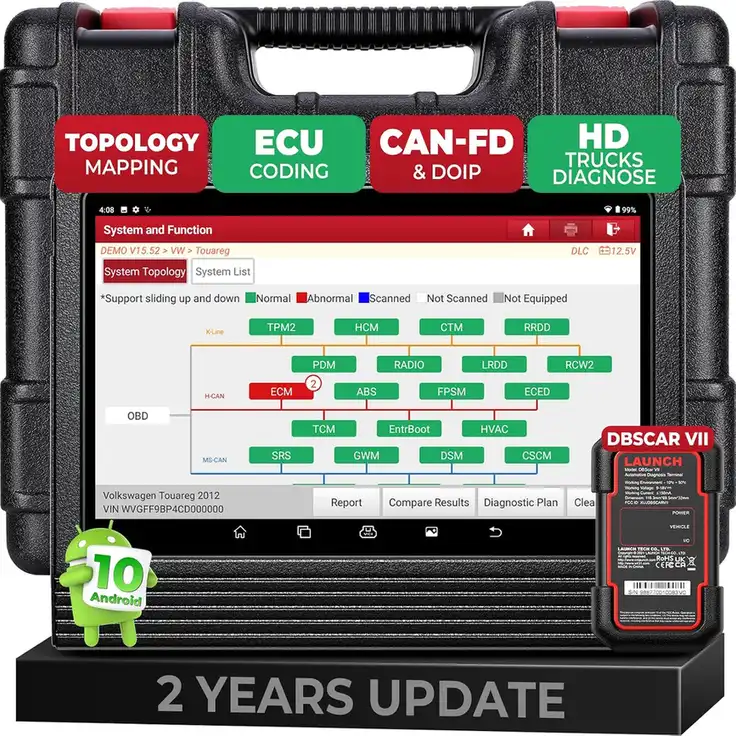

3. Launch X431 PRO3 V5.0: Best Premium for Jeep Gladiator

• J2534 PassThru enables WiTech 2.0 EcoDiesel ECM calibration updates and SKIM key programming on Jeep Gladiator JT
• FCA AutoAuth with full SGW bidirectional access; DPF forced regeneration, EGR active test, and ITBC trailer brake module coverage
• 1,559+ Amazon ratings at 4.4 stars; DoIP and CANFD for current and future Stellantis JT architecture

Overview

The PRO3 V5.0 earns its position as the best premium tool through one capability no other scanner in this guide provides: J2534 PassThru programming for the EcoDiesel ECM. When Stellantis releases calibration updates for the VM Motori 3.0L diesel, including DPF regeneration threshold recalibrations, injection timing updates for cold-start performance, and SCR dosing strategy revisions, those updates are applied through WiTech 2.0 dealer software over a J2534 hardware interface. The PRO3 V5.0 is J2534 compatible, which means it serves as the hardware gateway for WiTech 2.0 on an EcoDiesel Gladiator. No other mid-tier scanner handles this function, and it cannot be done with a standard bidirectional tool regardless of subscription level.

The PRO3 V5.0 runs on Android 11 with a 10.1-inch display and a wireless Bluetooth VCI that handles CAN, CANFD, DoIP, and J2534 PassThru protocols. FCA AutoAuth is included, giving full SGW access on the JT platform for bidirectional commands across all modules. For EcoDiesel Gladiator owners, this means DPF forced regeneration as a manual bidirectional sequence, EGR valve active test with full range of motion confirmation, SCR/DEF dosing pump actuation test to confirm DEF injection at the catalyst, and glow plug relay test for P0670 series circuit faults. The J2534 path adds ECM and TCM calibration update capability via WiTech 2.0, and SKIM key programming for security-system jobs that standard bidirectional tools cannot access at any price.

On the gasoline JT Gladiator, the PRO3 V5.0 reaches all modules behind the SGW with the same bidirectional depth as the TOPDON Phoenix Lite 2: TCCM Rock-Trac 4WD calibration, ITBC Integrated Trailer Brake Controller output tests and fault isolation, EPB retraction, throttle body initialization, and TPMS relearn via the service menu. On 4xe Gladiator builds from 2023 forward, it accesses the High Voltage Battery Pack Module and Drive Motor Generator Module with FCA AutoAuth active. The DoIP and CANFD protocol support handles current JT architecture and covers any future Stellantis updates to the Gladiator’s communication bus without requiring a hardware upgrade.

The PRO3 V5.0 carries a higher total cost of ownership than any other tool in this guide. The full WiTech 2.0 pass-through requires a paid Stellantis dealer software subscription separate from the Launch annual update fee, making it a meaningful ongoing cost for EcoDiesel owners who only occasionally need ECM calibration updates. The 10.1-inch display is the largest and heaviest form factor in this guide. For Gladiator owners who need the full bidirectional and DPF forced regeneration capability of the PRO3 V5.0 but not the J2534 ECM programming, the TOPDON Phoenix Lite 2 covers the same diagnostic functions at a lower price without the WiTech 2.0 subscription requirement.

J2534 PassThru on the EcoDiesel 3.0L covers the calibration update scenarios that aftermarket bidirectional scanners cannot address regardless of subscription level. Stellantis has released multiple EcoDiesel ECM calibration updates since the JT launched in 2020, including DPF regeneration threshold recalibrations to address premature P2002 codes at low mileage, injection timing strategy updates for cold-start white smoke on sub-freezing starts, and SCR dosing rate revisions for improved P20EE frequency in low-temperature operation. Each of these updates requires flashing the ECM through a J2534-compliant adapter running WiTech 2.0, and the PRO3 V5.0 is the hardware that enables this on a Gladiator EcoDiesel outside the dealer network.

SKIM key programming on the Gladiator JT requires FCA AutoAuth for SGW access plus bidirectional enrollment capability for the Sentry Key Remote Entry Module, and the PRO3 V5.0 covers both requirements. For 4xe Gladiator builds where the Hybrid Control Module communicates over DoIP rather than the standard CAN bus, the PRO3 V5.0’s DoIP protocol support ensures complete module coverage without the incomplete hybrid system access that older CAN-only tools provide. CANFD support extends coverage to any future Stellantis updates to the JT communication bus architecture, protecting the tool’s diagnostic capability across future model year Gladiators without requiring a hardware upgrade.

The PRO3 V5.0 makes sense for three types of Gladiator owners: those with an EcoDiesel who need ECM calibration updates that the dealer charges $250 or more to apply, those who have lost a key and face the dealer SKIM programming charge, or independent shops that service enough JT and JL builds to justify the WiTech 2.0 subscription across multiple jobs. For individual gasoline JT Gladiator owners who need FCA AutoAuth bidirectional access and EcoDiesel forced regen without J2534 programming, the TOPDON Phoenix Lite 2 at position one covers the same diagnostic functions at a lower total cost without the additional subscription requirement.

Specifications

Specification	Details
Connection	Wireless Bluetooth VCI, USB-C
Supported Systems	All JT modules via AutoAuth; EcoDiesel DPF, EGR, SCR, glow plugs; ITBC; SKIM; 4xe hybrid
Bidirectional Control	Yes, full bidirectional with FCA AutoAuth including DPF forced regen
FCA AutoAuth	Yes, included
J2534 PassThru	Yes, WiTech 2.0 compatible for EcoDiesel ECM/TCM calibration and SKIM key programming
Diesel Coverage	DPF forced regen, EGR active test, SCR dosing pump actuation, glow plug relay test
Vehicle Compatibility	150+ makes; 2020-2026 Gladiator JT all engines; 2023+ 4xe
Display	10.1-inch Android 11 touchscreen

What’s Included

The package includes the X431 PRO3 V5.0 tablet, wireless Bluetooth VCI, OBD2 cable, USB cable, and carry case.

For Jeep Gladiator diagnostics, 55+ service functions cover oil reset, EPB, BMS, TPMS, SAS, DPF, injector coding, throttle relearn, and more.

In practice on the Jeep Gladiator, compatible with Hyundai, Kia, and Chrysler (including Jeep) for full system access with bidirectional testing.

Covers 200+ vehicle brands including domestic, European, and Asian makes from 1996 through current year.

Pros and Cons

Pros	Cons
J2534 PassThru enables WiTech 2.0 compatibility for EcoDiesel ECM and TCM calibration updates including DPF regen threshold recalibration	Full WiTech 2.0 programming requires a paid Stellantis dealer software subscription on top of the Launch annual update fee
SKIM key programming and BCM-level coding available through WiTech 2.0 pass-through, not possible with any other tool in this guide
DPF forced regeneration, EGR active test, and SCR dosing pump actuation cover the full EcoDiesel diesel system bidirectional sequence
ITBC bidirectional tests command trailer brake output and isolate U0413 communication faults at the module level
FCA AutoAuth covers full SGW access on JT Gladiator for bidirectional commands across all modules
DoIP and CANFD protocol support covers current JT architecture and future Stellantis platform updates
4xe High Voltage Battery Pack Module access with FCA AutoAuth active on 2023-plus Gladiator PHEV builds

My Final Verdict

The Launch X431 PRO3 V5.0 is the right tool for EcoDiesel Gladiator owners who need J2534 PassThru access for WiTech 2.0 ECM calibration updates, SKIM key programming, or any programming function that goes beyond what an authenticated bidirectional scanner can do without dealer software.

For Gladiator owners who need full EcoDiesel bidirectional diagnostics without ECM programming, the TOPDON Phoenix Lite 2 covers DPF forced regeneration, EGR active test, and SCR diagnostics at a lower total cost of ownership without the WiTech 2.0 subscription requirement.

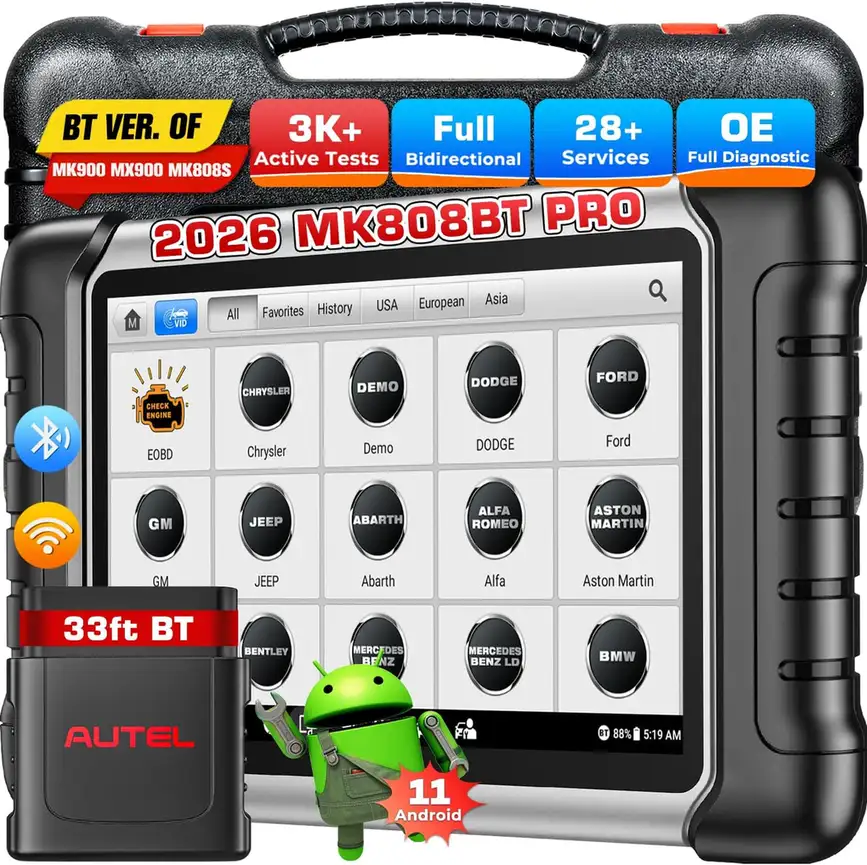

4. Autel MK808BT PRO V2: Best FCA AutoAuth Tablet for Jeep Gladiator

• FCA AutoAuth covers full JT SGW bidirectional access with 3,000-plus active tests across all gasoline and diesel Gladiator modules
• Wireless Bluetooth VCI with ITBC trailer brake output test, TCCM 4WD calibration, and EPB retraction on all JT trim levels
• 548+ Amazon ratings at 4.6 stars; TPMS relearn, ABS bleed, and throttle body initialization included

Overview

The MK808BT PRO V2 fills a clear position in the Gladiator lineup: FCA AutoAuth bidirectional access at a price below the TOPDON Phoenix Lite 2 and the Launch PRO3, for gasoline JT owners who want full module-level active tests without paying for EcoDiesel DPF forced regeneration capability they do not need. It is the highest-rated tool in this guide at 4.6 stars, and its bidirectional test library covers every service function a gasoline Pentastar 3.6L Gladiator owner regularly needs, including ITBC trailer brake module access that most guides for Gladiator owners never address.

The MK808BT PRO V2 connects via wireless Bluetooth VCI using Autel’s proprietary adapter, which handles FCA CAN protocols natively. FCA AutoAuth is active through Autel’s annual FCA vehicle subscription, giving full SGW access on the JT platform. The bidirectional test library covers more than 3,000 active test commands across all supported FCA module types. For Gladiator-specific functions, this includes ITBC trailer brake output test commands for confirming trailer brake gain calibration and output circuit integrity, TCCM Rock-Trac 4WD engagement confirmation and transfer case calibration, and EPB retraction for rear caliper brake service that cannot be performed manually on the JT platform without a scanner. Live data streams via the AUTEL app with customizable PID selection across engine, drivetrain, body, and chassis.

My Bluetooth OBD2 scanner guide compares app-based wireless tools for owners who prefer to diagnose from a phone or tablet rather than a dedicated handheld unit.

On the gasoline JT Gladiator, the MK808BT PRO V2 accesses all modules behind the SGW: PCM for 3.6L Pentastar fault codes and live data including fuel trim, MAF, and coolant temperature; TCM for 8HP75 automatic transmission shift adaptation data and torque converter clutch diagnostics; ABS module for wheel speed sensor identification and hydraulic pump circuit codes; TCCM for 4WD engagement codes and transfer case motor position data; BCM for body electrical faults and TIPM-related communication codes; and SRS for airbag and seat belt pre-tensioner faults. On EcoDiesel builds, it reads all diesel-specific manufacturer codes and live DPF soot load and SCR reductant data, but it does not support DPF forced regeneration as a manual bidirectional sequence. For DPF service on the EcoDiesel, the TOPDON Phoenix Lite 2 is the minimum capable tool.

The MK808BT PRO V2 does not support J2534 PassThru programming, which means SKIM key programming and ECM calibration updates are outside its capability set. The FCA AutoAuth subscription is annual, adding a recurring cost beyond the initial hardware price. For Gladiator owners who do not need EcoDiesel DPF forced regeneration and are not concerned with J2534 programming, the MK808BT PRO V2 is the most cost-effective path to full FCA AutoAuth bidirectional access in this guide. Its 4.6-star customer satisfaction rating, the highest of any bidirectional tool here, reflects consistent real-world performance across the FCA platform.

Specifications

Specification	Details
Connection	Wireless Bluetooth VCI
Supported Systems	All JT SGW modules via AutoAuth; ITBC, TCCM, ABS, SRS, BCM, TCM, PCM
Bidirectional Control	Yes, 3,000+ active tests
FCA AutoAuth	Yes, Autel FCA annual subscription
Diesel Coverage	Reads EcoDiesel codes and live data; no DPF forced regeneration sequence
Service Functions	36+ including EPB, TPMS relearn, oil reset, ABS bleed, throttle body, ITBC output test
Vehicle Compatibility	150+ makes; 2020-2026 Gladiator JT all trim levels; 3.6L and EcoDiesel
Display	7-inch Android touchscreen

What’s Included

The package includes the MK808BT PRO V2 tablet, wireless Bluetooth VCI adapter, OBD2 cable, USB-C cable, and carry case.

For Jeep Gladiator diagnostics, bidirectional commands test windows, mirrors, fuel pumps, and cooling fans by actuating each component directly from the menu.

In practice on the Jeep Gladiator, the scanner works on 150+ vehicle brands across the US, Europe, and Asia.

Does NOT support ECU coding, which limits its usefulness for European module replacements requiring adaptation.

Pros and Cons

Pros	Cons
FCA AutoAuth covers full JT SGW bidirectional access for all gasoline Gladiator modules without a physical bypass cable	Does not support DPF forced regeneration as a manual sequence on the EcoDiesel 3.0L; reads codes but cannot command regeneration
ITBC Integrated Trailer Brake Controller output test confirms trailer brake gain and output circuit integrity on tow-equipped Gladiator builds
TCCM Rock-Trac 4WD calibration and engagement confirmation via bidirectional active tests across all JT 4WD configurations
EPB retraction supports rear caliper brake service on JT Gladiator without requiring a separate manual retraction tool
3,000-plus active test commands reach every standard service function on the gasoline JT platform
Highest customer satisfaction rating of any bidirectional tool in this guide at 4.6 stars across 548-plus Amazon ratings
Wireless Bluetooth VCI provides physical flexibility for active tests during engine-running diagnostics on the Gladiator

My Final Verdict

The Autel MK808BT PRO V2 is the right tool for gasoline JT Gladiator owners who want full FCA AutoAuth bidirectional access at the lowest price among authenticated tools in this guide. At 4.6 stars it is the highest-rated bidirectional scanner here, and its 3,000-plus active test library covers every standard service function a Pentastar 3.6L Gladiator owner needs.

EcoDiesel owners who need DPF forced regeneration should choose the TOPDON Phoenix Lite 2 instead. The MK808BT PRO V2 reads EcoDiesel codes and live data with AutoAuth active, but the DPF manual regeneration sequence requires the Phoenix Lite 2’s bidirectional depth for that specific diesel module function.

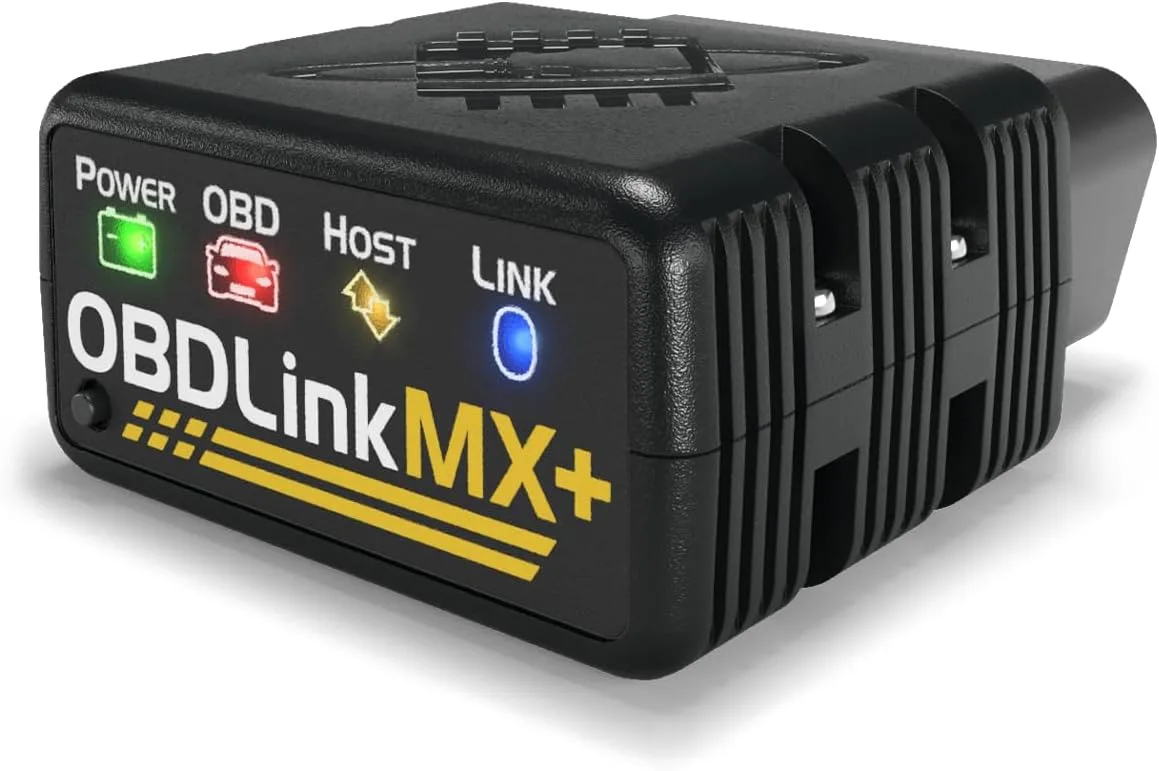

5. OBDLink MX+: Best App-Based Scanner for Jeep Gladiator

• JScan compatibility gives JT Gladiator owners trailer brake gain calibration, axle ratio programming, and TCCM recalibration via a one-time app license
• AllPro 2.0 chip handles FCA-proprietary CAN protocols that generic ELM327 adapters fail to negotiate on the JT platform
• 15,583+ Amazon ratings at 4.3 stars; passive code read on all Gladiator modules through the SGW without AutoAuth

Overview

The OBDLink MX+ earns its position through a combination that no other Bluetooth adapter matches for Gladiator-specific app-based diagnostics: native support for JScan, which provides JT Gladiator-specific coding and calibration functions that a standard scan tool cannot access, paired with hardware that negotiates the FCA-proprietary CAN bus protocols that generic ELM327 adapters fail to handle. For Gladiator owners who tow regularly and want to calibrate the trailer brake gain, recalibrate the transfer case after a lift kit, or adjust axle ratio after a gear change, JScan with the OBDLink MX+ is the most cost-effective path to those specific functions available in a Bluetooth form factor.

The MX+ uses OBDLink’s AllPro 2.0 chip, which handles multi-protocol CAN, ISO 15765, and the FCA-specific CAN bus protocols that generic Bluetooth OBD2 adapters fail to negotiate beyond basic emission-system access. When paired with JScan on the JT Gladiator, the combination accesses trailer brake gain calibration for the ITBC module, axle ratio programming for front and rear differential configuration after gear changes, TCCM Rock-Trac transfer case recalibration after lift kit installation, and variant coding for body module options including LED headlight behavior, fog light configuration, and tire size calibration for speedometer correction. The JScan license is a one-time purchase per vehicle with no annual fee.

My OBDLink MX+ review covers the JScan integration, Gladiator JT-specific test coverage, and the no-subscription licensing model in detail.

On the JT Gladiator, the MX+ through JScan reads codes from the PCM covering both 3.6L Pentastar and EcoDiesel 3.0L with FCA manufacturer-specific DTC descriptions, TCM shift adaptation data for the 8HP75 automatic transmission, BCM body electrical codes with TIPM-related communication fault identification, TCCM 4WD engagement and transfer case motor codes, and ITBC trailer brake communication faults in the U0413 range. For EcoDiesel owners, JScan reads DPF soot load percentage and SCR reductant level as live data PIDs. The passive read through the SGW without AutoAuth gives JT owners full-system code access without the subscription cost, at the expense of bidirectional active test capability.

The OBDLink MX+ is not a bidirectional tool in the conventional sense. JScan supports variant coding and module configuration functions on the JT, but it cannot command DPF forced regeneration, EPB retraction, throttle body initialization, or ABS pump actuation. The SGW blocks all authenticated active tests without AutoAuth, so the MX+ is passive for any command that requires gateway authentication. It is best used as a specialist tool for JScan-specific functions alongside a full-system AutoAuth scanner, or as a standalone passive reader for Gladiator owners whose primary need is code reading, live data, and the JScan-specific calibration functions that no standard scan tool provides.

Specifications

Specification	Details
Connection	Bluetooth 4.0, iOS and Android
Supported Systems	All JT modules passive read through SGW; ITBC, TCCM, EcoDiesel codes via JScan
Bidirectional Control	ITBC trailer brake calibration, axle ratio programming, TCCM recalibration via JScan; no standard active tests
FCA AutoAuth	Not required; passive read through SGW plus JScan-specific coding without subscription
JScan Functions	Trailer brake gain calibration, axle ratio programming, TCCM recalibration, tire size, variant coding
Diesel Coverage	EcoDiesel DPF soot load and SCR reductant level as live data PIDs via JScan; no forced regen
Vehicle Compatibility	All 2020-2026 Gladiator JT; 3.6L and EcoDiesel 3.0L
Live Data	25+ simultaneous FCA-specific PIDs including diesel DPF and SCR parameters

What’s Included

The package includes the OBDLink MX+ Bluetooth adapter with 16-pin OBD2 connector. iOS and Android compatible; JScan app purchased separately with a one-time vehicle license fee.

For Jeep Gladiator diagnostics, compatible with Torque, FORScan Lite, DashCommand, RealDash, and AlfaOBD, making it useful with nearly every third-party diagnostic app.

In practice on the Jeep Gladiator, 2mA sleep mode means leaving it plugged in between uses does not drain the car battery over days.

Verified 2mA sleep current confirmed by third-party measurement, unlike some competitors that claim low current but do not achieve it.

Pros and Cons

Pros	Cons
JScan trailer brake gain calibration for the ITBC module is not available through any standard scan tool at any price point	Cannot perform authenticated bidirectional active tests on any Gladiator JT without AutoAuth; passive read and JScan functions only
Axle ratio programming after gear changes and TCCM recalibration after lift kit installation via JScan one-time license
AllPro 2.0 chip negotiates FCA-proprietary CAN protocols that generic ELM327 adapters fail on the JT platform
EcoDiesel DPF soot load and SCR reductant level as JScan live data PIDs without an AutoAuth subscription
One-time JScan license with no annual fee makes total ownership cost significantly lower than AutoAuth-based tools over three or more years
15,583-plus Amazon ratings at 4.3 stars with consistent FCA Jeep platform compatibility across recent hardware batches

My Final Verdict

The OBDLink MX+ is the right choice for Gladiator owners who tow regularly and need ITBC trailer brake gain calibration, or who have modified their build with a lift kit, gear change, or larger tires and need the JScan-specific calibration functions that standard scan tools cannot access.

For Gladiator owners who primarily need full bidirectional access and EcoDiesel forced regeneration, the OBDLink MX+ is not a substitute for the TOPDON Phoenix Lite 2 or Autel MK808BT PRO V2. It works best as a JScan-specific companion tool alongside an authenticated scanner, or as a standalone passive reader for owners who only need code access and JScan coding.

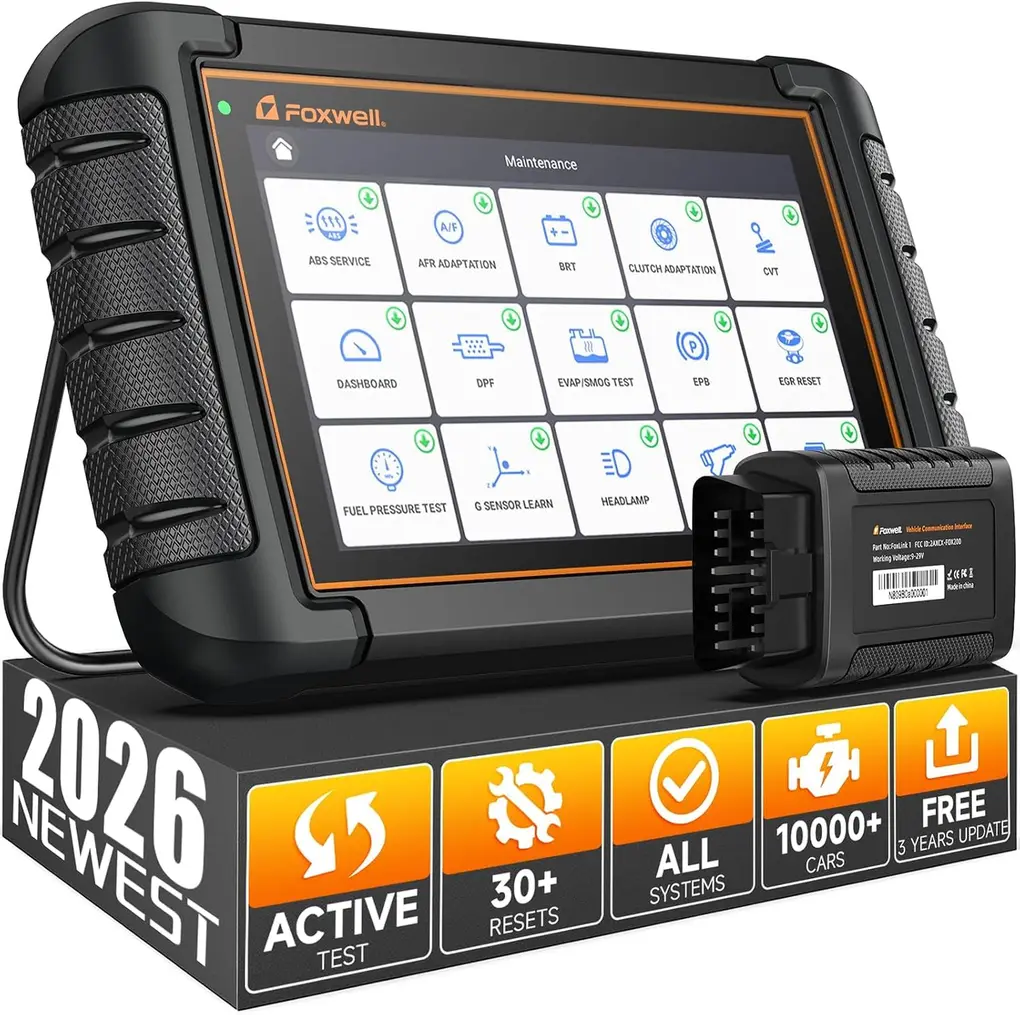

6. Foxwell NT809BT: Best Wireless Bidirectional Scanner for Jeep Gladiator

• FCA AutoAuth with wireless VCI delivers full JT SGW bidirectional access without cable management during active tests
• ITBC Integrated Trailer Brake Controller module access, TCCM Rock-Trac 4WD calibration, and EPB retraction across all JT trim levels
• 279+ Amazon ratings at 4.3 stars; TPMS relearn with RF trigger support for lifted Gladiator builds; 4xe Battery Pack Module live data

Overview

The NT809BT positions itself at number six because it delivers something neither the Autel MK808BT PRO V2 nor the Launch PRO3 V5.0 combines in a single package at its price: FCA AutoAuth bidirectional access through a dedicated wireless VCI with a 30-plus service function library that reaches the Gladiator’s ITBC trailer brake module, TCCM 4WD calibration, and TPMS relearn in one tool. The wireless VCI is not a gimmick for Gladiator owners who tow. Running ITBC output tests and gain calibration confirmation with the truck connected to a trailer requires the scanner to remain live during a physical brake test, and a cable running from the OBD2 port to a handheld display creates practical limitations that the wireless setup eliminates entirely.

The NT809BT runs on a 7-inch Android display with a dedicated wireless VCI that handles FCA CAN and CANFD protocols for the JT Gladiator. FCA AutoAuth is bundled in the Foxwell update subscription, covering the annual fee Stellantis charges for gateway access. With AutoAuth active, the NT809BT reaches all modules behind the SGW for bidirectional active tests including ITBC trailer brake output commands to verify brake gain and output circuit continuity, TCCM Rock-Trac active tests for 4WD engagement confirmation and transfer case calibration after a suspension lift, EPB retraction for rear caliper service, and throttle body initialization. On the EcoDiesel 3.0L, it reads all diesel-specific manufacturer codes with AutoAuth active and provides live DPF soot load and SCR reductant data, but the DPF forced manual regeneration sequence requires the TOPDON Phoenix Lite 2 for that specific bidirectional command depth.

On the JT Gladiator, the NT809BT accesses the PCM for 3.6L Pentastar and EcoDiesel engine fault codes with module-level descriptions beyond the standard SAE set, the 8HP75 TCM for automatic transmission shift adaptation and torque converter clutch codes, the ABS module for wheel speed sensor faults and hydraulic pump circuit codes, the BCM for body electrical faults and TIPM-related communication codes, and the SRS module for airbag deployment and seat belt pre-tensioner faults. TPMS relearn is supported via the built-in service menu with RF trigger signal at both 315 MHz and 433 MHz, which covers Gladiator owners who run aftermarket 35- or 37-inch tires with new wheels and need to relearn sensor IDs after each wheel swap. On 4xe Gladiator builds from 2023 forward, it accesses the High Voltage Battery Pack Module for state of charge and state of health live data.

The NT809BT’s FCA AutoAuth subscription is annual and device-specific, which means each scanner requires its own subscription renewal. For Gladiator owners who want to avoid the annual fee entirely, the OBDLink MX+ with JScan provides passive code access and JScan-specific calibration functions without any subscription cost. For EcoDiesel owners who need DPF forced regeneration specifically, the TOPDON Phoenix Lite 2 is the minimum capable tool and provides that function at a comparable price to the NT809BT. The NT809BT is the right choice for gasoline and 4xe JT owners who prioritize wireless mobility during active test sessions over EcoDiesel DPF depth or J2534 programming access.

Specifications

Specification	Details
Connection	Wireless Bluetooth VCI, USB-C
Supported Systems	All JT SGW modules via AutoAuth; ITBC, TCCM, ABS, SRS, BCM, 4xe HV battery
Bidirectional Control	Yes, 30+ active tests
FCA AutoAuth	Yes, included in Foxwell update subscription
Diesel Coverage	EcoDiesel codes and live DPF/SCR data with AutoAuth; no DPF forced regeneration sequence
Service Functions	30+ including EPB, TPMS relearn, oil reset, throttle body, ITBC output test, ABS bleed
Vehicle Compatibility	150+ makes; 2020-2026 Gladiator JT; 3.6L and EcoDiesel; 2023+ 4xe
Display	7-inch Android touchscreen

What’s Included

The package includes the NT809BT tablet, wireless VCI adapter, OBD2 extension cable, USB-C cable, and a carry case.

On the Jeep Gladiator, auto-VIN identifies the vehicle model immediately after connecting, eliminating the manual make-model-year selection.

Plain-language fault code explanations let non-technicians understand the issue without looking up the code separately.

For Jeep Gladiator diagnostics, minimal lag during ABS and engine RPM live data streaming, with smooth graph updates during a road test.

Pros and Cons

Pros	Cons
Wireless VCI eliminates cable management during ITBC trailer brake output tests and gain calibration confirmation on tow-equipped Gladiators	FCA AutoAuth subscription is annual and device-specific, adding a recurring cost on top of the initial hardware price
FCA AutoAuth covers full JT SGW bidirectional access without a physical bypass cable or additional hardware
TCCM Rock-Trac 4WD calibration and engagement confirmation for transfer case diagnostics after lift kit installation
TPMS relearn with 315 MHz and 433 MHz RF trigger handles aftermarket sensors on lifted Gladiator builds
4xe High Voltage Battery Pack Module state of charge and state of health live data on 2023-plus Gladiator PHEV builds
Reads EcoDiesel manufacturer-specific codes and live DPF soot load and SCR reductant data with AutoAuth active
EPB retraction and ABS brake bleed service functions cover all standard JT brake service operations

My Final Verdict

The Foxwell NT809BT is the right choice for gasoline and 4xe JT Gladiator owners who want wireless FCA AutoAuth bidirectional access, ITBC trailer brake module diagnostics, and TPMS relearn in a single tool without cable management constraints during active test sessions.

EcoDiesel owners who specifically need DPF forced regeneration as a manual bidirectional sequence should choose the TOPDON Phoenix Lite 2 instead. For owners who do not need that diesel-specific function, the NT809BT’s wireless VCI delivers everything else the Gladiator JT platform requires at a competitive price.

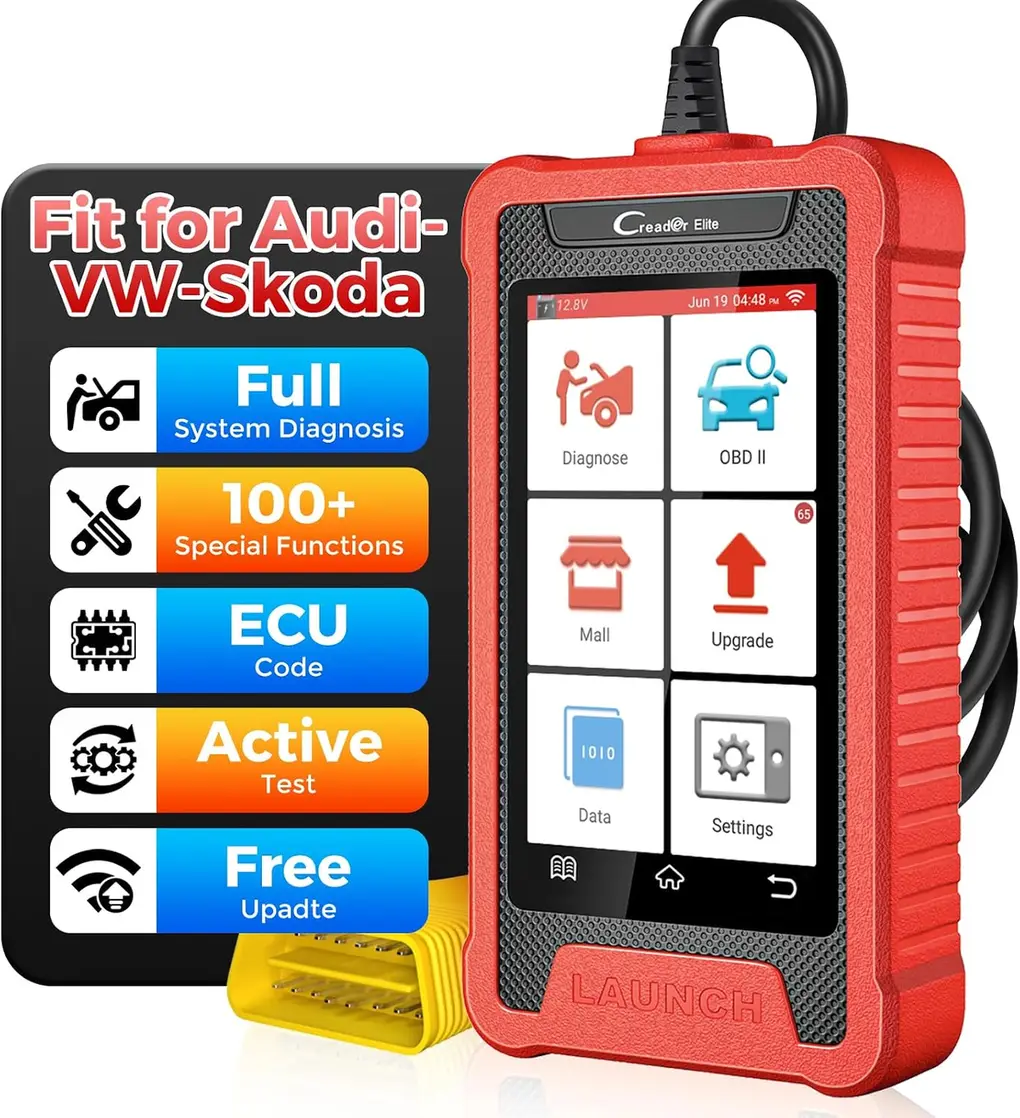

7. Launch Creader Elite 1.0: Best Budget Bidirectional Scanner for Jeep Gladiator

• FCA AutoAuth covers full JT SGW bidirectional access at the lowest price among authenticated tools in this guide
• Bidirectional active tests include EPB retraction, TCCM 4WD calibration, ABS brake bleed, and throttle body initialization on all JT trim levels
• 1,849+ Amazon ratings at 4.5 stars; ITBC trailer brake module code reading and output test commands on tow-equipped Gladiator builds

Overview

The Creader Elite 1.0 addresses a gap in the Gladiator scanner market that matters specifically because every JT has the Security Gateway Module: the gap between passive code readers that cost under $150 and authenticated bidirectional tools that start at $250 and above. The Creader Elite 1.0 provides FCA AutoAuth and genuine bidirectional active tests at a price that sits below every other authenticated tool in this guide. For a gasoline JT Gladiator owner who needs EPB retraction, TCCM calibration, and ITBC trailer brake module access through the SGW, it is the most cost-effective entry point to real bidirectional capability on the Gladiator platform.

The Creader Elite 1.0 connects via Bluetooth 5.0 and pairs with the Launch app on iOS and Android. FCA AutoAuth is active through the Launch update subscription, giving full SGW access on the JT platform. The bidirectional test library for FCA Chrysler-Jeep-Dodge-Ram vehicles covers actuator commands for EPB retraction, throttle body initialization, ABS pump actuation and brake bleed sequence, cooling fan operation test, fuel pump prime, and oil life reset. For tow-equipped Gladiator owners, it accesses the ITBC Integrated Trailer Brake Controller module to read communication fault codes in the U0413 series with module-level identification and to perform trailer brake output test commands that confirm brake controller gain and output circuit function. TCCM 4WD diagnostics cover Rock-Trac engagement codes with active test commands for transfer case motor function.

On the JT Gladiator, the Creader Elite 1.0 reads and clears codes from all modules behind the SGW with AutoAuth active: PCM for 3.6L Pentastar engine faults with manufacturer-specific DTC descriptions, 8HP75 TCM for automatic transmission shift adaptation codes, ABS module for wheel speed sensor and hydraulic pump faults, BCM for body electrical and TIPM-related communication codes, SRS for airbag deployment codes, and ITBC for trailer brake communication faults. On EcoDiesel builds, it reads diesel-specific manufacturer codes in the P2xxx range with AutoAuth active, including DPF efficiency codes and SCR reductant quality codes, and provides live DPF soot load and reductant level data. It does not support DPF forced regeneration as a manual bidirectional sequence, which limits its value for EcoDiesel owners dealing with soot load buildup.

The Creader Elite 1.0 has narrower bidirectional depth than the TOPDON Phoenix Lite 2, Autel MK808BT PRO V2, and Foxwell NT809BT. The active test library covers standard service functions but does not reach the complete set of module-specific actuation commands that higher-tier authenticated tools provide. ECU coding functions are not supported. On EcoDiesel builds, the absence of DPF forced regeneration limits its diagnostic value for the most common EcoDiesel service operation. For Gladiator owners on a strict budget who need the minimum viable authenticated bidirectional access through the SGW, the Creader Elite 1.0 delivers that capability. For owners who need the full active test depth the Gladiator platform demands, the TOPDON Phoenix Lite 2 or Autel MK808BT PRO V2 are the appropriate tools.

Specifications

Specification	Details
Connection	Bluetooth 5.0, iOS and Android
Supported Systems	All JT SGW modules via AutoAuth; ITBC, TCCM, ABS, SRS, BCM, TCM
Bidirectional Control	Yes, standard FCA active tests including EPB, ABS bleed, throttle body, ITBC output test
FCA AutoAuth	Yes, Launch annual update subscription
Diesel Coverage	EcoDiesel manufacturer codes and live DPF/SCR data; no DPF forced regeneration
Service Functions	EPB, oil reset, throttle body, ABS bleed, TPMS reset, battery reset, ITBC output test
Vehicle Compatibility	150+ makes; 2020-2026 Gladiator JT; 3.6L and EcoDiesel 3.0L
Live Data	Customizable PID selection; EcoDiesel DPF soot load and SCR reductant level

What’s Included

The package includes the Creader Elite 1.0 Bluetooth adapter, OBD2 cable, and USB cable. The Launch app is free on iOS and Android.

For Jeep Gladiator diagnostics, color display shows live data and fault code information with clear menus.

In practice on the Jeep Gladiator, lifetime free software updates provided after purchase for ongoing vehicle coverage.

Some users report certain special functions require payment for unlocking specific features.

Pros and Cons

Pros	Cons
FCA AutoAuth at the lowest price among authenticated bidirectional tools in this guide, making it the most accessible entry point to full JT SGW access	Bidirectional active test library is narrower than the Autel MK808BT PRO V2 and TOPDON Phoenix Lite 2; some module-specific actuation commands not available
ITBC Integrated Trailer Brake Controller output test commands and U0413 communication fault code reading on tow-equipped Gladiator builds
EPB retraction and ABS brake bleed service functions cover standard JT brake service operations
TCCM Rock-Trac 4WD engagement codes and transfer case active tests on all JT 4WD configurations
1,849-plus Amazon ratings at 4.5 stars, the second-highest satisfaction score among bidirectional tools in this guide
Reads EcoDiesel manufacturer-specific DPF and SCR codes with AutoAuth active and live DPF soot load data

My Final Verdict

The Launch Creader Elite 1.0 is the right choice for gasoline JT Gladiator owners who need the minimum viable FCA AutoAuth bidirectional access at the lowest price in this guide. It handles the standard active tests, ITBC trailer brake module commands, and TCCM 4WD diagnostics that define Gladiator service needs.

EcoDiesel owners who need DPF forced regeneration should step up to the TOPDON Phoenix Lite 2. For owners who need deeper bidirectional coverage without the budget constraint, the Autel MK808BT PRO V2 provides a broader active test library at a moderate premium over the Creader Elite 1.0.

8. Autel MaxiDAS DS808S: Best Advanced Scanner for Jeep Gladiator 4xe

• High Voltage Battery Pack Module access with individual cell voltage, SOC, SOH, and thermal management live data on 2023-plus Gladiator 4xe
• ECU coding for FCA platforms includes 4xe Hybrid Control Module variant coding and EcoDiesel SCR dosing configuration not available on the MK808BT PRO V2
• 819+ Amazon ratings at 4.4 stars; FCA AutoAuth with full JT SGW bidirectional access and wireless MaxiVCI Mini adapter

Overview

The DS808S occupies a specific position in the Gladiator guide: it is the right tool for 4xe Gladiator owners who have hit the ceiling of the Autel MK808BT PRO V2’s hybrid module coverage, and for EcoDiesel owners who need ECU coding depth for SCR dosing strategy configuration beyond what standard bidirectional tools can access. The 4xe Gladiator launched in 2023, later than the Wrangler 4xe, and its High Voltage Battery Pack Module and Drive Motor Generator Module require both FCA AutoAuth and hybrid-specific software coverage to access with meaningful diagnostic depth. The DS808S provides that coverage along with an ECU coding function set the MK808BT PRO V2 does not support.

The DS808S runs on a 7-inch Android display and connects via Autel’s MaxiVCI Mini wireless adapter, which handles FCA CAN and CANFD protocols across all JT Gladiator builds. FCA AutoAuth is active through the Autel annual vehicle subscription, giving full SGW access on the JT platform. The ECU coding function set differentiates the DS808S from the MK808BT PRO V2: it supports Autel’s active coding protocol for FCA vehicles, which includes module variant coding for the 4xe Hybrid Control Module, EcoDiesel SCR dosing system configuration, transmission option coding, and body module option reconfiguration after component replacement. These coding functions go beyond service resets and active tests into the domain of module parameter reconfiguration that usually requires dealer software access.

On the 4xe Gladiator from 2023 forward, the DS808S accesses the High Voltage Battery Pack Module for individual cell voltage monitoring across all battery cells, state of charge, state of health percentage, and thermal management live data including coolant temperature at the battery pack inlet and outlet. The Drive Motor Generator Module provides torque output, RPM, temperature, and inverter status. The Hybrid Control Module shows charge management mode, regenerative braking status, and PHEV operating mode live data. On gasoline and EcoDiesel JT builds, it delivers the same coverage as the MK808BT PRO V2, plus the ECU coding functions and the ITBC trailer brake output test with bidirectional commands through the SGW.

The DS808S does not reach J2534 PassThru programming capability, so EcoDiesel ECM calibration updates via WiTech 2.0 and SKIM key programming remain outside its range. For Gladiator owners who do not own a 4xe or need ECU coding, the Autel MK808BT PRO V2 provides comparable everyday diagnostic coverage at a lower price. The DS808S is the correct choice over the MK808BT PRO V2 only when the specific diagnostic need is 4xe hybrid module depth, ECU coding functions, or EcoDiesel SCR system configuration. For those specific needs it is the best tool in this guide short of the Launch PRO3 V5.0.

Specifications

Specification	Details
Connection	Wireless MaxiVCI Mini Bluetooth adapter
Supported Systems	All JT SGW modules; 4xe HV Battery, Drive Motor Generator, Hybrid Control Module; ITBC
Bidirectional Control	Yes, full bidirectional with FCA AutoAuth
FCA AutoAuth	Yes, Autel annual vehicle subscription
ECU Coding	Yes, 4xe Hybrid Control Module, EcoDiesel SCR configuration, transmission and body module coding
Diesel Coverage	EcoDiesel codes, live DPF/SCR data, SCR dosing ECU coding; no DPF forced regeneration sequence
Vehicle Compatibility	150+ makes; 2020-2026 Gladiator JT all engines; 2023+ 4xe PHEV
Display	7-inch Android touchscreen

What’s Included

The package includes the DS808S tablet, MaxiVCI Mini Bluetooth adapter, OBD2 cable, USB-C cable, and carry case.

The scanner accessed all ECU modules including PCM, ECM, EPS, PDM, TPM, BCM, ABS, and SCCM in a single auto scan.

For Jeep Gladiator diagnostics, oE-level diagnosis on ABS, SRS, Engine, Transmission, and Brake systems with manufacturer-specific code coverage.

In practice on the Jeep Gladiator, wireless Bluetooth operation reads and clears codes without a tethered connection to the OBD2 port.

Pros and Cons

Pros	Cons
High Voltage Battery Pack Module access with individual cell voltage, SOC, SOH, and thermal management live data on 2023-plus Gladiator 4xe	Does not support J2534 PassThru programming for EcoDiesel ECM calibration updates or SKIM key coding via WiTech 2.0
Drive Motor Generator Module live data including torque output, RPM, temperature, and inverter status for 4xe PHEV diagnostics
ECU coding for FCA platforms covers 4xe Hybrid Control Module variant coding and EcoDiesel SCR dosing configuration
FCA AutoAuth covers full JT SGW bidirectional access across all modules including ITBC trailer brake output commands
Wireless MaxiVCI Mini adapter handles FCA CANFD for current JT architecture across all Gladiator model years
Transmission option coding and body module reconfiguration after component replacement covers Gladiator-specific build variants
TCCM Rock-Trac bidirectional tests and calibration cover all JT 4WD configurations including the Rubicon trim’s Rock-Trac transfer case

My Final Verdict

The Autel MaxiDAS DS808S is the right tool for Gladiator 4xe owners who need cell-level battery diagnostics and Hybrid Control Module ECU coding, and for EcoDiesel owners who need SCR dosing system configuration depth beyond what standard bidirectional tools provide.

For gasoline JT owners who do not need 4xe hybrid module depth or ECU coding, the Autel MK808BT PRO V2 at position four delivers comparable everyday diagnostic coverage at a lower price. The DS808S earns its cost only when the 4xe module depth or ECU coding functions are a specific diagnostic need.

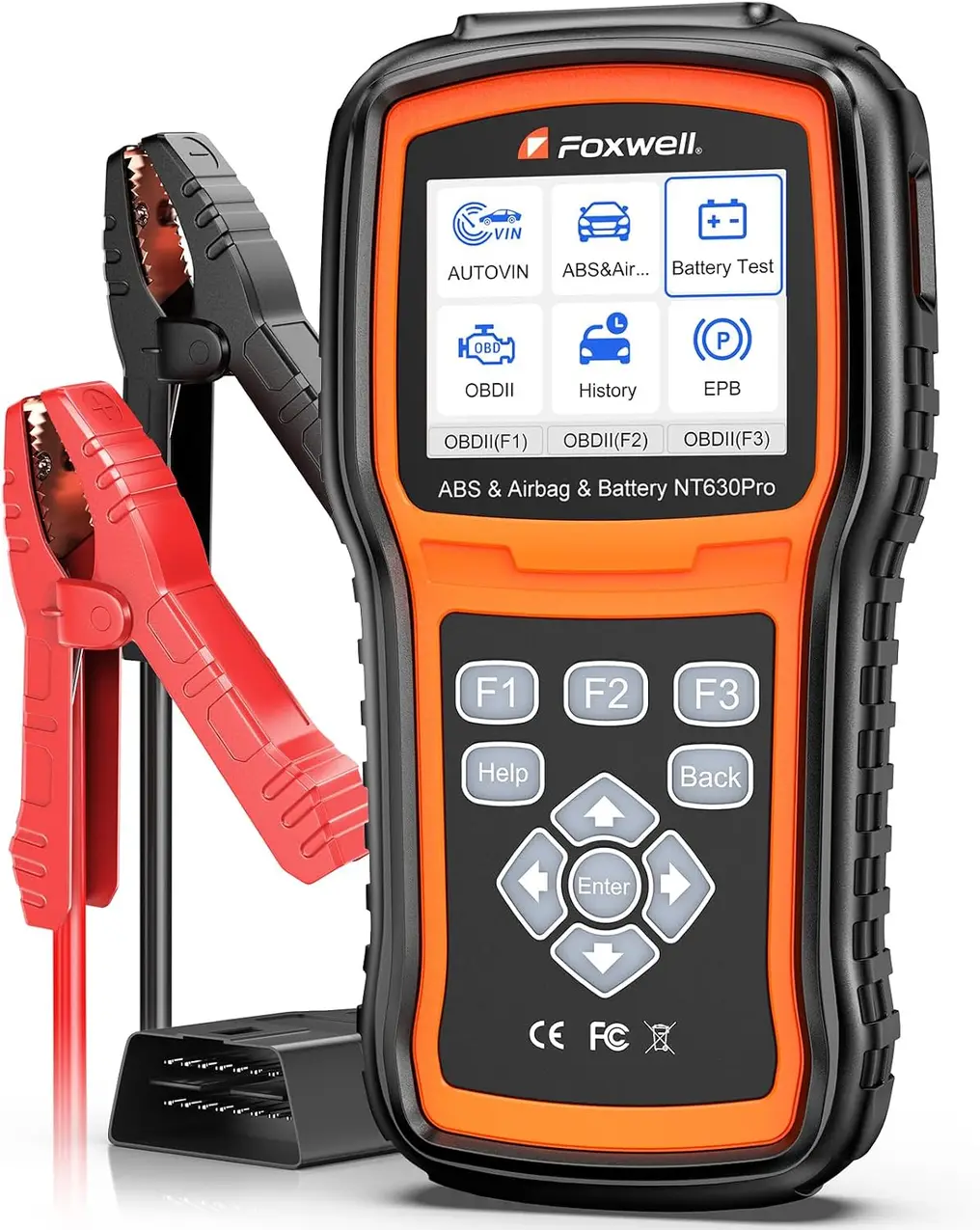

9. Foxwell NT630 Pro: Best TPMS and ABS Scanner for Jeep Gladiator

• Full TPMS service covers sensor triggering, ID reading, aftermarket programming, and module relearn for lifted Gladiator builds with new wheel and tire setups
• Built-in 315 MHz and 433 MHz RF covers factory JT Gladiator sensor frequencies without an external trigger tool
• 3,988+ Amazon ratings at 4.3 stars; ABS brake bleed and SRS code reading across all Gladiator model years and trim levels

Overview

The NT630 Pro fills a specialist gap in the Gladiator guide that is relevant to every owner who runs oversized tires or swaps between a street setup and a trail setup. Every time aftermarket wheels and sensors replace the factory units on a Gladiator JT, the TPMS control module loses its stored sensor IDs and the TPMS warning light stays on until the module relearns all four sensors. Clearing the code does not fix this; the module needs to learn new IDs through an RF-trigger relearn sequence that requires a scanner with built-in signal capability. Most full-system scanners in this guide can read the resulting TPMS DTC, but only the NT630 Pro provides the complete sensor triggering, ID reading, programming, and module relearn sequence as a dedicated specialist tool without requiring an authenticated AutoAuth connection.

The NT630 Pro handles TPMS service at every stage of the relearn process: it reads existing sensor IDs at all four wheel positions, triggers sensors via built-in 315 MHz and 433 MHz RF signal to wake and identify them, programs new aftermarket sensors to match the vehicle’s TPMS module format, and runs the sensor learning sequence that writes the new IDs to the module. Factory Jeep TPMS sensors and a wide range of aftermarket formats including Schrader and Dill are supported. The TPMS service function communicates directly with the sensors via RF signal rather than through the CAN gateway, which means it works on the JT Gladiator without FCA AutoAuth authentication. On Gladiators with the Security Gateway Module, the TPMS relearn sequence is available to non-authenticated tools because the TPMS module’s RF communication path bypasses the gateway entirely.

On the Gladiator JT, the NT630 Pro reads full ABS module codes including wheel speed sensor faults, hydraulic pump circuit codes, and pressure sensor DTCs. ABS brake bleed service sequences are supported for post-suspension and brake component service on the JT platform. SRS airbag codes are readable and clearable across all JT model years, including dual-stage driver and passenger airbag deployment codes and seat belt pre-tensioner faults that appear after impacts or battery disconnects. On EcoDiesel builds, it reads basic engine and emission codes from the PCM in standard OBD2 mode, but it does not access EcoDiesel-specific manufacturer codes in the P2xxx range or the DPF and SCR modules that require FCA enhanced protocol support.

The NT630 Pro is not a full-system scanner and is not designed to be. It reads ABS, SRS, and TPMS codes but does not access the engine management system, 8HP75 TCM, BCM, ITBC, or TCCM for 4WD diagnostics. Gladiator owners who need full-system coverage alongside TPMS specialist capability should pair it with the BlueDriver Pro for passive code reading or the Foxwell NT809BT for full bidirectional coverage. For Gladiator owners whose primary diagnostic need is managing TPMS sensors across multiple wheel setups without dealer involvement, the NT630 Pro is the dedicated specialist tool that resolves that problem at the lowest cost of any tool in this guide.

Specifications

Specification	Details
Connection	Wired OBD2
Supported Systems	ABS, SRS, TPMS; basic engine code read in standard OBD2 mode
Bidirectional Control	TPMS relearn and ABS bleed service functions; no general active tests
FCA AutoAuth	Not required; TPMS RF relearn bypasses the SGW via direct sensor communication
TPMS Frequencies	315 MHz and 433 MHz RF trigger built in
TPMS Sensor Support	Factory Jeep, Schrader, Dill, universal relearn formats
Vehicle Compatibility	2020-2026 Gladiator JT all trim levels
Display	Compact standalone touchscreen, no phone required

What’s Included

The package includes the NT630 Pro scanner, OBD2 cable, TPMS trigger tool built in, USB cable, and carry case.

For Jeep Gladiator diagnostics, steering Angle Sensor calibration supported on 35+ vehicle brands after wheel alignment or steering component replacement.

In practice on the Jeep Gladiator, the scanner reads and clears both ABS and SRS fault codes, covering the two warning lights most basic scanners cannot access.

Built-in 12V battery load analyzer tests cold cranking amps between 100 and 1100 CCA without a separate battery tester.

Pros and Cons

Pros	Cons
Full TPMS service including sensor triggering, ID reading, new sensor programming, and module relearn works on the Gladiator JT without FCA AutoAuth	Does not access engine management, TCM, BCM, ITBC, or TCCM systems; full-system coverage requires a separate scanner
Built-in 315 MHz and 433 MHz RF covers both factory sensor frequencies without an external trigger tool or phone app
Supports factory Jeep TPMS sensors and aftermarket formats including Schrader and Dill for custom wheel builds on lifted Gladiators
ABS brake bleed service sequence supports post-suspension and brake component service on JT builds
SRS airbag code reading and clearing across all JT model years including dual-stage deployment and seat belt pre-tensioner faults
Standalone compact form factor with built-in screen requires no phone, app, or Bluetooth pairing for field use

My Final Verdict

The Foxwell NT630 Pro is the right specialist tool for any Gladiator owner who regularly swaps between street and trail wheel setups and needs full TPMS sensor programming without a dealership visit. The TPMS relearn sequence works on the JT without AutoAuth because it communicates directly with sensors via RF signal rather than through the CAN gateway.

It is not a substitute for a full-system scanner and works best alongside one. For Gladiator owners who need both TPMS specialist capability and full bidirectional access, the Foxwell NT809BT at position six handles both functions in a single tool with FCA AutoAuth active.

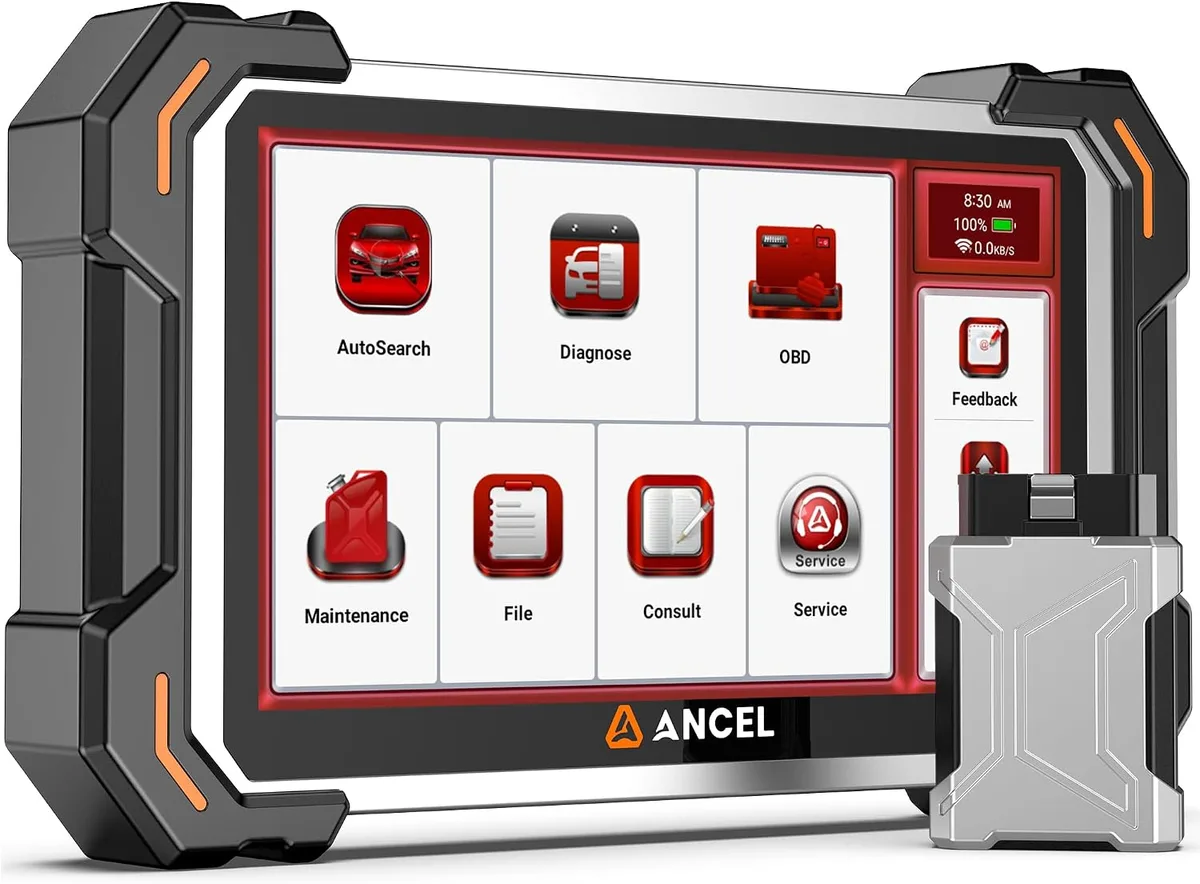

10. ANCEL DS500BT: Best Budget Code Reader for Jeep Gladiator

• FCA manufacturer-specific protocol covers all accessible JT Gladiator modules in passive read mode through the SGW without AutoAuth
• Reads ITBC trailer brake communication faults, EcoDiesel P2xxx DPF and SCR codes, and TCCM 4WD module codes with full manufacturer DTC descriptions
• 1,141+ Amazon ratings at 4.3 stars; no annual subscription; iOS and Android via Bluetooth 5.0

Overview

The DS500BT requires the same honest framing as the BlueDriver Pro for the Gladiator specifically: it is passive on every JT model year. Because all Gladiators have the SGW and the DS500BT does not have FCA AutoAuth, every bidirectional active test command is blocked. What makes it worth including at position ten is its FCA manufacturer-specific protocol coverage, which lets it read codes from all accessible JT modules through the SGW in passive mode, including ITBC trailer brake communication codes and EcoDiesel diesel-specific manufacturer codes in the P2xxx range that generic OBD2 scanners cannot access. For Gladiator owners on a tight budget who want full-system code reading across every module without a subscription, it is the most capable passive reader in this price range for FCA platforms.

The DS500BT pairs with the ANCEL app via Bluetooth 5.0 and delivers a full-system passive scan that covers engine, transmission, ABS, SRS, TPMS, body, and chassis on FCA-platform vehicles. The FCA vehicle database includes manufacturer-specific codes beyond the standard SAE set, covering the B, C, and U code ranges that flag BCM, ABS, TIPM-related, and ITBC communication faults on JT Gladiator builds. For EcoDiesel owners, the passive read includes DPF efficiency codes, SCR reductant quality codes, and EGR flow fault codes with manufacturer-specific descriptions that explain the fault and the module reporting it. Live data streams from all accessible modules via the app with customizable PID selection including diesel-specific parameters for DPF soot load percentage and SCR reductant tank level.

On the Gladiator JT through the SGW in passive mode, the DS500BT reads PCM codes for the 3.6L Pentastar and EcoDiesel 3.0L with full manufacturer DTC descriptions, 8HP75 TCM codes for automatic transmission shift faults and solenoid codes, ABS module codes with wheel speed sensor identification and hydraulic pump circuit fault descriptions, BCM codes for body electrical and TIPM-related communication faults, SRS codes for airbag deployment and seat belt pre-tensioner faults, ITBC codes for trailer brake controller communication faults and output circuit diagnostics, and TCCM codes for 4WD engagement and transfer case motor position faults. All of these read through the SGW without AutoAuth authentication, giving a complete picture of what fault codes exist across every Gladiator system at no subscription cost.

The DS500BT cannot perform any active tests, bidirectional commands, or authenticated service resets on the Gladiator JT. This rules out EPB retraction, DPF forced regeneration, ITBC trailer brake output test commands, TCCM calibration, and throttle body initialization. It is a read-and-clear tool for the Gladiator platform, nothing more. Gladiator owners who need those active test functions will need to step up to at least the Launch Creader Elite 1.0 for authenticated bidirectional access. The DS500BT is correctly used by owners who want a budget Bluetooth code reader with genuine FCA manufacturer protocol depth, or as a trail scanner kept in the Gladiator for code reading without worrying about subscription fees lapsing.

Specifications

Specification	Details
Connection	Bluetooth 5.0, iOS and Android
Supported Systems	All accessible JT modules passive read; ITBC, TCCM, EcoDiesel codes via FCA manufacturer protocol
Bidirectional Control	No; all active tests blocked by SGW without AutoAuth on Gladiator JT
FCA AutoAuth	Not required; passive read only through SGW
Diesel Coverage	EcoDiesel P2xxx DPF, SCR, EGR manufacturer codes; live DPF soot load and SCR reductant PIDs
Service Functions	Code read/clear only; no authenticated service resets on Gladiator
Vehicle Compatibility	All 2020-2026 Gladiator JT; 3.6L and EcoDiesel 3.0L
Subscription	None required

What’s Included

The package includes the DS500BT Bluetooth adapter, OBD2 cable, and USB cable. The ANCEL app is free on iOS and Android.

For Jeep Gladiator diagnostics, FCA SGW AutoAuth accesses SGW-protected systems on 2018 and newer Chrysler, Dodge, Jeep, and Ram vehicles without a separate gateway bypass.

In practice on the Jeep Gladiator, the scanner cleared a City Safety fault code on a Volvo that the owner’s repair shop could not clear.

Tested successfully on a Ram truck, Ford RV, and Mitsubishi Eclipse across three different brand platforms in one session.

Pros and Cons

Pros	Cons
FCA manufacturer-specific protocol reads codes from all accessible JT modules through the SGW including ITBC, TCCM, and EcoDiesel DPF and SCR faults	All bidirectional active tests blocked on Gladiator JT by the SGW without AutoAuth; passive read only on every model year
EcoDiesel P2xxx manufacturer codes for DPF efficiency, SCR reductant quality, and EGR flow accessible without any subscription
Live data includes diesel-specific DPF soot load percentage and SCR reductant tank level alongside standard engine and drivetrain PIDs
No annual subscription required; full passive system read available at no recurring cost for all Gladiator model years
Bluetooth 5.0 connection is stable for live data streaming across multiple simultaneous PID channels
iOS and Android compatible; no standalone screen required; connects to any modern smartphone

My Final Verdict

The ANCEL DS500BT is the right choice for Gladiator owners on a strict budget who want full-system FCA manufacturer code reading across all accessible JT modules, including EcoDiesel DPF and SCR codes and ITBC trailer brake fault identification, without any subscription cost.

It is not a bidirectional tool on any Gladiator model and cannot perform active tests of any kind through the SGW. Owners who need any active test or service reset should step up to the Launch Creader Elite 1.0 as the minimum authenticated bidirectional entry point in this guide.

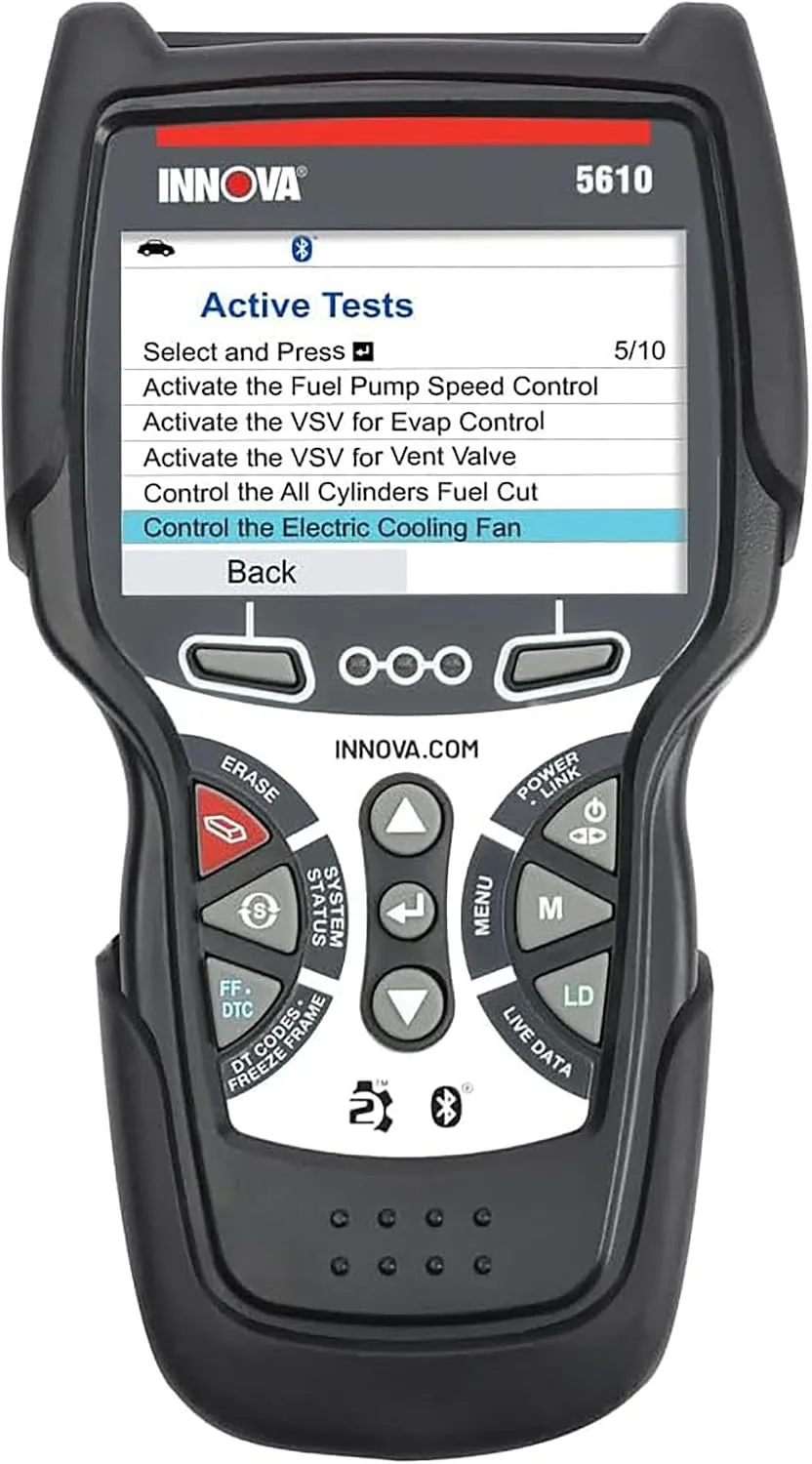

11. Innova 5610: Best Standalone Advanced Scanner for Jeep Gladiator

• Standalone 3.5-inch color display with battery and charging system test, freeze frame data, and live data graphing requires no phone or Bluetooth pairing
• RepairSolutions2 database provides technician-sourced repair guidance for JT Gladiator manufacturer-specific DTCs including EcoDiesel and ITBC codes
• 862+ Amazon ratings at 4.3 stars; full-system passive code reading on all accessible JT modules through the SGW without AutoAuth

Overview

The Innova 5610 occupies the final position in this guide for a specific reason: it is the most capable standalone no-phone scanner in the under-$400 range for Gladiator owners who want a self-contained diagnostic tool that goes beyond basic code reading without requiring a smartphone, app pairing, or Bluetooth connection to operate. Where the Innova 5210 provides basic full-system code reading, the 5610 adds a battery and charging system test, live data graphing on the built-in display, freeze frame capture with graphing capability, RepairSolutions2 database access via Wi-Fi, and a smog pre-check mode for Gladiator owners in emissions-tested states. For Gladiator truck owners who keep a scanner in the vehicle for trail-side or roadside use without a phone, the 5610 is the most capable standalone option in this guide.

The Innova 5610 connects via wired OBD2 with a 3.5-inch color display and operates entirely without Bluetooth or Wi-Fi for core diagnostic functions. The FCA vehicle database includes manufacturer-specific DTC descriptions in the B, C, P, and U code ranges for the JT Gladiator, covering TIPM-related BCM codes with module-level identification, ITBC trailer brake communication faults, and EcoDiesel diesel-specific codes in the P2xxx range. RepairSolutions2 database access requires a Wi-Fi connection and provides technician-sourced repair guidance for specific DTCs on specific vehicle year and model combinations, similar in function to the BlueDriver Pro’s Repair Reports but accessed via a built-in Wi-Fi radio rather than a paired smartphone app. The battery and charging system test checks battery state of health and charging system output, which is relevant for tow-equipped Gladiators where trailer electrical loads stress the charging system.

My BlueDriver Pro review covers the full feature set, including Repair Report database depth for Jeep-specific faults and the passive-only access limitation on FCA SGW platforms.

On the Gladiator JT through the SGW in passive mode, the 5610 reads codes from all accessible modules with manufacturer-specific descriptions: PCM for 3.6L Pentastar and EcoDiesel 3.0L fault codes, 8HP75 TCM for automatic transmission faults, ABS module for wheel speed sensor codes, BCM for body electrical and TIPM-related communication codes, SRS for airbag deployment codes, ITBC for trailer brake communication fault codes, and TCCM for 4WD engagement codes. Live data streams from all accessible modules and is viewable as a numeric list or as a graph on the built-in display across four simultaneous PID channels. EcoDiesel-specific live data includes DPF soot load percentage and reductant tank level in passive read mode.

The Innova 5610 is passive on all Gladiator JT models. It cannot perform any bidirectional active tests through the SGW without AutoAuth authentication. EPB retraction, DPF forced regeneration, ITBC output test commands, TCCM calibration, and ABS brake bleed sequences are all outside its capability set. The RepairSolutions2 database access requires Wi-Fi, which is not available in remote trail locations where a standalone scanner is most useful. For Gladiator owners who primarily need code reading and battery testing in a self-contained form factor with repair guidance capability, the 5610 is the right tool. For any active test or service reset function, the Launch Creader Elite 1.0 is the minimum step up.

Specifications

Specification	Details
Connection	Wired OBD2; Wi-Fi for RepairSolutions2 database access
Supported Systems	Engine, TCM, ABS, SRS, BCM, ITBC, TCCM with FCA manufacturer codes; passive read through SGW
Bidirectional Control	No
FCA AutoAuth	Not required; passive read only through SGW
Diesel Coverage	EcoDiesel manufacturer codes and live DPF soot load and SCR reductant data in passive read mode
Special Functions	Battery and charging system test, smog pre-check, freeze frame graphing, live data graphing
Vehicle Compatibility	All 2020-2026 Gladiator JT; 3.6L and EcoDiesel 3.0L
Display	3.5-inch color standalone display, no phone required

What’s Included

The package includes the Innova 5610 scanner, OBD2 cable, USB cable, and quick start guide.

For Jeep Gladiator diagnostics, bidirectional feature availability varies sharply by vehicle: some cars support only a handful of the listed active tests.

In practice on the Jeep Gladiator, ABS bleed function allows controlled solenoid cycling, useful after caliper replacement or brake fluid flush.

EPB retraction function activates the electronic parking brake motor through the scanner rather than requiring a separate bleed tool.

Pros and Cons

Pros	Cons
Standalone 3.5-inch color display with live data graphing and freeze frame capture requires no phone, app, or Bluetooth pairing in the field	No bidirectional active tests on any Gladiator model; all commands blocked by SGW without AutoAuth authentication
RepairSolutions2 technician-sourced repair database covers JT Gladiator manufacturer DTCs including EcoDiesel and ITBC fault codes
Battery and charging system test checks state of health and charging output, useful for tow-equipped Gladiators under trailer electrical load
EcoDiesel manufacturer-specific P2xxx DPF and SCR codes readable in passive mode with manufacturer DTC descriptions
ITBC trailer brake communication fault codes and TCCM 4WD engagement codes readable with module-level identification
Smog pre-check mode confirms OBD2 readiness monitor status for Gladiator owners in emissions-tested states

My Final Verdict

The Innova 5610 is the right standalone scanner for Gladiator owners who want a self-contained diagnostic tool with a built-in display, battery system testing, live data graphing, and repair database access without depending on a smartphone or subscription for core functions.

It is passive on every Gladiator model and cannot perform active tests of any kind. For owners who need bidirectional access on the JT platform, the Launch Creader Elite 1.0 is the minimum capable entry point. The 5610 pairs well with an authenticated tool as a standalone trail and roadside code reader for owners who do not want to take their primary scanner out of the shop.

Comparison Table: Best OBD2 Scanners for Jeep Gladiator

Scanner	Best For	FCA AutoAuth	Bidirectional	EcoDiesel DPF Regen	ITBC Access
TOPDON Phoenix Lite 2	Best Overall / EcoDiesel	Yes	Yes	Yes (forced regen)	Full bidirectional
BlueDriver Pro	Best Value	No	No	No	Passive read
Launch X431 PRO3 V5.0	Best Premium	Yes	Yes	Yes + J2534 ECM	Full bidirectional
Autel MK808BT PRO V2	Best AutoAuth Tablet	Yes	Yes	Codes only, no regen	Full bidirectional
OBDLink MX+	Best App-Based / JScan	No	JScan only	Live data only	JScan calibration
Foxwell NT809BT	Best Wireless Bidirectional	Yes	Yes	Codes only, no regen	Full bidirectional
Launch Creader Elite 1.0	Best Budget Bidirectional	Yes	Yes	Codes only, no regen	Full bidirectional
Autel MaxiDAS DS808S	Best Advanced / 4xe	Yes	Yes	Codes + ECU coding	Full bidirectional
Foxwell NT630 Pro	Best TPMS/ABS	No	TPMS/ABS only	No	No
ANCEL DS500BT	Best Budget Code Reader	No	No	Codes only	Passive read
Innova 5610	Best Standalone Advanced	No	No	Codes only	Passive read

How to Choose the Right OBD2 Scanner for Your Jeep Gladiator

Choosing a scanner for the Gladiator is different from choosing one for most other vehicles because the platform has no legacy diagnostic access path. Every Gladiator ever produced has the Security Gateway Module, which means there is no equivalent to the Wrangler JK where pre-2018 owners can skip the AutoAuth subscription. The Gladiator also introduces two diagnostic demands that do not exist on the Wrangler: the EcoDiesel 3.0L diesel option requires specific bidirectional capability for DPF regeneration, EGR, and SCR service, and the JT truck platform carries the Integrated Trailer Brake Controller module that Wrangler owners never need to diagnose. The four sections below cover what each of these requirements actually means for scanner selection.

Why Every Gladiator Has the Security Gateway Module

The Jeep Gladiator JT launched in model year 2020, two years after FCA introduced the Security Gateway Module across its entire vehicle lineup. This means the very first Gladiator ever sold came with the SGW installed. There is no pre-SGW Gladiator generation, no grandfather variant, and no build date cutoff below which the gateway restriction does not apply. Every scanner that does not have FCA AutoAuth authentication is limited to passive code reading on the JT platform, without exception.

FCA AutoAuth costs approximately $50 per year and is tied to the individual scan tool’s device ID. Foxwell, Autel, and Launch each handle the subscription through their own update platforms, but the annual cost and the Stellantis authentication requirement are consistent across all brands. Physical bypass cables exist as an alternative, connecting directly to the gateway module hardware to bypass the OBD2 socket restriction, but these require routing a cable under the dashboard and are not compatible with the standard OBD2 port that all consumer tools use. For the majority of Gladiator owners, the authenticated scanner route is the practical path.

My Jeep Wrangler OBD2 scanner guide covers the same FCA AutoAuth and SGW access requirements for JK and JL Wrangler owners, with tools that overlap with this list.

The practical consequence of the all-SGW Gladiator lineup is that tools like the BlueDriver Pro, OBDLink MX+, ANCEL DS500BT, and Innova 5610 are passive readers on every Gladiator regardless of model year. They cannot command EPB retraction, run DPF regeneration sequences, perform ITBC trailer brake output tests, or initiate any other active test. These tools are still useful for code reading, live data monitoring, and repair database access, but the passive-only limitation is a hard floor on every Gladiator they connect to. Knowing this before buying avoids the common mistake of purchasing a capable bidirectional tool that turns out to be read-only on the JT platform.

EcoDiesel Diagnostics: DPF, EGR, and SCR/DEF Access

The VM Motori 3.0L EcoDiesel in the Gladiator JT requires four diesel-specific diagnostic capabilities that gasoline scanner coverage does not include: DPF forced regeneration as a manual bidirectional sequence, EGR valve active test, SCR dosing pump actuation test, and glow plug relay circuit test. These are not passive code functions. Reading a P2002 DPF efficiency below threshold code tells you the DPF is blocked; clearing it without forcing a regeneration cycle leaves the problem in place. The scanner must be able to command a forced manual regeneration sequence as a bidirectional active test for the code to stay cleared after driving.

My budget OBD2 scanner guide covers capable entry-level tools for Gladiator owners who need basic fault code access without EcoDiesel DPF active test depth.

DPF forced regeneration on the EcoDiesel requires a scanner that reaches the DPF control module with an authenticated bidirectional command rather than just reading the downstream fault code. The TOPDON Phoenix Lite 2 and the Launch X431 PRO3 V5.0 are the only tools in this guide confirmed to support the DPF forced manual regeneration sequence on the VM Motori diesel. The Autel MK808BT PRO V2, Foxwell NT809BT, and Launch Creader Elite 1.0 read EcoDiesel codes and live data with AutoAuth active but do not support the DPF forced regen command. EcoDiesel owners who buy the wrong tool discover this limitation only after connecting the scanner and finding no regeneration option in the service menu.

EGR valve diagnostics on the EcoDiesel require a scanner that can command the valve through its full range of motion at operating temperature to confirm it opens and closes correctly. Carbon buildup on the EGR valve is the most common cause of P0400 EGR flow insufficient codes on the EcoDiesel, and distinguishing a stuck valve from a position sensor fault requires the active test rather than a static voltage reading. SCR diagnostics add another layer: P20EE reductant catalyst efficiency codes require the scanner to access the SCR module directly to distinguish a genuinely contaminated DEF tank from a degraded NOx sensor reporting false efficiency data. Both of these functions require FCA AutoAuth and a bidirectional tool with confirmed EcoDiesel module coverage.

Trailer Brake Controller Module Faults on the JT Platform

The Integrated Trailer Brake Controller is unique to the Gladiator JT among Jeep models and is one of the diagnostic areas most commonly overlooked in OBD2 scanner guides for this vehicle. Tow-package Gladiators carry the ITBC module as standard equipment, and it communicates with the BCM, ABS module, and brake light switch over the CAN bus. When the ITBC module loses communication with any of these inputs, it generates U0413 and related U-series communication fault codes that appear in the BCM or ABS system scan without a clear module origin unless the scanner reads the ITBC module directly.

ITBC diagnostics have two distinct requirements depending on whether the fault is a code reading job or an active test job. Reading ITBC communication fault codes and identifying the source module requires FCA manufacturer protocol access to the U-series code range, which the BlueDriver Pro, ANCEL DS500BT, and Innova 5610 provide in passive mode without AutoAuth. Running an ITBC trailer brake output test to confirm the brake controller is correctly applying gain to the trailer brakes during towing requires an authenticated bidirectional command through the SGW. The output test function is available on the TOPDON Phoenix Lite 2, Autel MK808BT PRO V2, Foxwell NT809BT, and Launch X431 PRO3 V5.0. The OBDLink MX+ with JScan also supports ITBC trailer brake gain calibration as a JScan-specific function that a standard scan tool cannot replicate.

Gladiator 4xe: What Hybrid-Specific Diagnostics Require

The Gladiator 4xe launched in model year 2023, later than the Wrangler 4xe that arrived in 2021, but the hybrid architecture is identical: the same High Voltage Battery Pack Module, Drive Motor Generator Module, and Hybrid Control Module that the Wrangler 4xe carries. Diagnosing these modules with meaningful depth requires FCA AutoAuth plus hybrid-specific software coverage. Reading a generic P0D2x battery system fault code from the standard OBD2 port is not the same as accessing individual cell voltage data, state of health percentage, and thermal management parameters from the Battery Pack Module directly.

Of the tools in this guide, the Autel MaxiDAS DS808S provides the deepest 4xe hybrid module access for the Gladiator platform. The TOPDON Phoenix Lite 2 and Foxwell NT809BT cover the 4xe modules with AutoAuth active but with less ECU coding depth for the Hybrid Control Module. The OBDLink MX+ accesses FCA extended PIDs for 4xe builds in passive mode but without bidirectional capability for hybrid system active tests. For 4xe Gladiator owners who need to diagnose battery degradation, regenerative braking faults, or hybrid control module configuration issues, the DS808S is the minimum capable tool in this guide for that diagnostic depth.

FAQs

What is the best OBD2 scanner for Jeep Gladiator?

The TOPDON Phoenix Lite 2 is the best OBD2 scanner for the Jeep Gladiator because it is the only tool in the mid-tier price range that combines FCA AutoAuth for full JT SGW bidirectional access with EcoDiesel DPF forced regeneration capability as a manual bidirectional sequence. It handles the two demands that define Gladiator diagnostics: the Security Gateway restriction that applies to every JT model year, and the EcoDiesel diesel system depth that most authenticated scanners do not provide at its price point. For gasoline JT owners who do not need EcoDiesel DPF forced regen, the Autel MK808BT PRO V2 delivers equivalent full-system bidirectional access at a lower price.

Does the Jeep Gladiator have a security gateway module?

Yes, every Jeep Gladiator has the Security Gateway Module. The Gladiator JT launched in 2020, two years after FCA introduced the SGW across its entire vehicle lineup, which means there is no pre-SGW Gladiator generation. This is different from the Wrangler, where pre-2018 JK models do not have the gateway. Any scanner connected to a Gladiator without FCA AutoAuth authentication is limited to passive code reading and cannot perform bidirectional active tests on any JT model year.

What OBD2 scanner works best for Jeep Gladiator EcoDiesel?

The TOPDON Phoenix Lite 2 is the best scanner for the Gladiator EcoDiesel because it is confirmed to support DPF forced regeneration as a manual bidirectional sequence, EGR active test with full valve range of motion confirmation, and SCR dosing pump actuation test, all with FCA AutoAuth active for full SGW access. The Launch X431 PRO3 V5.0 is the better choice for EcoDiesel owners who also need ECM calibration updates via WiTech 2.0 J2534 pass-through. Other authenticated tools in this guide read EcoDiesel codes but do not support the DPF forced regen command that makes them useful for EcoDiesel service.

What are common OBD2 codes on the Jeep Gladiator?

The most frequent codes on the gasoline JT Gladiator are P0128 thermostat below regulating temperature on the 3.6L Pentastar, P030X random and cylinder-specific misfires, P0456 EVAP system small leak, and U0413 ITBC invalid data from the trailer brake module on tow-equipped builds. On the EcoDiesel 3.0L, P2002 DPF efficiency below threshold from accumulated soot load, P20EE reductant catalyst efficiency from DEF system issues, P0400 EGR flow insufficient from carbon buildup on the EGR valve, and P0670 glow plug control module circuit fault on cold-start hard starts are the most common reported DTCs. B-series BCM codes tied to SGW authentication attempts from non-authenticated tools also appear frequently when owners try standard scanners on the JT platform.

Can I use an OBD2 scanner for trailer brake controller faults on the Gladiator?

Yes, but the capability depends on which function you need. Reading ITBC communication fault codes in the U0413 range requires FCA manufacturer protocol access and is available in passive read mode on tools like the BlueDriver Pro, ANCEL DS500BT, and Innova 5610 without AutoAuth. Running an ITBC trailer brake output test to confirm the controller is applying the correct gain to the trailer brakes requires an authenticated bidirectional command through the SGW, available on the TOPDON Phoenix Lite 2, Autel MK808BT PRO V2, and Foxwell NT809BT. The OBDLink MX+ with JScan supports ITBC trailer brake gain calibration as a JScan-specific function separate from the AutoAuth path.

What is FCA AutoAuth and do I need it for a Jeep Gladiator?

FCA AutoAuth is a Stellantis-mandated annual subscription service that authenticates aftermarket scan tools for full bidirectional access on 2018-plus Jeep, Chrysler, Dodge, and Ram vehicles. For the Gladiator specifically, AutoAuth is required for any bidirectional active test on every model year because all Gladiators are 2020-plus JT with the Security Gateway Module. Without AutoAuth, a scanner connected to a Gladiator can read codes from accessible modules through the SGW in passive mode, but it cannot command any active test including EPB retraction, DPF regeneration, ITBC output tests, or TCCM calibration. The subscription costs approximately $50 per year and is device-specific.

Does the Jeep Gladiator 4xe need a special OBD2 scanner?

The Gladiator 4xe from 2023 requires both FCA AutoAuth for SGW access and hybrid-specific module coverage to diagnose the High Voltage Battery Pack Module and Drive Motor Generator Module with meaningful depth. A standard authenticated scanner reads generic hybrid system fault codes through the SGW, but accessing individual cell voltage, state of health, and thermal management live data from the Battery Pack Module requires a scanner with confirmed FCA hybrid platform software. The Autel MaxiDAS DS808S is the scanner in this guide with the deepest 4xe Gladiator module access, including ECU coding for the Hybrid Control Module. The TOPDON Phoenix Lite 2 and Foxwell NT809BT cover 4xe modules with AutoAuth active but with less hybrid-specific depth.

My Final Recommendations

EcoDiesel Gladiator owners have one tool at the right price for their specific diagnostic need: the TOPDON Phoenix Lite 2. It handles DPF forced regeneration, EGR active test, SCR dosing diagnostics, and full JT SGW bidirectional access in a single wireless scanner. If you need EcoDiesel ECM calibration updates or SKIM key programming via WiTech 2.0, the Launch X431 PRO3 V5.0 is the only J2534-capable option in this guide.

For gasoline JT Gladiator owners who want the best combination of FCA AutoAuth bidirectional access and price, the Autel MK808BT PRO V2 delivers more active test commands per dollar than any other authenticated tool here, with the highest satisfaction rating of any bidirectional scanner in the guide at 4.6 stars. Owners on a tighter budget who still need authenticated active tests should consider the Launch Creader Elite 1.0 as the lowest-cost AutoAuth entry point.

Gladiator 4xe owners who need cell-level battery diagnostics and Hybrid Control Module ECU coding should choose the Autel MaxiDAS DS808S. Owners who tow regularly and want ITBC trailer brake gain calibration through JScan without an AutoAuth subscription should pair the OBDLink MX+ with the JScan app. For lifted Gladiator builds that need TPMS sensor programming after wheel swaps, the Foxwell NT630 Pro handles the full relearn sequence at the lowest cost in this guide, without requiring AutoAuth for that specific function.
