9 Best OBD2 Scanners for Jeep Wrangler (2026): Tested for SGW Access, TIPM Faults and TPMS Relearn

Every Wrangler JL owner hits the same wall at least once. You plug in a standard OBD2 scanner, try to run an active test or reset a module, and get nothing back. The scanner connects, reads a few generic codes, then stops. The reason is the Security Gateway Module that FCA fitted to all 2018-plus Wrangler JL, JLU, and JT Gladiator builds. Without FCA AutoAuth access, most scanners are limited to passive code reading on these platforms, and bidirectional commands are blocked entirely.

My Jeep Gladiator OBD2 scanner guide covers the additional EcoDiesel DPF, ITBC trailer brake, and 4xe-specific requirements that differ from the Wrangler.

Pre-2018 JK owners face a different set of problems. The Totally Integrated Power Module on JK Wranglers is one of the most failure-prone components in the lineup, producing codes across multiple systems at once. It takes a scanner with genuine module-level depth to identify TIPM faults rather than chase the downstream codes they generate. Off-road use adds a third demand most guides ignore: aftermarket lift kits trigger TPMS warnings every time tire pressure is changed, and clearing and relearning those sensors requires a scanner with dedicated TPMS service functions, not just code reading.

My guide covers 9 OBD2 scanners specifically selected for Wrangler owners, ranked by how well each handles the three core diagnostic demands: SGW and FCA AutoAuth access on JL and JT models, TIPM diagnosis on JK models, and TPMS relearn for lifted builds. I have also included the best pick for Wrangler 4xe owners who need Battery Pack Module and Drive Motor Generator live data access.

Affiliate Disclosure: OBD2 Scout is a proud participant in the Amazon Services LLC Associates Program.

Every scanner on this list was selected based on confirmed FCA and Jeep Wrangler protocol coverage, verified Amazon availability with 100-plus customer ratings, and the diagnostic functions Wrangler owners actually need: Security Gateway access on JL, TIPM fault isolation on JK, TPMS sensor programming for lifted builds, and bidirectional active tests where required. My Final Recommendations section at the bottom maps each scanner to a specific Wrangler owner profile.

My Recommended Top 3 Best-Buys

9 Best OBD2 Scanners for Jeep Wrangler: Full Reviews

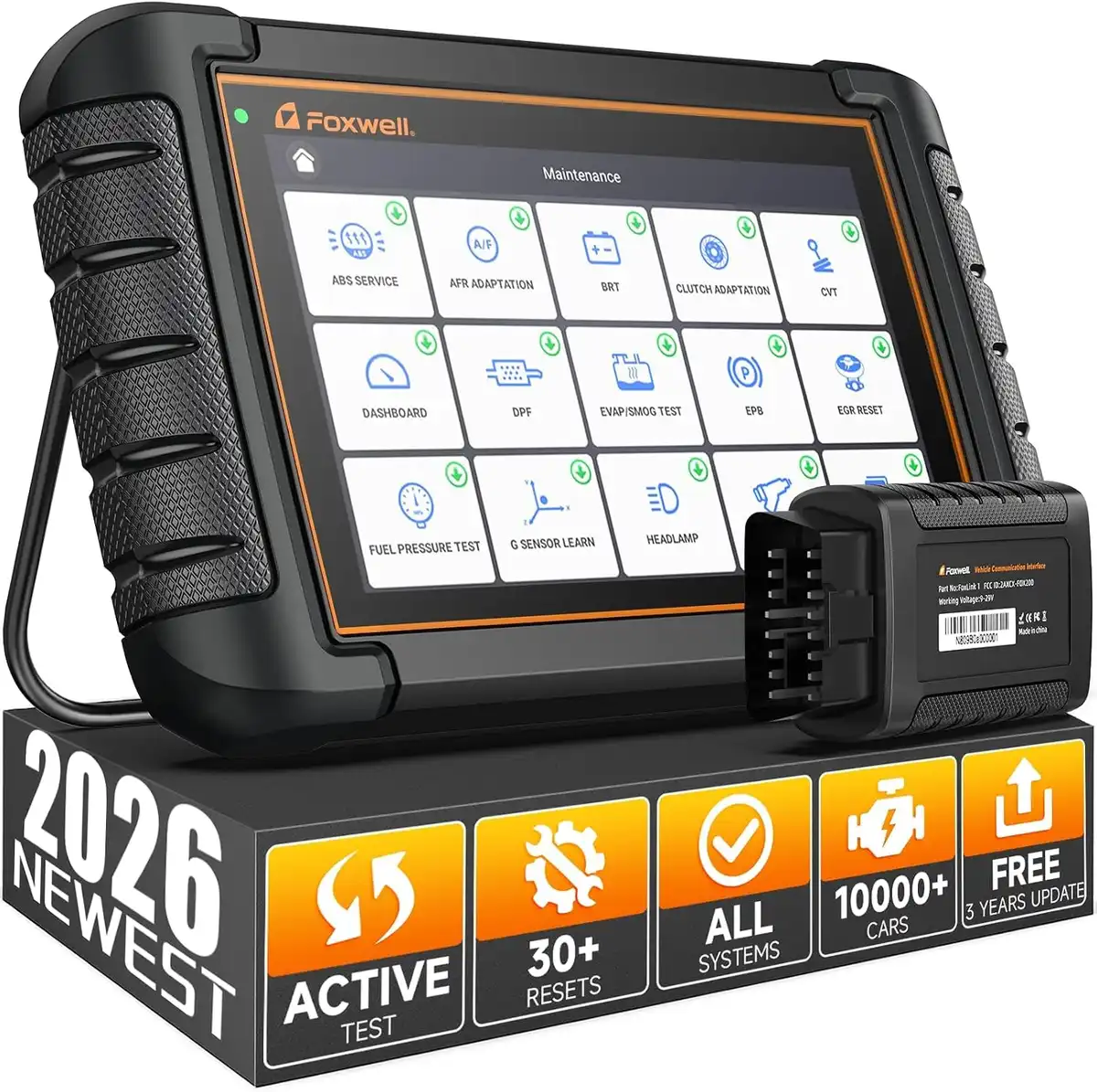

1. Foxwell NT809BT: Best Overall for Jeep Wrangler

• Native FCA AutoAuth covers full JL and JT Security Gateway access without a bypass cable
• Wireless VCI with 30-plus bidirectional service functions including TCCM 4WD and EPB retraction
• 279+ Amazon ratings at 4.3 stars; 4xe Battery Pack Module and TPMS relearn supported

Overview

The NT809BT sits at the top of this list because it handles the two most common barriers Wrangler diagnostics present: native FCA AutoAuth support for 2018-plus JL and JT models, and wireless bidirectional control that reaches every module in the vehicle. It is a purpose-built professional tool in a mid-tier price range, which puts serious diagnostic capability in reach for Wrangler owners who are not professional mechanics but need more than read-and-clear access on a gated platform.

The scanner runs on a 7-inch Android display with a dedicated wireless VCI adapter that handles the FCA CAN bus without additional hardware. FCA AutoAuth is bundled into the Foxwell update subscription, which covers the $50 annual fee Stellantis charges for gateway access. Once authenticated, the NT809BT reaches the SGW on JL Wranglers and performs bidirectional active tests across all modules, including transmission adaptation resets, throttle body initialization, and EPB retraction functions that are blocked on non-authenticated tools. The wireless VCI eliminates cable management entirely, which matters on the Wrangler’s compact engine bay.

My bidirectional OBD2 scanner guide compares active test tools across price tiers for owners who need full bidirectional command access on FCA and other platforms.

On Wrangler JL and JLU builds, the NT809BT accesses the Transfer Case Control Module for Selec-Trac and Rock-Trac 4WD diagnostics, reads TIPM-related DTCs with module identification rather than just the downstream symptom codes, and supports TPMS relearn via the sensor trigger function for aftermarket pressure sensors used after lift kit installations. On 4xe models, it reaches the Drive Motor Generator Module and Battery Pack Module to read state of health and state of charge live data. It also covers the Sentry Key Remote Entry Module for key-related DTCs, though SKIM key programming itself requires a higher subscription tier.

The NT809BT has two clear limits worth knowing before buying. SKIM key programming and BCM-level coding require a professional subscription upgrade or dealer access, so it is not a substitute for a J2534 PassThru device on deep programming jobs. The FCA AutoAuth subscription is annual and device-specific, meaning each scanner you own needs its own subscription. For JK owners who do not have the Security Gateway Module and want a no-subscription solution, the OBDLink MX+ with JScan delivers comparable JK-specific access at a lower total cost.

My OBDLink MX+ review covers the JScan integration, Wrangler-specific test coverage, and how the no-subscription model compares to the FCA AutoAuth annual fee.

Common Wrangler JL codes the NT809BT addresses with Stellantis-specific depth include P0128 thermostat below regulating temperature with freeze frame coolant data confirming a stuck-open failure rather than a sensor fault, P0456 evaporative emission small leak with EVAP module pressure monitor status for leak detection pump performance, and U0100 lost communication with ECM with module identification pinpointing the TIPM ground circuit origin rather than just logging the downstream communication failure. Rock-Trac 4WD owners encounter C1001 and C1032 transfer case position sensor codes after lift kit installations that alter the shift cable geometry, and the NT809BT’s TCCM bidirectional tests include the neutral calibration sequence and 4WD range engagement confirmation that resolves these codes without a dealer visit. ABS wheel speed sensor codes in the C1210 through C1240 range are readable with individual wheel identification, which matters on modified JL builds where aftermarket brake components can generate false-positive codes from reluctor ring gap variation.

TPMS sensor relearn on the Wrangler JL requires an RF trigger signal at 315 MHz to activate each aftermarket sensor and write the new sensor ID to the BCM; the NT809BT completes this sequence from the service menu without an external trigger tool. For JL Wrangler owners who run multiple wheel sets, the relearn function eliminates the need for a dealer or tire shop visit each time sensors are swapped. On 4xe models, the NT809BT accesses the Drive Motor Generator Module for state of charge and state of health live data and the Battery Pack Module for individual cell voltage monitoring, which covers the diagnostic information needed to distinguish a BMS fault code from genuine battery degradation without a dealer scan tool.

The NT809BT is the right tool for JL Wrangler owners who service their own vehicle, need bidirectional active tests regularly, and want wireless capability during hood-up diagnostic sessions. JK Wrangler owners who do not have the Security Gateway Module get full bidirectional access without an AutoAuth subscription, including 3.6L Pentastar injector balance tests and ABS pump bleed commands. The annual FCA AutoAuth fee is the only recurring cost above the initial purchase and covers every Stellantis vehicle the owner connects the NT809BT to, not just the Wrangler.

Specifications

Specification	Details
Connection	Wireless Bluetooth VCI, USB-C
Supported Systems	Engine, TCM, ABS, SRS, TPMS, BCM, TCCM, SKIM, 4xe hybrid modules
Bidirectional Control	Yes, 30+ active tests
FCA AutoAuth	Yes, included in update subscription
Service Functions	30+ including EPB, oil reset, TPMS relearn, throttle body, transmission adaptation
Vehicle Compatibility	150+ makes; 2007-2026 Wrangler JK/JL/JLU; 2020+ JT Gladiator; 2021+ 4xe
Display	7-inch Android touchscreen
Updates	1 year free, then annual fee

What’s Included

The package includes the NT809BT tablet, wireless VCI adapter, OBD2 extension cable, USB-C cable, and a carry case.

Bluetooth VCI module maintains a stable connection at the advertised 33-foot range, allowing live data monitoring from under the hood while watching a running engine.

On the Jeep Wrangler, CAN-FD and DoIP protocol support accesses newer GM, FCA, and European vehicle networks that older scanners cannot reach.

Does not support ECU tuning, key programming, or ECU flashing, even though bidirectional control is present.

Pros and Cons

Pros	Cons
FCA AutoAuth bundled in the update subscription covers full JL and JT gateway access without a separate bypass cable	FCA AutoAuth subscription is annual and device-specific, adding a recurring cost that JK owners who do not need gateway access can avoid entirely
Wireless VCI eliminates cable management during active tests, a practical advantage on Wrangler engine bays
Reaches TCCM for Selec-Trac and Rock-Trac 4WD bidirectional commands and fault code isolation
Covers 4xe Battery Pack Module and Drive Motor Generator Module for hybrid system live data on PHEV builds
TPMS relearn function with sensor trigger support works with aftermarket sensors on lifted Wrangler builds
30-plus reset services include throttle body, transmission adaptation, and EPB across all Wrangler generations
7-inch display handles live data graphing across multiple systems without requiring an external phone

My Final Verdict

The Foxwell NT809BT is the right tool for any JL or JT Wrangler owner who needs full module-level diagnostics, bidirectional active tests, and TPMS relearn in a single wireless unit without physical bypass hardware.

The FCA AutoAuth integration handles the gateway restriction that blocks most scanners on the JL platform, and the wireless VCI makes the diagnostic process practical in tight spaces. JK owners will find equally strong coverage without any subscription requirement.

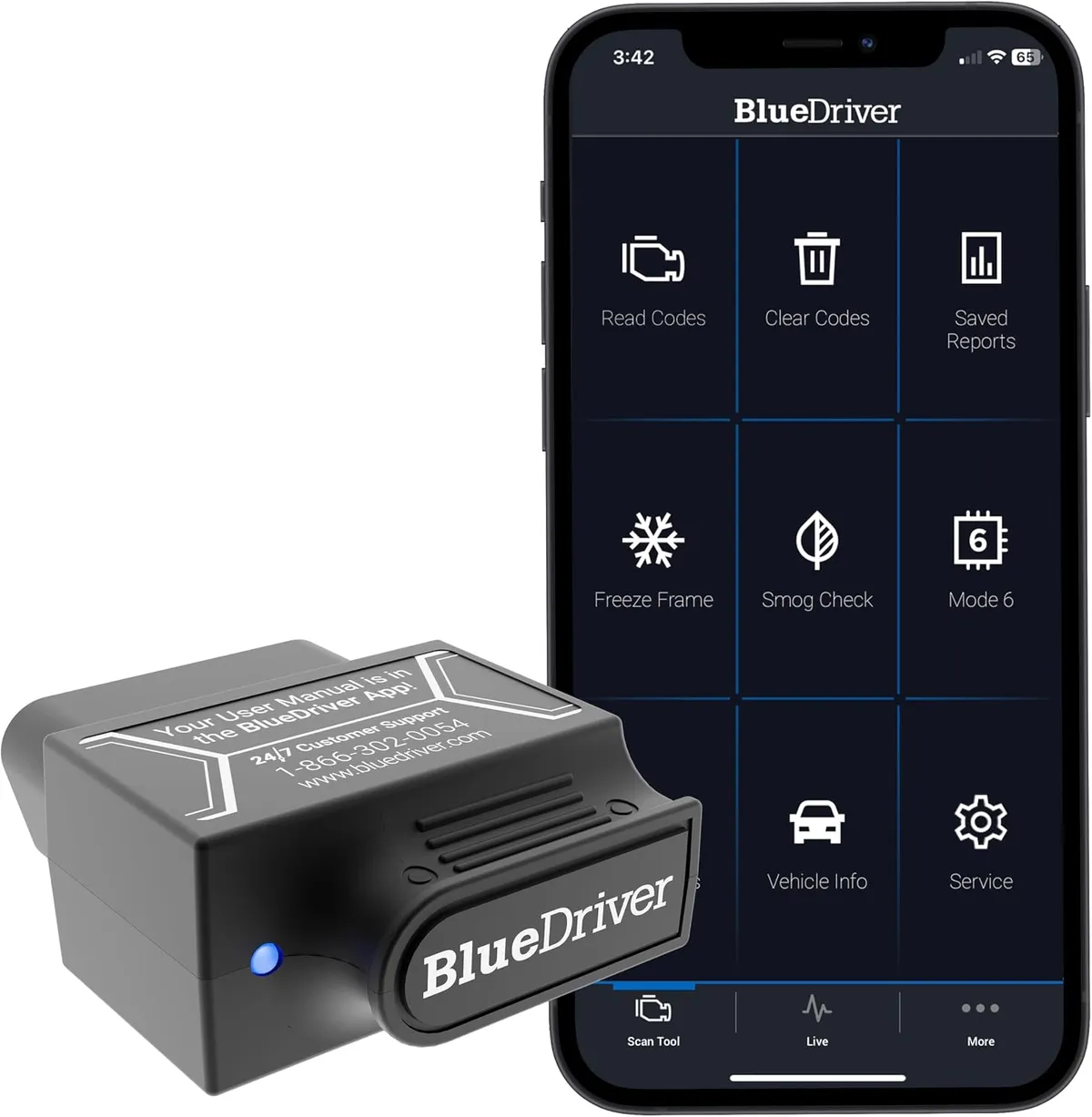

2. BlueDriver Bluetooth Pro: Best Value for Jeep Wrangler

• FCA enhanced protocol library covers all JK modules with TIPM code isolation and module-level identification
• Repair Reports pull technician-sourced fixes for TIPM, misfire, and EVAP codes specific to Wrangler JK model years
• 62,422+ Amazon ratings at 4.4 stars; full-system code reading on JL in passive read mode, no subscription

Overview

The BlueDriver Pro targets Wrangler JK owners specifically, and it does that job better than any other Bluetooth scanner at this price point. The JK platform from 2007 to 2018 does not have the Security Gateway Module, which means any scanner with genuine FCA enhanced protocol support can reach all modules without AutoAuth. BlueDriver has maintained one of the most complete FCA-specific PID libraries in the consumer Bluetooth segment for over a decade, and it is the default recommendation for JK owners who want full-system coverage from a phone without paying for a standalone tablet scanner.

The Pro adapter connects via Bluetooth 4.0 LE to the BlueDriver iOS and Android app, which carries a licensed FCA vehicle database with manufacturer-specific codes, freeze frame data, and mode 6 readiness monitors. The app generates Repair Reports that pull from a database of verified technician fixes for the specific DTC on the specific year and model. For JK Wranglers, this includes TIPM-related codes in the U0100, U0140, and B0001 series with technician-sourced repair notes. Live data streams up to 25 PIDs simultaneously, sufficient for monitoring Pentastar 3.6L fuel trim, MAF, IAT, and coolant temperature.

My Bluetooth OBD2 scanner guide compares wireless app-based tools across brands for owners who prefer a phone-based diagnostic workflow.

On the JK, the BlueDriver Pro reads full-system codes from the PCM, TCM, BCM, ABS module, and airbag module. It accesses TIPM codes with module-level identification, which is the critical difference between chasing downstream faults and diagnosing the root cause. For JK trail riders, the app monitors 4WD system status and transfer case engagement codes without requiring active test capability. On JL models, the BlueDriver reads codes from all accessible modules, but the SGW blocks bidirectional commands, making it a read-only tool on 2018-plus Wranglers. TPMS codes are readable but TPMS sensor relearn is not supported.

The BlueDriver Pro cannot perform active tests or bidirectional commands on any Wrangler generation. This limits its use on JL and JT models to code reading and live data monitoring, with no path to EPB caliper retraction, throttle body adaptation reset, or TPMS sensor triggering. JL owners who need full bidirectional access should move up to the Foxwell NT809BT. For JK owners who do need active test capability, the ANCEL DS500BT lower in this guide is a bidirectional option at a comparable price.

The Repair Reports database is the BlueDriver Pro’s most useful feature for JK Wrangler owners navigating the specific failure patterns of the 3.6L Pentastar and TIPM electrical architecture. P0171 and P0174 system lean codes on the JK Pentastar have a documented pattern tied to spider injector O-ring failure and fuel pressure regulator degradation that the technician notes surface before an owner purchases a mass air flow sensor or oxygen sensor. U0100 lost communication with ECM and U0140 lost communication with BCM codes on JK builds frequently trace to TIPM ground circuit corrosion at the driver-side firewall connector, and the Repair Reports for these codes include the connector location and cleaning procedure rather than a component replacement recommendation.

My BlueDriver Pro review covers the full feature set, including Repair Report database depth for common Jeep faults and the passive-only access limitation on JL builds.

Live data coverage for the 3.6L Pentastar on the JK includes short-term and long-term fuel trim on both banks for identifying individual bank contribution to lean conditions, MAF sensor output in grams per second for intake leak detection, intake air temperature for cold start diagnostics, and throttle position sensor voltage for idle stability and tip-in response correlation. The 25-PID simultaneous display with graphing allows side-by-side comparison of bank 1 and bank 2 fuel trims during a road test, which is the standard confirmation for identifying which cylinder bank has a vacuum leak or injector contribution issue. Mode 6 readiness monitor data is available for JK emissions testing in states that require OBD2 readiness confirmation.

For JL Wrangler owners who already use the BlueDriver Pro and want to know its value on a newer build, the passive code reading covers all accessible modules through the SGW including manufacturer-specific codes beyond the generic SAE set, which provides accurate fault identification for most diagnostic scenarios that do not require active test confirmation. The limitation is real: the BlueDriver cannot command EPB retraction, perform throttle body initialization, or trigger TPMS sensor relearn on any JL Wrangler regardless of model year. The practical value on the JL is the Repair Reports database, which remains useful for identifying the most likely repair for a given code before committing to a dealer diagnostic appointment.

Specifications

Specification	Details
Connection	Bluetooth 4.0 LE, iOS and Android
Supported Systems	Engine, TCM, ABS, SRS, BCM, TPMS (read-only); all JK modules; passive read on JL
Bidirectional Control	No
FCA AutoAuth	Not required; JK full access without subscription
Service Functions	Code read/clear, live data, freeze frame, Repair Reports, mode 6
Vehicle Compatibility	JK Wrangler full system; JL Wrangler passive read; all FCA platforms
Platform	iOS and Android app, no subscription fee
Live Data	Up to 25 simultaneous PIDs

What’s Included

The package includes the BlueDriver Pro Bluetooth adapter with 16-pin OBD2 connector. The iOS and Android app is free with no subscription.

On the Jeep Wrangler, over 60,000 verified buyer reviews cite the subscription-free model and stable app as its biggest advantages.

Real-time fuel trim graphing lets you watch bank 1 and bank 2 trims during a drive cycle to isolate lean or rich conditions.

For Jeep Wrangler diagnostics, vIN-matched repair reports are verified by ASE-certified mechanics, providing vehicle-specific guidance rather than generic code descriptions.

Pros and Cons

Pros	Cons
FCA enhanced protocol library covers all JK Wrangler modules including TIPM code series with module-level identification	Cannot perform bidirectional commands on any Wrangler generation; JL owners who need active tests will need a gateway-capable tool
Repair Reports pull technician-sourced fixes for TIPM, misfire, and EVAP DTCs on specific JK model years
No annual subscription fee; app updates are included with the one-time hardware purchase
Reads full-system codes on JL Wranglers through the SGW in passive read mode without AutoAuth
iOS and Android compatible with a clean app interface that requires no prior scan tool experience
Live data supports 25 simultaneous PIDs for Pentastar 3.6L engine diagnostics including fuel trim and MAF

My Final Verdict

The BlueDriver Pro is the best value choice for Wrangler JK owners who want full-system code access, TIPM fault context, and technician-sourced repair data without paying for a standalone scanner or annual subscription.

It does not replace a bidirectional tool for JL Wrangler diagnostics, but for the large installed base of pre-2018 JK owners who primarily need to read, understand, and clear codes with context, it covers everything that matters.

3. Launch X431 PRO3 V5.0: Best Premium for Jeep Wrangler

• J2534 PassThru enables WiTech 2.0 SKIM key programming and ECM calibration updates on JL Wrangler
• FCA AutoAuth with full SGW bidirectional access; TCCM Rock-Trac 4WD and 4xe HV battery module coverage
• 1,559+ Amazon ratings at 4.4 stars; DoIP and CANFD for current and future Stellantis architecture

Overview

The X431 PRO3 V5.0 is the right choice for Wrangler owners who need true dealer-level diagnostic depth: J2534 PassThru programming capability, full Stellantis FCA coverage with AutoAuth, and bidirectional control across every module including SKIM, BCM, and TCM. It costs more than any other scanner in this guide, but it is the only tool here that supports SKIM key programming and ECM or TCM calibration updates via the WiTech 2.0 dealer software pathway, which are jobs the Foxwell NT809BT and Autel MX808S cannot do without a hardware upgrade.

The PRO3 V5.0 runs on Android 11 with a 10.1-inch display and a wireless Bluetooth VCI that covers CAN, CANFD, DoIP, and J2534 PassThru protocols. For Jeep Wrangler JL and JT builds, the J2534 pass-through function allows the scanner to be used with WiTech 2.0 for full calibration updates, SKIM key programming, and SGW module configuration, taking it beyond what a standard FCA AutoAuth subscription covers. This is the same software pathway Stellantis dealers use, and the hardware access it provides is not replicable with a standard mid-range scanner regardless of subscription level.

My professional OBD2 scanner guide compares J2534-capable tools and dealer-level diagnostic hardware across platforms and price tiers.

On Wrangler JL, the PRO3 V5.0 reaches all modules behind the SGW including the Transfer Case Control Module for Rock-Trac 4WD active tests and calibration, the 4xe Drive Motor Generator Module and High Voltage Battery Module with cell voltage, SOC, and SOH live data, the SKIM module for security-related DTCs and limited key learning sequences, and the TIPM with full module-level fault isolation. On JK builds, it delivers bidirectional access without the AutoAuth requirement, with active tests for 3.6L Pentastar injector balance, transmission line pressure control, and ABS pump bleed. TPMS relearn is fully supported via the dedicated service menu.

The PRO3 V5.0 is not a practical everyday tool for a casual Wrangler owner. The full WiTech 2.0 pass-through requires a paid Stellantis dealer software subscription on top of the Launch annual update cost. The 10.1-inch tablet is larger and heavier than any other tool listed here, which is a practical consideration for trail-side diagnosis. If you only need gateway access and bidirectional tests without programming capability, the Foxwell NT809BT covers the majority of real-world JL Wrangler diagnostic needs at a meaningfully lower total cost.

J2534 PassThru is a specific hardware interface protocol that allows dealer-level software to communicate with a vehicle’s ECM through the scan tool as a compliant adapter. For JL Wrangler owners, WiTech 2.0 is the Stellantis software that applies ECM and TCM calibration updates, flashes SGW firmware revisions, and programs SKIM keys through the Sentry Key Remote Entry Module. The PRO3 V5.0 presents itself to WiTech 2.0 as a compliant J2534 device, which means the calibration update sequence is identical to what a Stellantis dealer runs on a dedicated Witech Micropod II, requiring only the dealer software subscription for the specific job rather than the full dealer toolset.

SKIM key programming on the JL Wrangler requires both FCA AutoAuth for SGW access and bidirectional enrollment sequence capability for the Sentry Key Remote Entry Module. The PRO3 V5.0 executes the full SKIM enrollment for replacement key fobs, covering the scenario where a Wrangler owner loses a key and faces a $300-plus dealer programming charge that the PRO3 V5.0 can handle independently once a replacement key fob blank is purchased. BCM-level active tests include DRL disable, horn output confirmation, and seat memory module reset functions that require authenticated module-level command access beyond what standard bidirectional tools reach.

The PRO3 V5.0 carries a higher total cost of ownership than any other scanner in this guide because the WiTech 2.0 dealer software subscription required for J2534 flash programming is an additional expense above the initial tool purchase and the Launch annual update fee. For an individual Wrangler owner who needs one key programmed, the combined tool and software cost may exceed a single dealer programming visit, which makes the PRO3 V5.0 most cost-effective for owners who anticipate multiple programming needs or service other JL and JT vehicles. For owners who need gateway access and bidirectional test coverage without programming capability, the NT809BT at position one handles every real-world JL diagnostic job at a meaningfully lower total investment.

Specifications

Specification	Details
Connection	Wireless Bluetooth VCI, USB-C
Supported Systems	All modules; full SKIM, BCM, TCM, 4xe hybrid, TCCM via WiTech 2.0
Bidirectional Control	Yes, full bidirectional with FCA AutoAuth
FCA AutoAuth	Yes, included
J2534 PassThru	Yes, WiTech 2.0 compatible for SKIM and ECM programming
Service Functions	35+ including TPMS relearn, EPB, oil reset, ABS bleed, key programming
Vehicle Compatibility	150+ makes; 2007-2026 Wrangler all generations; 2020+ JT; 2021+ 4xe
Display	10.1-inch Android 11 touchscreen

What’s Included

The package includes the X431 PRO3 V5.0 tablet, wireless Bluetooth VCI, OBD2 cable, USB cable, and carry case.

Handles ECU coding, adaptations, and service interval resets with fast performance and an intuitive interface.

For Jeep Wrangler diagnostics, online ECU coding sends values from Launch servers automatically, simplifying coding on VW, BMW, and Audi.

In practice on the Jeep Wrangler, offline ECU coding saves existing module configuration as a backup file and restores it after a module replacement.

Pros and Cons

Pros	Cons
J2534 PassThru enables WiTech 2.0 compatibility for ECM and TCM calibration updates and SKIM key programming on JL Wrangler	Full programming capability requires a paid Stellantis WiTech 2.0 subscription on top of the Launch annual update fee, making total cost of ownership the highest in this guide
FCA AutoAuth covers full JL and JT gateway access for bidirectional commands across all modules including SKIM and BCM
4xe High Voltage Battery Module access with cell-level voltage, SOC, and SOH live data for Wrangler PHEV diagnostics
Full TPMS relearn service with factory and aftermarket sensor learning protocols for lifted builds
TCCM active tests for Rock-Trac 4WD engagement confirmation, calibration, and transfer case fault diagnosis
J2534 DoIP and CANFD protocol support covers current Wrangler JL architecture and future Stellantis updates
10.1-inch display handles multi-PID graphing across multiple modules in a single data session

My Final Verdict

The Launch X431 PRO3 V5.0 is the right tool for Wrangler owners who need J2534-level programming access: SKIM key programming, ECM calibration, and full WiTech 2.0 compatibility on the JL and JT platform.

For everyday JL diagnostics and bidirectional tests without programming, the Foxwell NT809BT delivers most of the same capability at a lower total cost. The PRO3 V5.0 earns its price only when SKIM or ECM programming is a specific need.

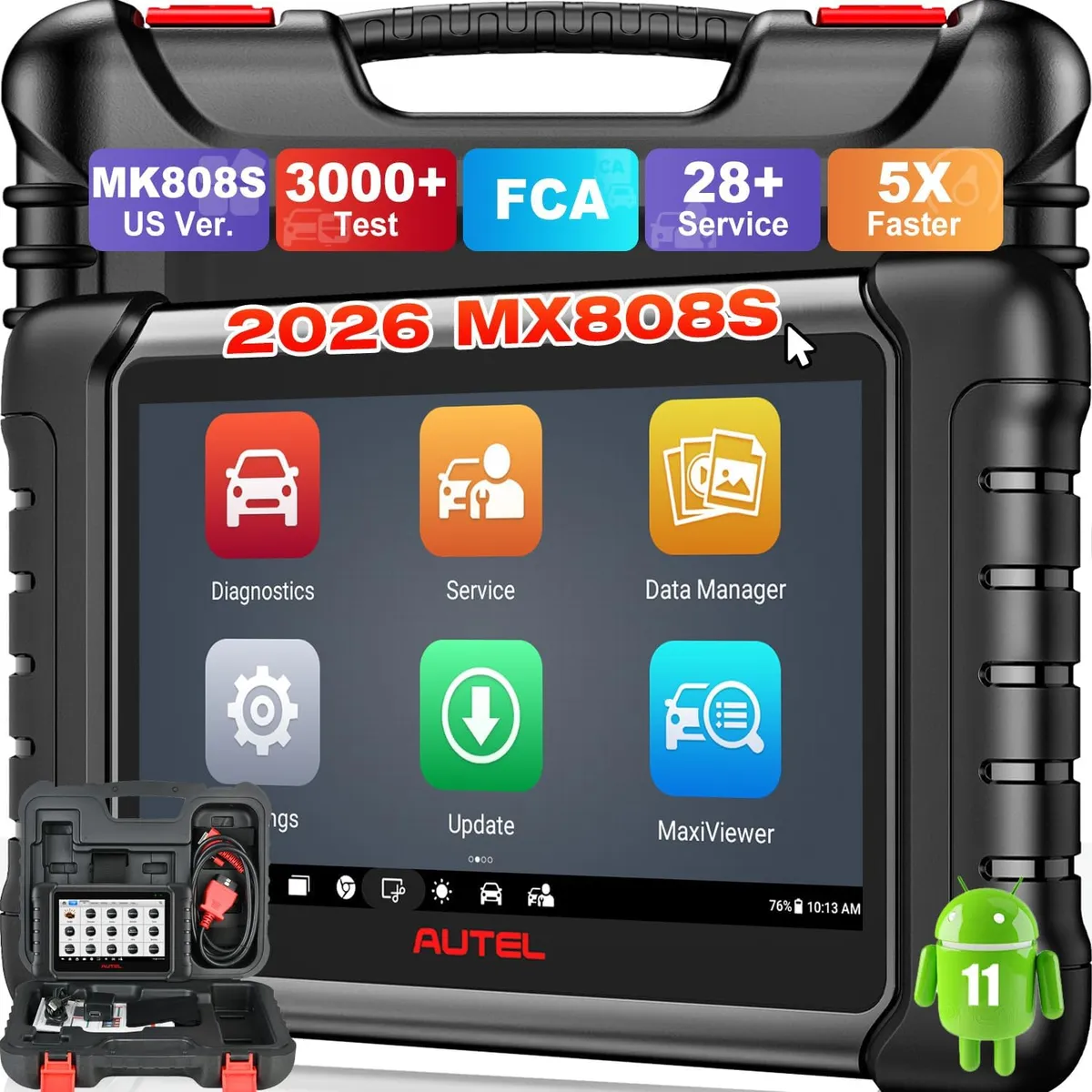

4. Autel MaxiCheck MX808S: Best FCA AutoAuth Tablet for Jeep Wrangler

• FCA AutoAuth covers full SGW bidirectional access on 2018-plus Wrangler JL and JT without bypass hardware
• 3,000+ active tests reach TIPM, TCCM, ABS, SRS, and 4xe High Voltage Battery Module
• 786+ Amazon ratings at 4.6 stars; TPMS relearn, EPB retraction, and throttle body initialization included

Overview

The MX808S fills a specific position in this guide: it is the best standalone Android tablet scanner for JL Wrangler owners who want FCA AutoAuth and bidirectional access in a self-contained unit without the wireless VCI complexity of the Foxwell NT809BT. It connects directly to the OBD2 port via cable, handles the SGW on all 2018-plus Wrangler JL builds with AutoAuth enabled, and delivers bidirectional active tests at a price point that sits between the BlueDriver and the PRO3 V5.0. The wired connection also makes it more stable than wireless tools during extended active test sessions.

The MX808S runs Android 9 on a 7-inch display and connects via a proprietary wired OBD2 adapter that handles FCA CAN bus protocols natively. AutoAuth is active through Autel’s FCA vehicle subscription, available annually. The bidirectional test library for FCA vehicles covers more than 3,000 active test commands across all supported module types. It supports EPB retraction, throttle body initialization, oil reset, and key tests, all of which require gateway access on the JL platform and are blocked on scanners without AutoAuth. Autel’s FCA database for Chrysler, Jeep, Dodge, and Ram platforms is one of the most complete in the under-$400 segment.

On Wrangler JL and JLU, the MX808S reads and clears codes from all modules behind the SGW including TIPM electrical-fault codes with module isolation, the TCCM for Selec-Trac 4WD diagnostics, SRS and ABS modules with full freeze frame data, and the SKIM for security-system DTCs. On 4xe builds, it accesses the High Voltage Battery Module for cell voltage and state of charge live data. TPMS relearn is supported via the built-in service menu with trigger and learn sequence support for factory sensor formats. On JK builds, it provides full bidirectional access without AutoAuth restrictions.

The MX808S does not support J2534 pass-through programming, so SKIM key programming and ECM calibration updates are outside its capability set. The cable connection rather than a wireless VCI means the tablet must stay near the OBD2 port during active tests. For mechanics who frequently work under the hood with the tablet positioned nearby, the wireless Foxwell NT809BT handles the same FCA AutoAuth functions with more physical flexibility at a similar price.

Specifications

Specification	Details
Connection	Wired OBD2, proprietary cable
Supported Systems	All modules behind JL SGW; full JK access without restriction; 4xe HV battery
Bidirectional Control	Yes, 3,000+ active tests
FCA AutoAuth	Yes, Autel FCA vehicle subscription
Service Functions	36+ including EPB, oil reset, TPMS relearn, throttle body, ABS bleed
Vehicle Compatibility	150+ makes; 2007-2026 Wrangler all generations; 4xe PHEV
Display	7-inch Android 9 touchscreen
Updates	1 year free, then annual

What’s Included

The package includes the MX808S tablet, OBD2 cable, USB-C cable, and a carry case.

In practice on the Jeep Wrangler, all-system auto scan checks every available ECU module sequentially and lists any modules with stored or pending codes.

Works on 80+ car makes from 1996 through current model year on gasoline and diesel 12V vehicles.

On the Jeep Wrangler, the scanner reads and clears codes across Engine, Transmission, ABS, SRS, BCM, and additional body module systems.

Pros and Cons

Pros	Cons
FCA AutoAuth covers full SGW access on 2018-plus Wrangler JL and JT without a physical bypass cable	Wired connection requires the tablet to stay near the OBD2 port during active tests, limiting physical flexibility compared to the wireless-VCI Foxwell NT809BT
3,000-plus bidirectional active test commands reach TIPM, TCCM, SRS, ABS, and BCM modules
TPMS relearn service function with sensor trigger and learn sequence works with factory sensors
4xe High Voltage Battery Module access for cell voltage, SOC, and SOH live data on PHEV builds
Wired OBD2 connection provides a more stable data link than Bluetooth during extended active tests
EPB retraction supports rear caliper service on Wrangler JL without separate manual retraction tools
Autel’s FCA vehicle database is one of the most complete in the under-$400 segment for Jeep, Chrysler, Dodge, and Ram

My Final Verdict

The Autel MaxiCheck MX808S is the right choice for JL Wrangler owners who want FCA AutoAuth bidirectional access in a wired tablet format, particularly for extended active test sessions where a stable data connection matters more than physical mobility.

At 4.6 stars and over 786 ratings it carries the highest customer satisfaction score of the bidirectional tools in this guide, and its 3,000-plus active test library covers every Wrangler service function that does not require J2534 programming.

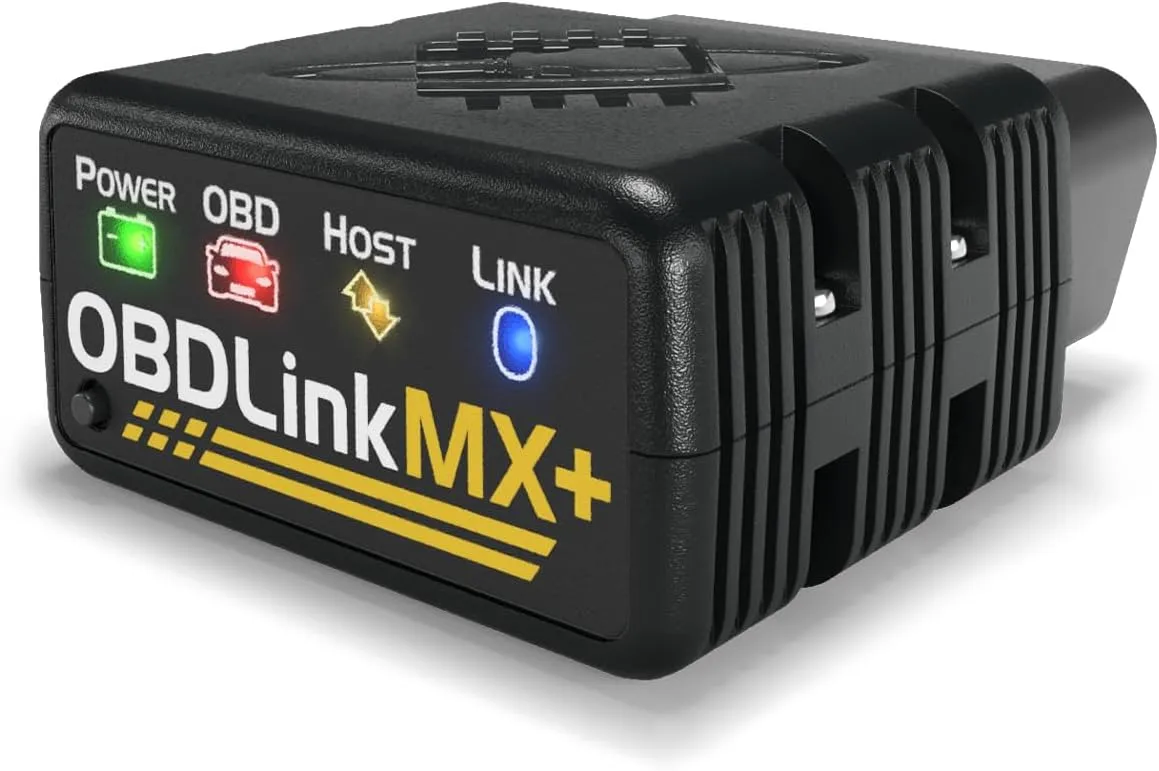

5. OBDLink MX+: Best App-Based Scanner for Jeep Wrangler

• AllPro 2.0 chip handles FCA-proprietary CAN protocols that generic ELM327 adapters fail to negotiate on JK and JL
• JScan compatibility gives JK owners axle ratio programming, TCCM recalibration, and TPMS sensor relearn
• 15,583+ Amazon ratings at 4.3 stars; one-time JScan license with no annual fee

Overview

The OBDLink MX+ earns its position through a combination no other Bluetooth adapter matches for Jeep-specific app-based diagnostics: native support for JScan, the most capable Jeep-specific diagnostic app available, paired with hardware that handles the proprietary FCA CAN bus protocols that generic ELM327 adapters fail to negotiate. For JK Wrangler owners who prefer a phone or tablet interface and want module-level access without paying an annual AutoAuth subscription, the MX+ with JScan is the most cost-effective path to full-system Jeep diagnostics available in a Bluetooth form factor.

The MX+ uses OBDLink’s proprietary AllPro 2.0 chip architecture, which handles multi-protocol CAN, ISO 15765, and the FCA-specific CAN bus protocols that most Bluetooth adapters fail to negotiate beyond basic OBD2. When paired with JScan, the combination gives JK Wrangler owners access to Jeep-specific functions including axle ratio programming, transfer case recalibration, TPMS sensor relearn with trigger support, and variant coding for options such as LED headlight behavior, fog light configuration, and seatbelt chime settings. The JScan app license is a one-time purchase per vehicle with no annual fee.

Through JScan on a JK Wrangler, the MX+ accesses the PCM for Pentastar 3.6L and 3.8L V6 live data including fuel trim, MAF, IAT, and injector pulse width, the TCM for NSG370 manual and 42RLE automatic transmission adaptation data, the BCM for TIPM-related body codes with module isolation, and the TCCM for NV241 Rock-Trac and Command-Trac 4WD diagnostics. On 4xe Wrangler builds from 2021 forward, the MX+ supports Car Scanner ELM OBD2 for hybrid system live data via FCA extended PIDs, though JScan’s 4xe module support is more limited than on JK and gasoline JL builds.

The OBDLink MX+ is not a bidirectional or active-test tool in the conventional sense. JScan supports specific variant coding and module configuration functions, but it cannot command EPB retraction, perform throttle body initialization, or run module actuation sequences in the way the Foxwell NT809BT or Autel MX808S can. On JL Wrangler builds, the MX+ reads codes through the SGW in passive mode but cannot perform authenticated active tests without a separate AutoAuth subscription. It is the primary tool for JK owners and a strong companion to a bidirectional scanner for JL owners who want app-based live data.

Specifications

Specification	Details
Connection	Bluetooth 4.0, iOS and Android
Supported Systems	Full JK access via JScan; passive read on JL SGW
Bidirectional Control	Variant coding and TPMS relearn via JScan on JK; no active tests
FCA AutoAuth	Not required on JK; passive read only on JL
JScan Compatibility	Yes, recommended adapter for JScan app
Service Functions	Axle ratio programming, TCCM recalibration, TPMS relearn, variant coding (JScan)
Vehicle Compatibility	All JK Wrangler; JL passive read; JT passive read
Live Data	25+ simultaneous FCA-specific PIDs

What’s Included

The package includes the OBDLink MX+ Bluetooth adapter with 16-pin OBD2 connector. iOS and Android compatible; JScan app purchased separately.

Transmission control module, body control module, and ABS accessible on tested vehicles in addition to the standard engine ECU.

For Jeep Wrangler diagnostics, over 20,000 verified buyers give it 4.7 stars; owners consistently highlight live data speed as its biggest differentiator.

In practice on the Jeep Wrangler, occasional Bluetooth timeout errors on older Android devices, requiring manual reconnect in the app.

Pros and Cons

Pros	Cons
AllPro 2.0 chip handles FCA-proprietary CAN protocols that generic ELM327 adapters fail to negotiate on JK and JL platforms	Cannot perform authenticated active tests or bidirectional commands on 2018-plus JL Wrangler without a separate AutoAuth subscription, limiting it to read-and-clear on JL builds
JScan compatibility gives JK owners axle ratio programming, TCCM recalibration, TPMS sensor relearn, and variant coding via a one-time app license
One-time JScan license with no annual fee makes total cost significantly lower than AutoAuth-based tools over three or more years
Live data supports 25-plus simultaneous FCA-specific PIDs including Pentastar fuel trim, MAF, injector pulse width, and TCCM status
TIPM code access on JK with module-level fault identification via JScan’s FCA DTC database
Reads codes from all accessible modules on JL Wrangler through the SGW without requiring AutoAuth authentication

My Final Verdict

The OBDLink MX+ is the best value for JK Wrangler owners who want deep Jeep-specific diagnostics, variant coding, and TPMS relearn through the JScan app without any annual subscription beyond the one-time license.

For JL owners, it is a useful passive code reader but not a replacement for an AutoAuth-capable bidirectional tool. JK owners who want active test capability alongside JScan should add the ANCEL DS500BT as a bidirectional companion.

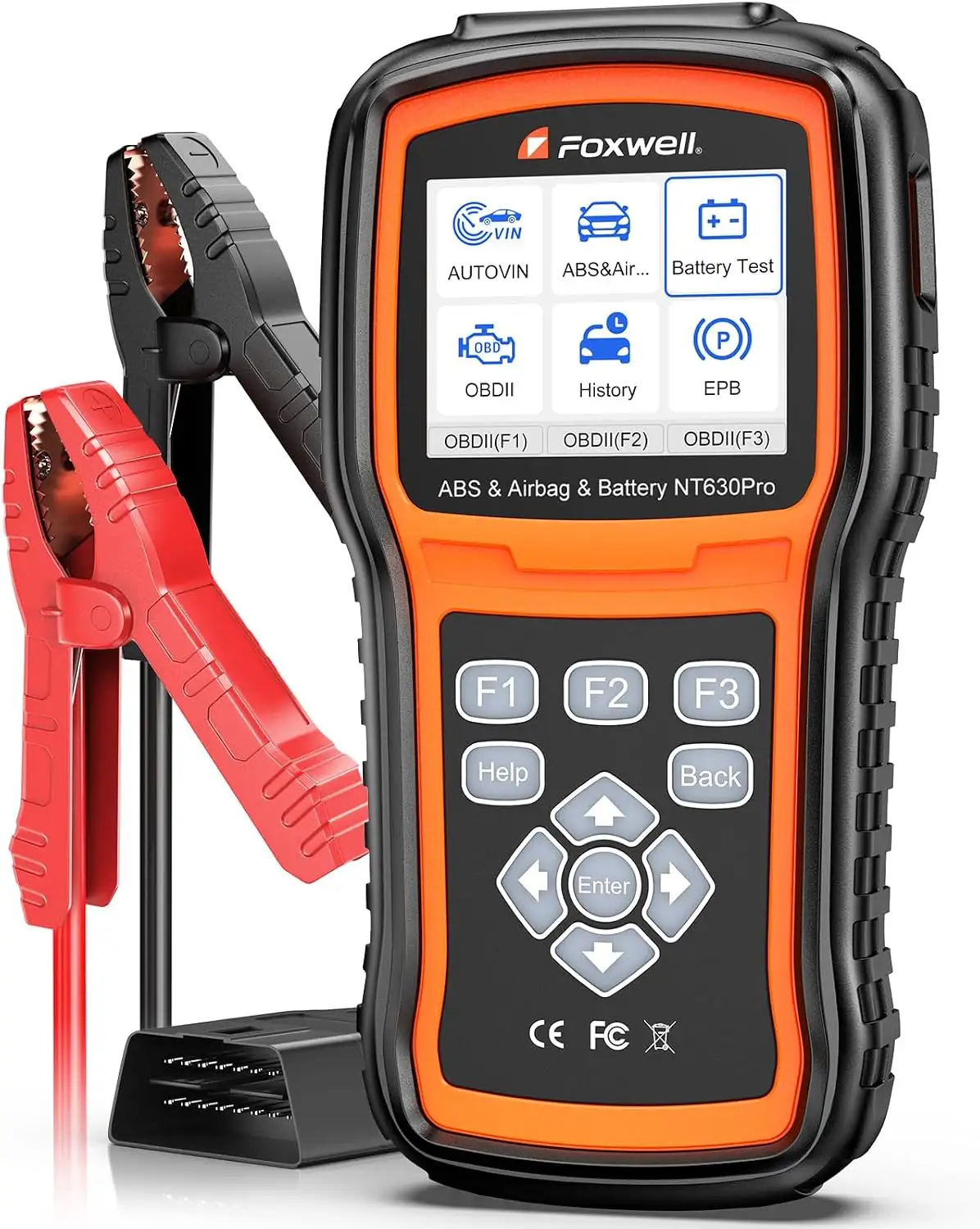

6. Foxwell NT630 Pro: Best TPMS and ABS Scanner for Jeep Wrangler

• Full TPMS service: sensor triggering, ID reading, aftermarket programming, and module relearn for lifted Wranglers
• Built-in 315 MHz and 433 MHz RF covers JK and JL factory sensor frequencies without an external tool
• 156+ Amazon ratings at 4.3 stars; ABS brake bleed and SRS code reading across all Wrangler generations

Overview

The NT630 Pro addresses a gap that most Wrangler guides ignore entirely: TPMS sensor management for lifted builds. Every time a Wrangler owner installs aftermarket 35- or 37-inch tires with new wheels and sensors, the factory TPMS module loses its sensor IDs, and the warning light stays on permanently until the sensors are relearned. Most scanners in this guide can read the resulting TPMS code, but only the NT630 Pro provides the full sensor triggering, learning, and programming sequence needed to resolve it without a dealership visit.

The NT630 Pro handles TPMS service at every stage: it reads existing sensor IDs in all four wheel positions, triggers sensors via built-in 315 MHz and 433 MHz RF signal to wake and identify them, programs new aftermarket sensors to match the vehicle, and runs the sensor learning sequence that writes the new IDs to the TPMS control module. It supports factory Jeep TPMS sensors and a wide range of aftermarket formats including Schrader and Dill. The tool also reads and clears ABS and SRS codes across all Wrangler generations and supports ABS brake bleed sequences on JK and JL.

On Wrangler JK, the NT630 Pro reads full ABS module codes including wheel speed sensor faults, hydraulic pump circuit codes, and pressure sensor DTCs without requiring FCA enhanced protocol access. On JL builds, it reads ABS and SRS codes through the SGW in passive mode, though bidirectional ABS bleed commands on JL require a tool with FCA AutoAuth. The TPMS service function works identically on JK and JL, as the TPMS module communicates directly with the sensor RF signal rather than through the CAN gateway. SRS airbag codes are readable and clearable across all generations.

My OBD2 scanner for ABS and SRS guide covers braking system and airbag module access across scanner categories.

The NT630 Pro is not a full-system scanner and is not intended to be. It reads ABS, SRS, and TPMS module codes but does not access the engine, transmission, BCM, or TCCM for 4WD diagnostics. JL Wrangler owners who need ABS bidirectional commands with full gateway access will need the Foxwell NT809BT or Autel MX808S for that function. The NT630 Pro is best used as a specialist tool alongside a full-system scanner, or as a standalone solution for owners whose primary need is managing TPMS sensors across multiple wheel and tire sets.

Specifications

Specification	Details
Connection	Wired OBD2
Supported Systems	ABS, SRS, TPMS; reads codes on engine and transmission but no bidirectional
Bidirectional Control	TPMS relearn and ABS bleed service functions only
TPMS Frequencies	315 MHz and 433 MHz RF trigger built in
TPMS Sensor Support	Factory Jeep, Schrader, Dill, universal relearn formats
Service Functions	TPMS sensor trigger/learn/program, ABS bleed, oil reset, battery reset
Vehicle Compatibility	2007-2026 Wrangler JK/JL/JLU; 2020+ JT Gladiator
Display	Compact standalone touchscreen, no phone required

What’s Included

The package includes the NT630 Pro scanner, OBD2 cable, TPMS trigger tool (built in), USB cable, and carry case.

Lifetime free updates keep vehicle coverage current as new model years are released.

For Jeep Wrangler diagnostics, BMS reset clears the battery service counter after replacing the battery on European and Asian vehicles.

In practice on the Jeep Wrangler, EPB service mode retracts and re-applies the electronic parking brake caliper during rear pad replacement.

Pros and Cons

Pros	Cons
Full TPMS service coverage including sensor triggering, ID reading, new sensor programming, and module learning for aftermarket tire setups on lifted Wranglers	Does not access engine, transmission, BCM, or TCCM systems; Wrangler owners who need full-system coverage will need a separate scanner alongside it
Supports factory Jeep TPMS sensors and aftermarket formats including Schrader and Dill for custom wheel builds
Built-in 315 MHz and 433 MHz RF covers both JK and JL factory sensor frequencies without a separate trigger tool
ABS brake bleed service function supports post-suspension and brake component service on JK builds
Reads and clears SRS airbag codes including dual-stage deployment and seat belt pre-tensioner faults across all Wrangler generations
Compact standalone form factor with built-in screen requires no phone or tablet for field use

My Final Verdict

The Foxwell NT630 Pro is the right specialist tool for any Wrangler owner who regularly swaps between street and trail wheel and tire setups and needs full TPMS sensor programming capability without a dealership appointment.

It is not a replacement for a full-system scanner but works well as a dedicated TPMS and ABS tool alongside the BlueDriver Pro or OBDLink MX+ for JK owners, or the Foxwell NT809BT for JL owners who also need gateway access.

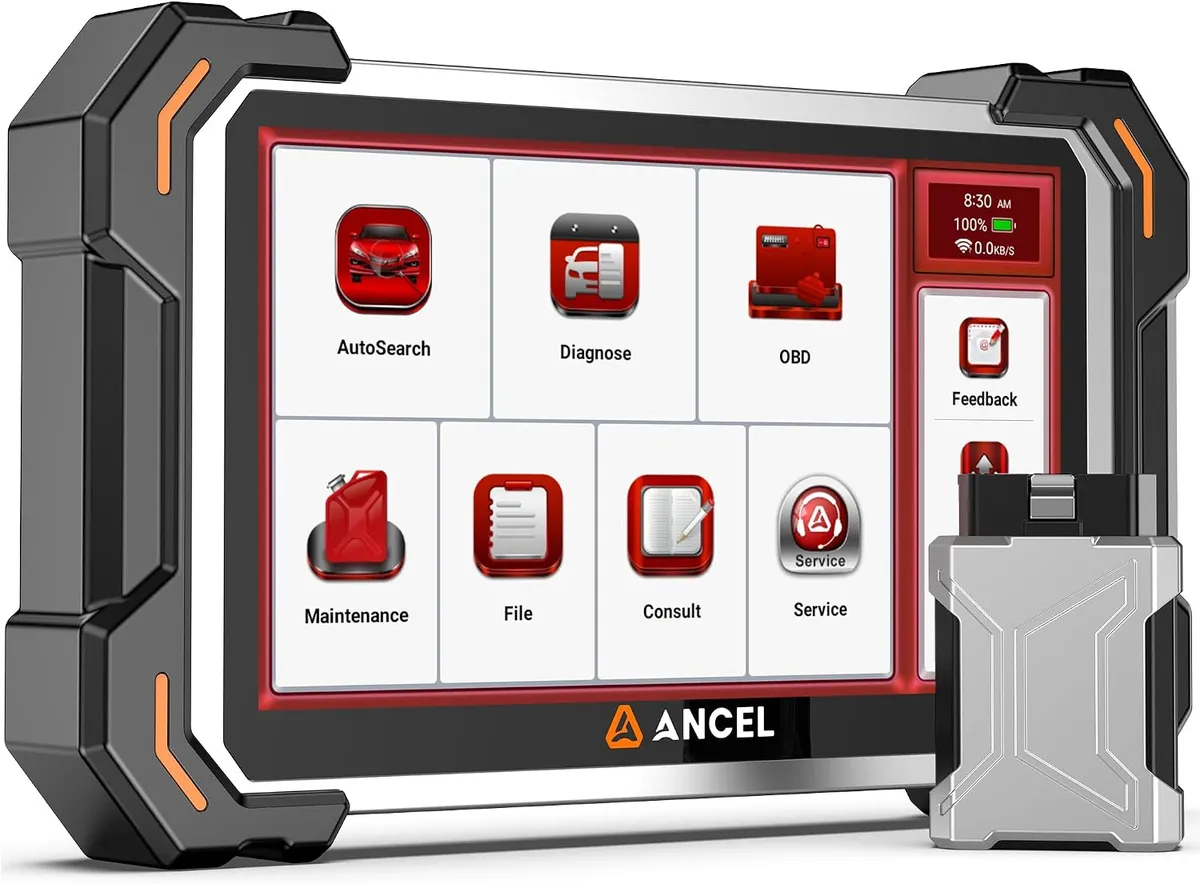

7. ANCEL DS500BT: Best Budget Bidirectional Scanner for Jeep Wrangler

• Bidirectional active tests on JK Wrangler include EPB retraction, throttle body initialization, and ABS pump test
• Full-system scan covers PCM, TCM, ABS, SRS, BCM, and TPMS with FCA manufacturer-specific DTC descriptions
• 1,141+ Amazon ratings at 4.3 stars; no annual subscription required for JK full bidirectional access

Overview

The DS500BT fills a gap between the code-reader tier and the $300-plus bidirectional tools: it brings genuine bidirectional active test capability to JK Wrangler owners at a price point where the competition is mostly passive scanners. For the JK owner who wants to command an ABS pump test, trigger a fuel injector balance test on the Pentastar 3.6L, or retract rear EPB calipers for brake service, the DS500BT is the lowest-cost tool in this guide that supports those operations without an annual subscription.

The DS500BT pairs with the ANCEL app via Bluetooth 5.0 and delivers a full-system scan that covers engine, transmission, ABS, SRS, TPMS, body, and chassis on FCA-platform vehicles. The bidirectional test library for Chrysler and Jeep platforms includes actuator commands for throttle body initialization, fuel pump prime, cooling fan operation, EPB retraction, and ABS component tests. The FCA vehicle database includes manufacturer-specific codes beyond the standard SAE set, covering the B, C, and U code ranges that flag BCM, ABS, and TIPM-related faults on JK Wrangler builds.

The same Stellantis code set applies on the WK2 and WL Grand Cherokee platform; my Jeep Grand Cherokee OBD2 scanner guide covers the tools that handle TIPM-related faults and HEMI misfires on that architecture.

On Wrangler JK, the DS500BT accesses all modules without AutoAuth restrictions: PCM codes for the 3.6L Pentastar and 3.8L V6 with full manufacturer DTC descriptions, TCM codes for the NSG370 manual and 42RLE automatic transmission, ABS module codes with wheel speed sensor identification, and BCM codes that include TIPM-related electrical faults. The TPMS function reads current sensor IDs and pressure values but does not perform full sensor programming or relearn sequences. On JL builds, the DS500BT reads codes through the SGW in passive mode and performs a limited set of basic service resets, but bidirectional active tests require AutoAuth.

My budget OBD2 scanner guide covers capable entry-level tools for Jeep owners who do not need professional-grade diagnostic depth.

The DS500BT’s bidirectional capability is solid for the price but narrower than the Foxwell NT809BT or Autel MX808S. The actuator command library for FCA vehicles covers the most common service functions but does not reach the TCCM for 4WD module-level commands or the SKIM for security-system active tests. TPMS sensor relearn is not supported as a full service function. On JL Wranglers, the absence of FCA AutoAuth limits active test access entirely. JK owners will find it adequate for the majority of real-world service operations; JL owners should budget for the NT809BT or MX808S instead.

Specifications

Specification	Details
Connection	Bluetooth 5.0, iOS and Android
Supported Systems	Engine, TCM, ABS, SRS, TPMS, BCM, body, chassis on JK; passive read on JL
Bidirectional Control	Yes on JK; blocked on JL without AutoAuth
FCA AutoAuth	Not required on JK
Service Functions	EPB retraction, throttle body init, ABS pump test, oil reset, fuel pump prime
Vehicle Compatibility	2007-2018 Wrangler JK full bidirectional; 2018+ JL passive read
Live Data	Customizable PID selection across engine, drivetrain, and body
Subscription	None required for JK diagnostics

What’s Included

The package includes the DS500BT Bluetooth adapter, OBD2 cable, and USB cable. The ANCEL app is free on iOS and Android.

November 2025 software update added enhanced special functions for Hyundai (version 26.48) and Nissan instrument systems (version 23.78).

For Jeep Wrangler diagnostics, 3,000+ bidirectional active tests available for fuel injectors, fuel pumps, ABS solenoids, and other actuators on supported vehicles.

In practice on the Jeep Wrangler, CAN-FD protocol support accesses newer vehicle architectures including 2019 and newer GM and European platforms.

Pros and Cons

Pros	Cons
Bidirectional active tests on JK Wrangler include throttle body initialization, EPB retraction, ABS pump test, and fuel pump prime without a subscription	Bidirectional commands are blocked on 2018-plus Wrangler JL without FCA AutoAuth, limiting the DS500BT to passive code reading on JL builds
Full-system scan covers engine, transmission, ABS, SRS, TPMS, body, and chassis on FCA-platform JK builds
FCA manufacturer-specific DTC database covers B, C, and U code ranges for BCM, ABS, and TIPM-related faults
Bluetooth 5.0 connection is stable and fast for live data streaming across multiple simultaneous PID channels
No annual subscription required for JK Wrangler diagnostics, keeping total ownership cost the lowest among bidirectional tools in this guide
iOS and Android compatible with a clean app interface suited to owners with no prior scan tool experience

My Final Verdict

The ANCEL DS500BT is the right choice for JK Wrangler owners who need genuine bidirectional capability at the lowest price in this guide, without any annual subscription requirement.

For JL owners who need active tests, the budget saved on the DS500BT is not enough to offset the missing AutoAuth access. JL owners should step up to the Foxwell NT809BT or Autel MX808S.

8. Autel MaxiDAS DS808S: Best Advanced Scanner for 4xe for Jeep Wrangler

• High Voltage Battery Pack Module access with cell voltage, SOC, SOH, and thermal management on Wrangler 4xe
• ECU coding for FCA platforms includes Hybrid Control Module variant coding not available on the MX808S
• 819+ Amazon ratings at 4.4 stars; FCA AutoAuth for full JL SGW bidirectional access

Overview

The DS808S is the right tool for Wrangler 4xe owners who have run into the ceiling of mid-tier scanners on the hybrid platform. The 4xe PHEV architecture adds two proprietary modules that most scanners below the $400 threshold cannot access with meaningful depth: the Drive Motor Generator Module and the High Voltage Battery Pack Module. The DS808S reaches both with bidirectional capability, FCA AutoAuth for the JL SGW, and an ECU coding function set that the Autel MX808S at position four in this guide does not support. It is the most capable tool in this guide short of the Launch PRO3 V5.0 for 4xe-specific diagnostics.

The DS808S runs on a 7-inch Android display and connects via Autel’s MaxiVCI Mini wireless adapter, which handles FCA CAN and CANFD protocols across all current Wrangler builds. FCA AutoAuth is active through the Autel annual vehicle subscription, giving full SGW access on JL and JT. The ECU coding function set distinguishes the DS808S from the MX808S: it supports Autel’s active coding protocol for FCA vehicles, which includes module variant coding for the 4xe Hybrid Control Module, transmission configuration updates, and body module option coding. The bidirectional test library mirrors the MX808S but with extended FCA hybrid platform coverage.

On Wrangler 4xe from 2021 forward, the DS808S accesses the High Voltage Battery Pack Module for individual cell voltage monitoring, state of charge, state of health, and thermal management live data, the Drive Motor Generator Module for torque output, RPM, temperature, and inverter status, and the Hybrid Control Module for charge management and regenerative braking data. On gasoline JL and JLU builds, it delivers the same coverage as the MX808S: full bidirectional access behind the SGW with AutoAuth, TCCM 4WD diagnostics, EPB retraction, TPMS relearn, and TIPM fault isolation. On JK platforms, it provides full bidirectional access without AutoAuth requirements.

The DS808S does not reach the J2534 PassThru programming capability of the Launch PRO3 V5.0, so SKIM key programming and full ECM flash updates through WiTech 2.0 are outside its range. The wireless VCI adds a small setup step compared to the wired MX808S. The price sits above the MX808S, and the DS808S is only the right choice over the MX808S if you specifically need the 4xe hybrid module depth or ECU coding functions. For owners of gasoline JL Wranglers who do not need ECU coding, the MX808S delivers comparable everyday diagnostic capability at a lower price.

Specifications

Specification	Details
Connection	Wireless MaxiVCI Mini Bluetooth adapter
Supported Systems	All JL SGW modules via AutoAuth; 4xe HV Battery, Drive Motor Generator, Hybrid Control Module
Bidirectional Control	Yes, full bidirectional with FCA AutoAuth
FCA AutoAuth	Yes, Autel annual vehicle subscription
ECU Coding	Yes, FCA platform variant coding including 4xe Hybrid Control Module
Service Functions	36+ including EPB, TPMS relearn, ABS bleed, oil reset, 4xe battery conditioning
Vehicle Compatibility	2007-2026 Wrangler all generations; 2021+ 4xe PHEV
Display	7-inch Android touchscreen

What’s Included

The package includes the DS808S tablet, MaxiVCI Mini Bluetooth VCI, OBD2 cable, USB-C cable, and carry case.

On the Jeep Wrangler, FCA AutoAuth for 2024 Chrysler, Dodge, Jeep, and Ram vehicles included in the base package.

The scanner works on 10,000+ models from 1996 through current model year across 150+ vehicle brands.

For Jeep Wrangler diagnostics, bi-directional control adds actuator testing without a separate component tester.

Pros and Cons

Pros	Cons
High Voltage Battery Pack Module access with individual cell voltage, SOC, SOH, and thermal management live data on Wrangler 4xe	Does not support J2534 PassThru programming for SKIM key coding or WiTech 2.0 ECM flash updates; the Launch PRO3 V5.0 is the only tool in this guide with that capability
Drive Motor Generator Module coverage with torque output, RPM, temperature, and inverter status for 4xe PHEV diagnostics
ECU coding function for FCA platforms supports Hybrid Control Module variant coding and body module option configuration
FCA AutoAuth covers full SGW access on 2018-plus Wrangler JL and JT for bidirectional commands across all modules
Wireless MaxiVCI Mini adapter handles FCA CANFD protocols for all current JL and JT Wrangler builds
TCCM bidirectional tests cover Selec-Trac and Rock-Trac 4WD engagement, calibration, and module-level fault diagnosis
TPMS relearn service with trigger support works with factory sensors across all Wrangler generations

My Final Verdict

The Autel MaxiDAS DS808S is the right choice for Wrangler 4xe owners who need deep hybrid module diagnostics and ECU coding beyond what the MX808S provides, without stepping up to the J2534 programming tier of the Launch PRO3 V5.0.

For gasoline JL owners who do not need 4xe module depth or ECU coding, the Autel MX808S at position four delivers comparable everyday diagnostic capability at a lower price.

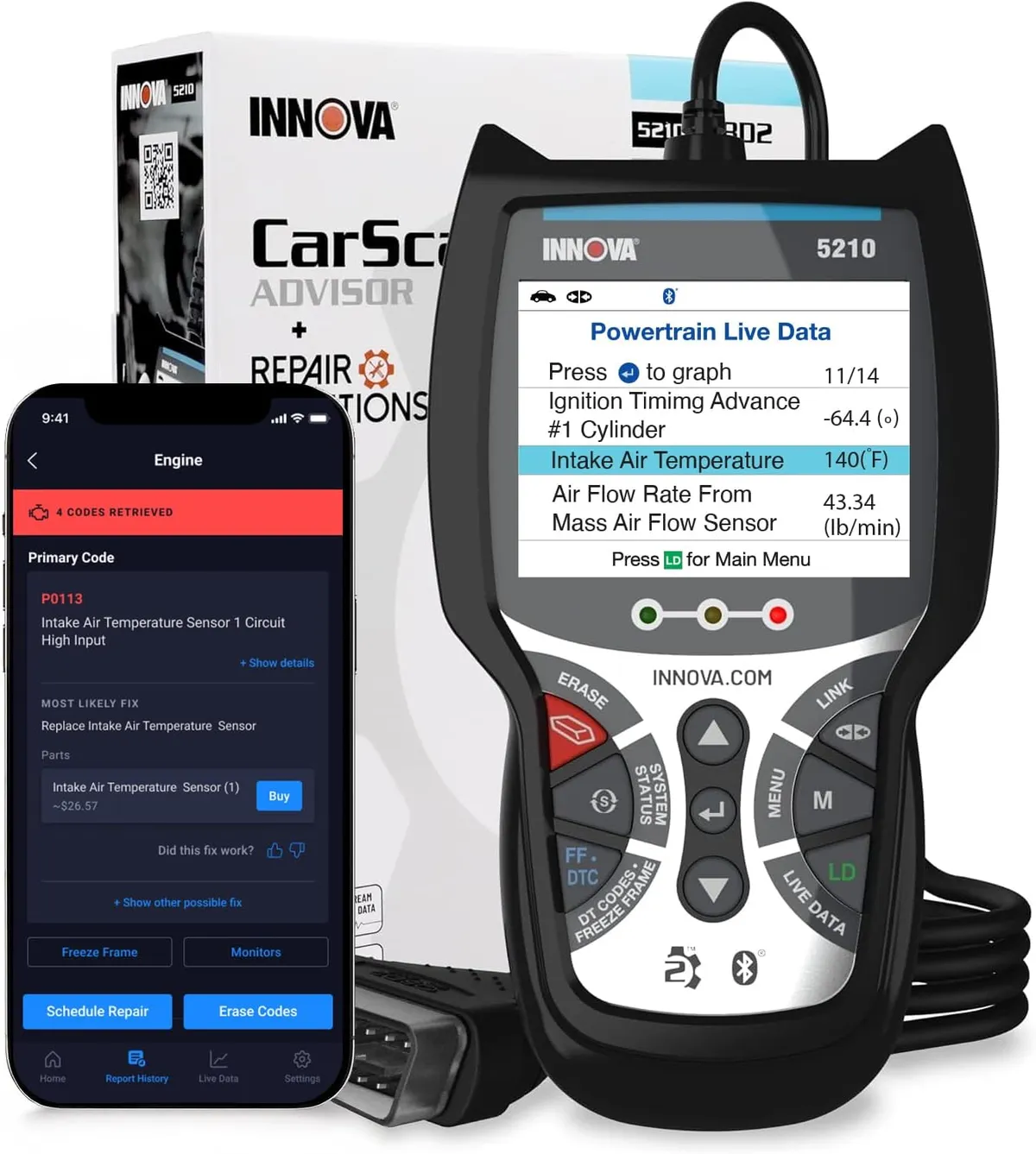

9. Innova 5210: Best Budget Standalone Scanner for Jeep Wrangler

• Full-system code reading on JK Wrangler: PCM, TCM, ABS, SRS, BCM, and TPMS with FCA manufacturer descriptions
• Standalone 5-inch color display with no phone, app, or Bluetooth pairing required for trail-side use
• 4,267+ Amazon ratings at 4.4 stars; TIPM-related BCM and body codes with module-level identification on JK

Overview

The Innova 5210 targets JK Wrangler owners who want a simple, standalone full-system scanner with a color screen and no phone dependency, without paying for bidirectional capability they do not need. It is the lowest-cost tool in this guide that reads codes from all major Wrangler systems and displays them on a built-in screen with manufacturer-specific DTC descriptions. For the JK owner who keeps a scanner in the Jeep for trail-side troubleshooting, or who wants a reliable code reader that covers every module without relying on a smartphone app, it is the practical choice.

The Innova 5210 connects via wired OBD2 with a 5-inch color touchscreen and requires no Bluetooth pairing or app installation. The FCA vehicle database covers all major Wrangler system modules with manufacturer-specific DTC descriptions in the B, C, P, and U code ranges. TIPM-related body codes and TCM shift-fault codes appear with proper descriptions rather than generic SAE text. The tool supports oil reset, EPB reset, throttle body reset, battery management reset, and TPMS reset as service functions. Live data streams from all accessible modules and is viewable on the built-in display as a list or graph.

On Wrangler JK, the Innova 5210 accesses all modules without AutoAuth restrictions: PCM for 3.6L Pentastar and 3.8L V6 fault codes including P030X misfires, P0128 thermostat codes, and P0456 EVAP small leak codes common on lifted JKs, TCM for NSG370 manual and 42RLE automatic transmission faults, ABS module for wheel speed sensor and hydraulic pump codes, BCM for TIPM-related electrical faults with module-level identification, and SRS for airbag and seat belt pre-tensioner codes. On JL builds, it reads codes from all accessible modules through the SGW in passive mode and performs the supported service resets, but has no bidirectional capability.

The Innova 5210 does not support bidirectional active tests on any Wrangler generation. This means it cannot command EPB retraction, run an ABS pump actuation test, perform throttle body initialization with force-close confirmation, or trigger TPMS sensors for a full relearn sequence. It is a standalone code reader and service reset tool. JK owners who need active tests should move up to the ANCEL DS500BT at position seven or the BlueDriver Pro at position two for Repair Reports. The 5210 is best for owners who want one self-contained tool for reading codes, clearing faults, and resetting service indicators without managing apps or subscriptions.

Specifications

Specification	Details
Connection	Wired OBD2
Supported Systems	Engine, TCM, ABS, SRS, BCM, TPMS with FCA manufacturer DTC descriptions
Bidirectional Control	No
FCA AutoAuth	Not required; JK full system read without subscription
Service Functions	Oil reset, EPB reset, throttle body reset, battery reset, TPMS warning reset
Vehicle Compatibility	2007-2018 Wrangler JK full system; 2018+ JL passive read
Display	5-inch color touchscreen, standalone
Subscription	None required

What’s Included

The package includes the Innova 5210 scanner, OBD2 cable, USB cable, and quick start guide.

In practice on the Jeep Wrangler, does NOT read SRS (airbag) codes, which is the key functional difference compared to the Innova 5610.

Free RepairSolutions2 app integration returns VIN-matched fix recommendations verified by ASE mechanics.

On the Jeep Wrangler, engine RPM, coolant temperature, and oxygen sensor readings available in live data during a running engine test.

Pros and Cons

Pros	Cons
Full-system code reading on JK Wrangler covers PCM, TCM, ABS, SRS, BCM, and TPMS with FCA manufacturer-specific DTC descriptions	No bidirectional active test capability on any Wrangler generation; owners who need to command actuators or perform module-level tests will need to step up to a bidirectional tool
Standalone 5-inch color touchscreen requires no phone, app installation, or Bluetooth pairing for field use
Reads TIPM-related BCM and body codes with module-level identification on JK builds
Service reset functions cover oil, EPB, throttle body, battery management, and TPMS warning light across JK and JL
Reads manufacturer-specific P030X misfire, P0128 thermostat, and P0456 EVAP codes common on JK Pentastar builds
No subscription fee and no annual update requirement for JK full-system code reading and service resets

My Final Verdict

The Innova 5210 is the right standalone code reader for JK Wrangler owners who want a simple, self-contained tool for full-system diagnostics without a phone, app, or subscription.

It does not replace a bidirectional scanner for any active test operation, but for trail-side code reading, clearing, and service resets it covers every function a JK owner needs in a compact form factor at the lowest price in this guide.

Comparison Table: Best OBD2 Scanners for Jeep Wrangler

Scanner	Best For	FCA AutoAuth	Bidirectional	JK Access	JL Access	4xe Hybrid
Foxwell NT809BT	Best Overall	Yes	Yes	Full	Full (AutoAuth)	Yes
BlueDriver Pro	Best Value / JK	No	No	Full read	Passive read	Passive
Launch X431 PRO3 V5.0	Best Premium	Yes	Yes	Full	Full + J2534	Yes
Autel MaxiCheck MX808S	Best AutoAuth Tablet	Yes	Yes	Full	Full (AutoAuth)	Basic
OBDLink MX+	Best App-Based	No	JScan only	Full (JScan)	Passive read	Limited
Foxwell NT630 Pro	Best TPMS/ABS	No	TPMS/ABS only	TPMS/ABS	TPMS/ABS passive	No
ANCEL DS500BT	Best Budget Bidir.	No	Yes on JK	Full bidir.	Passive read	No
Autel MaxiDAS DS808S	Best Advanced/4xe	Yes	Yes	Full	Full + ECU coding	Deep
Innova 5210	Best Budget Standalone	No	No	Full read	Passive read	No

How to Choose the Right OBD2 Scanner for Your Jeep Wrangler

Choosing a scanner for the Wrangler is not the same as choosing one for a typical daily driver. The platform spans three distinct generations with fundamentally different diagnostic access requirements, a proprietary app ecosystem that outperforms most generic tools on older builds, and a PHEV variant whose hybrid modules demand scanner capability that most guides never address. The sections below cover the four questions every Wrangler owner needs to answer before buying.

JK vs JL: The Security Gateway Changes Everything

The single most important factor when choosing a Wrangler OBD2 scanner is your model year. Wrangler JK models from 2007 through 2018 use a standard OBD2 interface with no gateway restrictions. Any scanner with genuine FCA enhanced protocol support, including the BlueDriver Pro and OBDLink MX+, can reach all modules on a JK without paying for any subscription. Full-system codes, live data, and bidirectional active tests are accessible to any capable tool on the JK platform.

The 2018-plus Wrangler JL, JLU, and JT Gladiator introduced the Security Gateway Module, which sits between the OBD2 port and the vehicle’s CAN bus. The SGW blocks all bidirectional commands from any scanner that has not been authenticated through FCA’s AutoAuth service. On an unauthenticated JL, a scanner can read codes passively, but it cannot command EPB retraction, run throttle body initialization, clear transmission adaptation, or perform any module actuation test. If you own a JL or JT and want bidirectional capability, FCA AutoAuth is not optional.

AutoAuth costs approximately $50 per year and is tied to the individual scan tool’s device ID. Foxwell, Autel, and Launch each handle the subscription differently through their own update platforms, but the annual cost is consistent across brands. Physical bypass cables (the 12-plus-8 pin adapters that connect directly to the gateway module hardware) are an alternative that bypasses the subscription entirely, but they require routing a cable under the dash and are not compatible with the standard OBD2 socket that all consumer tools use. For most owners, the authenticated scanner route through AutoAuth is the practical path.

TIPM Diagnosis: What Your Scanner Actually Needs to Access

The Totally Integrated Power Module is the central power distribution and relay control unit on the Wrangler JK. When a TIPM begins to fail, it produces a cascade of seemingly unrelated codes across the BCM, ABS module, PCM, and body systems simultaneously, which is why JK owners chasing electrical faults often replace multiple components before identifying the TIPM as the root cause. A scanner that reads only generic SAE codes, or that reports TIPM-related DTCs without module-level context, will give you a list of symptoms rather than a diagnosis.

For Wrangler owners who want to diagnose from a phone or tablet, my OBD2 scanner for iPhone guide covers app-based tools that deliver FCA manufacturer-level code access on iOS.

To properly identify a TIPM fault, the scanner needs to read manufacturer-specific U-code series faults (U0100, U0140, and U110x range) with module identification, meaning the DTC description must specify which module is reporting a lost communication event and which module it lost communication with. The BlueDriver Pro’s Repair Reports are particularly useful here because they include technician-verified repair notes for common TIPM DTC patterns on specific JK model years. The Foxwell NT809BT and Autel MX808S both isolate TIPM codes at the module level and support the active tests needed to confirm whether a TIPM is the fault source or merely a victim of another electrical problem upstream.

TPMS Relearn for Lifted Wranglers

Aftermarket lift kits and oversized tire packages are the most common modification on the Wrangler platform, and they create a repeating TPMS problem that a standard code reader cannot resolve. When new wheels and sensors are installed, the factory TPMS control module does not recognize the new sensor IDs, and the warning light stays on regardless of tire pressure. Clearing the TPMS code does not fix it; the module needs to learn the new sensor IDs through an active relearn sequence.

A full TPMS relearn requires a scanner with RF trigger capability to wake each sensor and transmit its ID, followed by a learn sequence that writes all four IDs to the TPMS control module. The Foxwell NT630 Pro is the dedicated specialist for this task. The Foxwell NT809BT and Autel MX808S also support TPMS relearn as part of their service function libraries. The OBDLink MX+ with JScan handles TPMS sensor relearn on JK builds through the JScan service menu, which makes it a cost-effective option for JK owners who already use JScan for other Jeep-specific functions.

Wrangler 4xe: What Hybrid-Specific Access Requires

The Wrangler 4xe introduced in 2021 adds two modules that most OBD2 guides treat as standard FCA coverage but are not: the High Voltage Battery Pack Module and the Drive Motor Generator Module. These modules communicate over a dedicated high-voltage CAN network that sits behind the SGW and requires both FCA AutoAuth and hybrid-specific software coverage that not all authenticated tools provide. Reading a generic P0D2x hybrid battery code from the standard OBD2 port is not the same as accessing individual cell voltage, SOH, and thermal management data from the Battery Pack Module directly.

Of the tools in this guide, the Autel DS808S and the Launch PRO3 V5.0 provide the deepest 4xe hybrid module access. The Foxwell NT809BT and Autel MX808S cover the 4xe modules with AutoAuth active but with less depth on ECU coding and hybrid-specific service functions. The OBDLink MX+ with Car Scanner ELM reads FCA extended PIDs on 4xe builds but without the module-level bidirectional capability that the 4xe diagnostic process requires for anything beyond live data monitoring. If you own a 4xe and need to diagnose battery degradation, regenerative braking faults, or hybrid control module issues, the DS808S is the minimum capability threshold in this guide.

FAQs

What is the best OBD2 scanner for Jeep Wrangler JL?

The Foxwell NT809BT is the best OBD2 scanner for the Wrangler JL because it includes native FCA AutoAuth support for the Security Gateway Module, delivers wireless bidirectional active tests across all JL modules, and covers TCCM 4WD diagnostics and TPMS relearn within a single tool. It handles the gateway access requirement that defines JL diagnostics without requiring a physical bypass cable or a separate AutoAuth device subscription beyond the standard Foxwell update plan.

Does the Jeep Wrangler have a security gateway module?

The 2018-plus Wrangler JL, JLU, and JT Gladiator all have the FCA Security Gateway Module. Pre-2018 Wrangler JK models do not have the SGW, so any scanner with FCA enhanced protocol support can perform bidirectional active tests on a JK without AutoAuth. The SGW was introduced across all FCA Stellantis platforms starting in the 2018 model year to prevent unauthorized access to the vehicle’s CAN bus network.

What is FCA AutoAuth and do I need it?

FCA AutoAuth is a Stellantis-mandated annual subscription service that authenticates aftermarket scan tools for full bidirectional access on 2018-plus Jeep, Chrysler, Dodge, and Ram vehicles. Without AutoAuth, a scanner connected to a JL Wrangler can read codes passively but cannot perform any active test or bidirectional command. The subscription costs approximately $50 per year and is device-specific. If you own a 2018-plus Wrangler JL or JT Gladiator and want to run active tests, AutoAuth is required.

Can I use a regular OBD2 scanner on a 2018+ Jeep Wrangler?

A standard OBD2 scanner reads generic emission-related codes from the engine module on a 2018-plus Wrangler JL through the SGW in passive mode. It cannot read manufacturer-specific codes from transmission, ABS, SRS, BCM, or TCCM modules, and it cannot perform any active test or bidirectional command. To access all systems on a JL Wrangler and perform module-level diagnostics, the scanner needs FCA AutoAuth authentication. On a pre-2018 Wrangler JK, a scanner with FCA enhanced protocol support can access all modules without any subscription requirement.

What OBD2 scanner works best with JScan for Jeep Wrangler?

The OBDLink MX+ is the best hardware adapter for JScan on the Jeep Wrangler. JScan explicitly recommends the OBDLink MX+ for its AllPro 2.0 chip architecture, which handles the FCA-proprietary CAN protocols that generic ELM327 adapters fail to negotiate on Jeep platforms. The MX+ with JScan gives JK Wrangler owners axle ratio programming, TCCM transfer case recalibration, TPMS sensor relearn, and Jeep-specific variant coding through a one-time app license with no annual subscription. For JL owners, JScan reads codes through the SGW but bidirectional commands require AutoAuth.

What are common OBD2 codes on the Jeep Wrangler?

The most frequent codes on the Wrangler JK are P0128 (thermostat below regulating temperature, common on high-mileage Pentastar 3.6L engines), P0456 (EVAP system small leak, which appears on lifted JKs when the vapor canister lines are disturbed by a lift kit), P030X random and cylinder-specific misfires on the 3.6L, and U-series TIPM communication faults including U0100 and U0140 on higher-mileage JK builds with failing TIPM relays. On the JL, P1D73 and P1D71 hybrid system faults appear on 4xe builds with battery conditioning needs, and B-series BCM codes tied to the SGW authentication process appear when non-authenticated tools attempt gateway access.

Can an OBD2 scanner diagnose TIPM issues on a Jeep Wrangler JK?

Yes, but the scanner needs to read manufacturer-specific U-code series faults rather than generic OBD2 codes to identify TIPM issues accurately. A TIPM fault produces lost communication codes in the U0100 to U01xx range across multiple modules simultaneously, and a scanner that reads only generic codes will report them without module-level context. Tools like the BlueDriver Pro, Foxwell NT809BT, and Autel MX808S read these codes with module identification that specifies which module is reporting the fault and which module it lost communication with, which is the diagnostic information needed to distinguish a failing TIPM from a wiring or ground issue that produces similar symptoms.

Common Mistakes When Buying an OBD2 Scanner for Jeep Wrangler

Buying a bidirectional scanner for a JL Wrangler without confirming Security Gateway Module compatibility. The JL Wrangler (2018 and newer) introduced the Security Gateway Module, which blocks all unauthorized bidirectional commands at the CAN bus level. A scanner that runs active tests on other FCA vehicles will be refused by the SGM on a JL and return an access denied error for every bidirectional command. The OBDLink MX+ includes a free AutoAuth subscription for SGM bypass. The Foxwell NT809BT and BlueDriver hold SGM bypass certification that allows bidirectional access without a separate subscription. Scanners not listed on FCA’s SGM-compatible device registry cannot send bidirectional commands on any JL model, regardless of their claimed FCA coverage.

Using a JK-era scanner on a JL Wrangler and expecting the same bidirectional access. The JK Wrangler (2007-2018) uses a TIPM-based architecture without the Security Gateway Module. A scanner that provides full bidirectional access on the JK, including TIPM circuit actuation and ABS motor tests, may provide read-only access only on the JL because the SGM blocks the same commands. Owners who upgrade from a JK to a JL and keep their existing scanner often discover this on the first bidirectional service attempt, specifically during throttle body adaptation or power window motor testing.

Skipping BMS registration capability when buying for a Wrangler 4xe. The 4xe runs two independent battery systems: the 12V battery for conventional electrical loads and the 17.3 kWh high-voltage battery for the electric drive motors. After replacing the 12V battery on a 4xe, BMS registration is required on both the conventional battery control module and the PHEV battery management module. A scanner that supports FCA bidirectional functions on the combustion side only cannot access the 4xe PHEV module. The Autel DS808S and Launch X431 PRO3 V5.0 include 4xe PHEV module access; the Foxwell NT630 Pro and Innova 5210 do not.

My Final Recommendations

If you own a 2018-plus Wrangler JL, JLU, or JT Gladiator and need full bidirectional access, the Foxwell NT809BT is the right first purchase. It handles the FCA AutoAuth gateway, wireless active tests, TCCM 4WD diagnostics, and TPMS relearn in one tool without requiring a physical bypass cable.

For 2007-2018 Wrangler JK owners who primarily need to read, understand, and clear codes with TIPM-specific context, the BlueDriver Bluetooth Pro covers everything at no annual subscription cost. JK owners who also need active tests should add the ANCEL DS500BT for EPB and actuator commands at budget price.

Wrangler 4xe owners who need cell-level battery data, Drive Motor Generator diagnostics, and ECU coding should choose the Autel MaxiDAS DS808S. For lift kit owners who swap wheels regularly, the Foxwell NT630 Pro is the dedicated TPMS specialist that handles full sensor programming without a dealership visit.
